Home > Products > 1.Tungsten carbide > YG6X tungsten carbide sealing ring of mechanical sleeve and seal

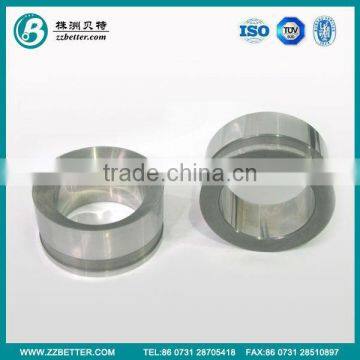

YG6X tungsten carbide sealing ring of mechanical sleeve and seal
- any port in china
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Standard or Nonstandard | Standard | Style | O Ring | |
| Material | Other, tungsten carbide | Place of Origin | Hunan, China | |
| Brand Name | zzbetter | Model Number | various |
Product Description
Specifications
1. carbide seal ring2.high wear resistance
3.high abrasion resistance
rrosion resistance
5.ISO9001
YG6X tungsten carbide sealing ring of mechanical sleeve and seal
1,Description
Tungsten Carbide seal Ring | Circulars have the characters of high wear resistance, high corrosion resistance and good compressive properties.It's widely used in petrochemical industries and other industries which call for high properties of the mechanical sealing rings or prats.
Good quality, advanced process, stable mechanical properties
high abrasion resistance and corrosion resistance.
Various sealing rings with complicated shape, either blanks or finished products can be provided.
2,Grade
Our material covers: WC-Co alloy, WC-Ni alloy, WC-Ni/Co alloy, WC-TiC-Ni/Cr alloy etc.
| Grade | Binder (Wt%) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
| Grade | Binder (Wt%) | Density (g/cm3) | Hardness (HRA) | TRS (≥N/mm²) |
| YN6 | 6 | 14.7 | 89.5 | 1460 |
| YN6X | 6 | 14.8 | 90.5 | 1400 |
| YN6A | 6 | 14.8 | 91.0 | 1480 |
| YN8 | 8 | 14.6 | 88.5 | 1710 |
