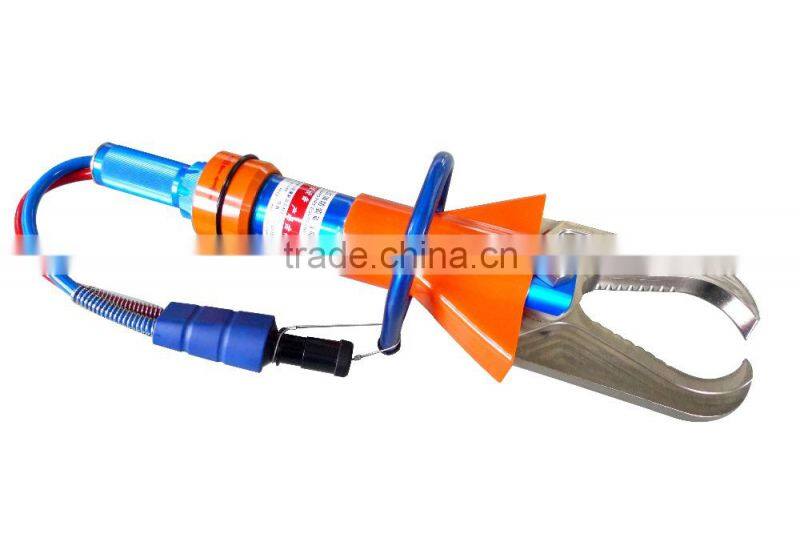

Real Rescue Operations Easier & Safer Rescue With Mono Coupling Hydraulic Cutter Spreader

Description

1. Hydraulic Cutter Spreader, as the most reliable rescue equipment for emergency rescue, is produced by Starye according to EN13204 standard;

2. Shearing blades of the hydraulic spreader cutter adopt High-quality Heat-treated tool steel, with surface anodized, good in wearing resistance;

3. Quick reset handle accelerates the rescue as fast as possible;

4. This hydraulic spreader cutter is multi-functional with shearing, expansion, squeezing and pulling functions. The multi-functional pliers can instead of a cutter and a spreader at the same time;

5. Whilst a hydraulic spreader cutter is designed for a particular application, a combination tool, or combi-tool as popularly referred to by the fire department, is also available which combines the cutting and spreading functions of separate tools into a single tool. In operation, the tips of the hydraulic spreader and cutter's blades are wedged into a seam or gap — for example, around a vehicle door and the device engaged.

Application

1. Vehicle extrication, earthquake disaster relief and accident rescue etc.;

2. Suitable for rescue operations maneuverable;

3. Unclenching the door and metal structure into deformation;

4. The hydraulic spreader cutter can cut metal structure, vehicle parts, pipeline and metal plates etc.

Features

1. This hydraulic spreader cutter can be driven by either engine pump or hand pump;

2. The manual control valve which drives the blades can also fix the cutting blades in any positions with self-locking function;

3. Big cutting capacity of this hydraulic spreader cutter as 325kN and spreading force as 60KN;

4. Twine type pipeline and couplers can also be changed into single coupler for a higher performance;

5. Hydraulic Cutter Spreader with 720bar working pressure and bigger capacity is also availabe.

Specifications
