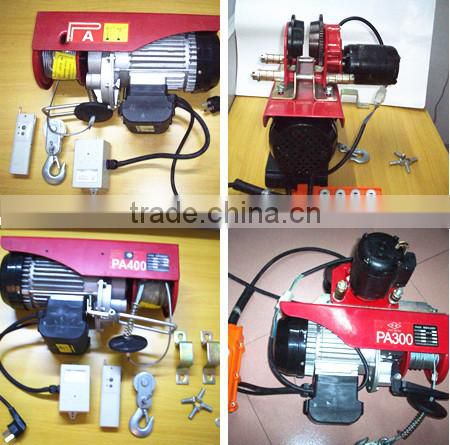

China hoist crane PA200 remote control mini electric hoist

 pa type mini electric hoist Description:

Name :Mini Wire Rope Electric Hoist ,

PA electric hoist,

small type electric hoist.

Description:

1 Lightweight & compact design allow mounting convenient.

2 When rope touches the limit arm, stop automatically.

3 Induction-motor stops when the rope is reverse waind.

4 Dynamic brake designs for both static and dynamic loading.

5 It operates on household power source.

6 Plug-in cords allow portability with easy.

7 360° universal joint saddle hook with safety latch.

• The emergency stop switch

• Upper limit function

• Thermal protection terminal

• Protection class IP54

• Insulation class B

• Group of mechanisms M1

• Work Duty: S3-25%-10min

• Rated Volt: 220/230V ~ 50Hz

• Rated Current: 2.0A

• Input Power: 1020W

• Lifting Weight: 250kg (Single-hook), 500kg (Double-hook)

• Lifting Height: 12m (Single-hook), 6m (Double-hook)

• Lifting Speed: 10m/min (Single-hook), 5 m/min(Double-hook)

• Diameter of wire rope: 4mm

• Tensile strength of wire rope>1870N/mm2

Application :The electric hoist we produce can be used in factories, mines, agriculture, electric power, construction building site, dock, and warehouse for installation of the machines, lifting the cargoes, loading and unloading the trucks.

Adopt urgent stop switch and reinforced breaking switch with position limit.Protection class up to IP54.

With thermal prevention device.

 We can provide not only amazing products,but also special ones designed at requests. We'll do our best to meet the need of customers.
