Home > Products > Mini electric hoist > Remote Control Garage Auto Shop Overhead Lift
Remote Control Garage Auto Shop Overhead Lift
- Tianjin Port
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Hebei, China | |
| Brand Name | JNDO | Model Number | PA Mini Electric Hoist | |
| Usage | Construction Hoist | Power Source | Electric | |
| Sling Type | Wire Rope | Maximum Lifting Weight | Depends | |
| Maximum Lifting Height | 12M | Lift Speed | Depends | |
| Certification | CE | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Remote Control Garage Auto Shop Overhead Lift
Application:
1. Used for lifting heavy goods and installing equipment. in the workshops of machinery factories and repair shops.
2. Used for lifting and stacking materials in material warehouse and goods yards.
3. Used for hoisting prefabricates and cement pipes in construction industry.
4. Used for lifting heavy goods in the warehouse of light textile factories ,workshop of hospitals, shops, market and food products factories.
5. Used for lifting heavy goods at the wharfs.

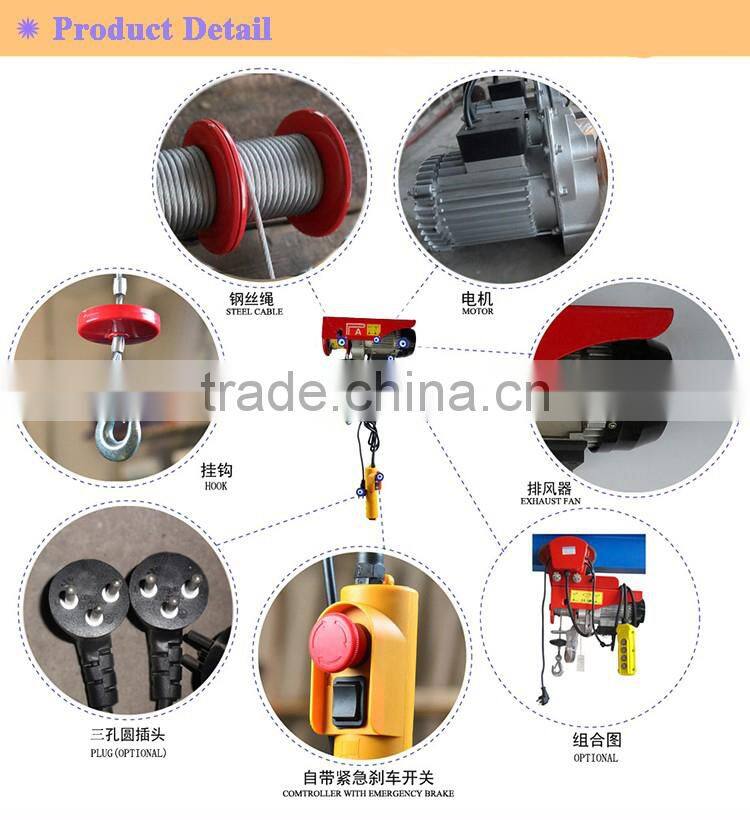

1.Excellent control characteristics, minimal setting force required, designed for one-handed operation.
2.Drop-forged, heat-treated suspension hook and load hook mounted on swivel steel balls with safety latches.

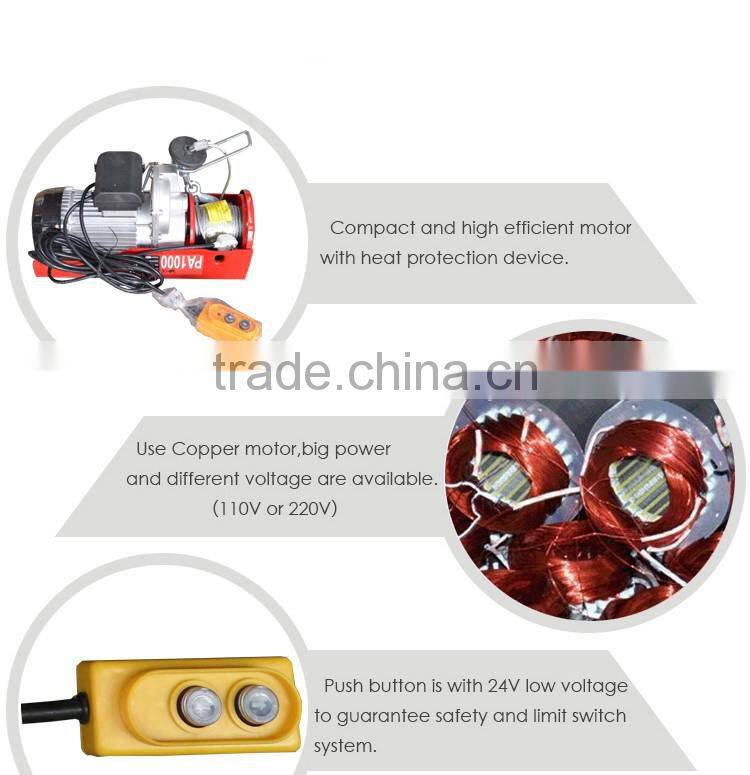

3.Motor insulation is B, magnetic single-phase. Double hook use, single hook use .
4.Caged roller bearings on drum center shaft .
5.Preventing torsion wire rope for more convenient usage.
6. Punching Steel shell, lightweight and strong.

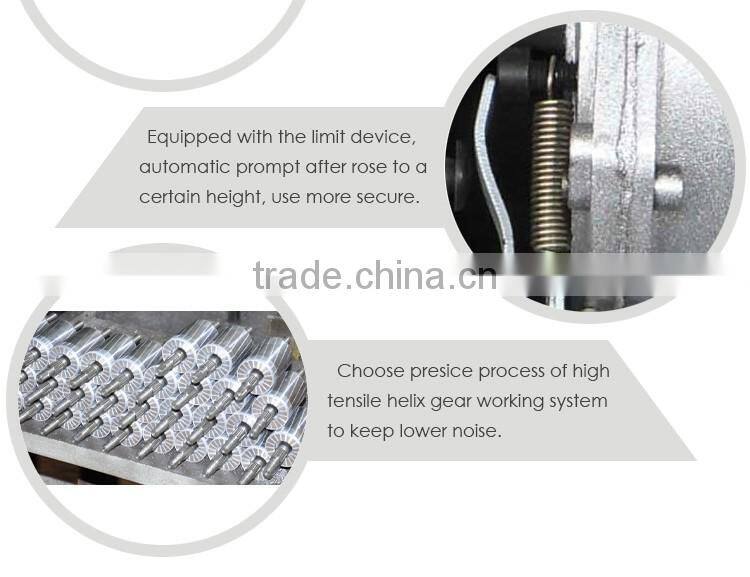

7. Can be achieved Upper location limit and Lower position limit .
| Model | Method of Use | Rated Volt (V) | Input Power (W) | Rated Capacity (KG) | Lifting Speed (m) | Lifting Height (m) | Qty/CTN PCS | Packing Size(mm) | G.W/N.W (KG) |
| PA200M | Single-Hook | AC 220/230V 50/60Hz | 480 | 100 | 10 | 12 | 2 | 38×32×25 | 22.5/22 |
| Double-Hook | 200 | 5 | 6 | ||||||
| PA250M | Single-Hook | 510 | 125 | 10 | 12 | 23/22 | |||
| Double-Hook | 250 | 5 | 6 | ||||||
| PA300M | Single-Hook | 600 | 150 | 10 | 12 | 23.5/23 | |||
| Double-Hook | 300 | 5 | 6 | ||||||
| PA400M | Single-Hook | 950 | 200 | 10 | 12 | 45×34×27 | 33/32 | ||
| Double-Hook | 400 | 5 | 6 | ||||||
| PA500M | Single-Hook | 1020 | 250 | 10 | 12 | 33.5/32.5 | |||
| Double-Hook | 500 | 5 | 6 | ||||||
| PA600M | Single-Hook | 1200 | 300 | 10 | 12 | 35/34 | |||
| Double-Hook | 600 | 5 | 6 | ||||||
| PA800M | Single-Hook | 1300 | 400 | 8 | 12 | 38/37 | |||
| Double-Hook | 800 | 4 | 6 | ||||||
| PA1000M | Single-Hook | 1600 | 500 | 8 | 12 | 1 | 54×25×32 | 32/31 | |
| Double-Hook | 1000 | 4 | 6 |
