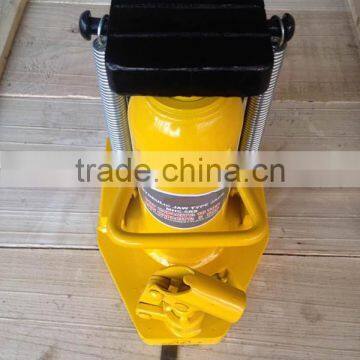

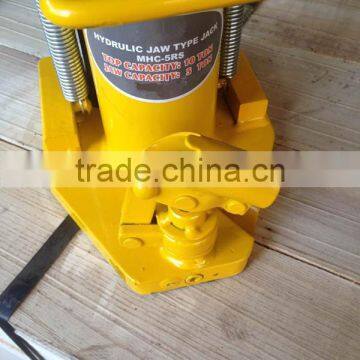

5,10,20,30,50T Portable Compact Structure Hydraulic Claw Jack
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Type | Hydraulic Jack | Capacity (Load) | 11-20T | |
| Max Height | 158mm | Min Height | 16mm | |
| Certification | CE | Place of Origin | Shandong, China | |
| Brand Name | JNDO | Model Number | MHC |
Product Description
Specifications
5,10,20,30,50T portable compact structure hydraulic claw jack1.Capicity: 5t-50t
2.Tested to 150% of rated capacity
5,10,20,30,50T portable compact structure hydraulic claw jack
Hydraulic Toe Jack
1,Capacity:5-50T
2,super quality
3.Carbon steel base with automatic welding makes stable quality.
4.Hydraulic bottle jack with stable quality, 100 degree high temperature test, static electricity painting for perfect look.
5,Chrome plated plunger with self-return resiste corrsion and extends life.
6, Tested to 150% of rated capacity keep it is safety used.
7,Claw jack is widely used in automobile manufacturing, foundry machinery, transportation equipment and etc. to carry out lifting,supporting of mechanical products.
8,All models work in upright or horizontal position where strength is required
Description of MHC Hydraulic jack:
1This series products have 5 specification ,MHC-2.5RS ,MHC-5RS ,MHC-15RS ,MHC -25RS .Widely used in machinery equipment, bridge construction, railway track of installation and maintenance, and transportation of heavy loading and unloading , automobile tractor repair,ect.
2 This series product is made of high quality steel, after heat treatment and welding, structure simple, easy operate , durable, high quality is stable, safe and reliable; Top and hook lifting combination, easy to low position operation, is a kind of widely used lifting tool.
3, This series product operating handle design for 180 degrees of rotation, according to different places, thus changing the Angle is more convenient to use.
4, Use the machine please pay attention to the follows .
a, The machine should put on a flat place when using , and avoid deflection .
b, It is strictly prohibit the lifting height more than the product requirement limit , or else leading to the Guide fall off from the machine.
C, Forbid the overload operation .
d, Don’t put your finger and feet below the object when using .
5,Before using keep the Guide lubrication ,keep the machine clean ,after use pay attention to put lightly ,not collision and arbitrary throws, if the bad thing occurs it will leading to damage and oil circuit malfunction .
hydraulic jack Main Parameters:
Model | Overall size (mm)
| Hook Mini height (mm) | Lifting height (mm) | Rated capacity (T) | Weight (kg) | |
TOP | HOOK | |||||
MHC-2.5RS | 210X140X232 | 16 | 115 | 5 | 2.5 | 11 |
MHC-5RS | 260X200X283 | 20 | 148 | 10 | 5 | 24 |
MHC-10RS | 295X220X322 | 25 | 158 | 20 | 10 | 36 |
MHC-15RS | 305X255X350 | 30 | 158 | 30 | 15 | 55 |
MHC-25RS | 340X285X350 | 50 | 158 | 50 | 25 | 75 |
Use the machine please pay attention to the follows .
a, The machine should put on a flat place when using , and avoid deflection .
b, It is strictly prohibit the lifting height more than the product requirement limit , or else leading to the Guide fall off from the machine.
C, Forbid the overload operation .
d, Don’t put your finger and feet below the object when using .
hydraulic jack Working area:
Used in factory, mine, agriculture, electricity, construction site, wharf, dock and other industrial field.
Hydraulic toe jack photo show:
Delivery: 10 days after recevied the deposit
Packing: Packaged by woven plastic cloth,electricals packed and other parts packed by high quality plywood crate.
We can provide not only amazing products,but also special ones designed at requests. We'll do our best to meet the need of customers.
