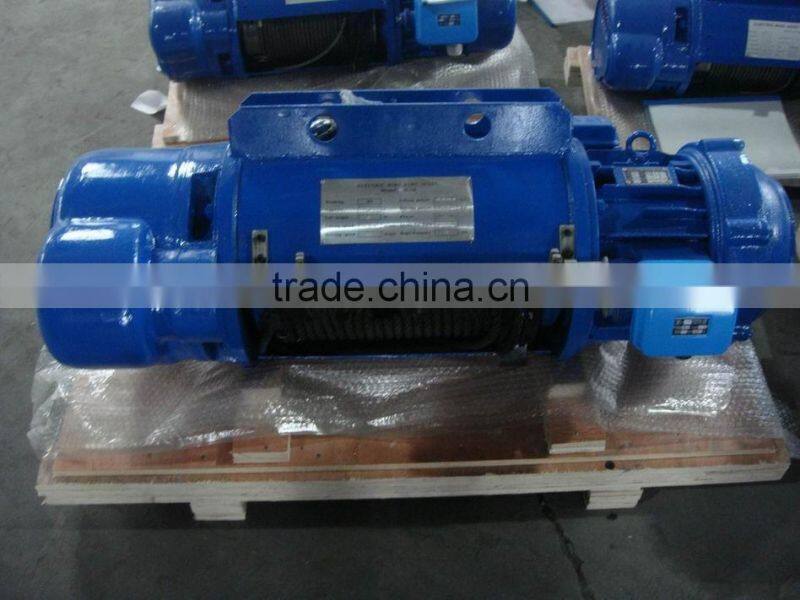

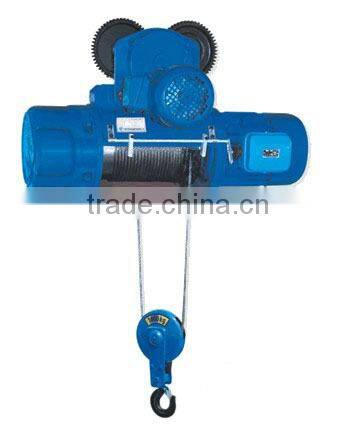

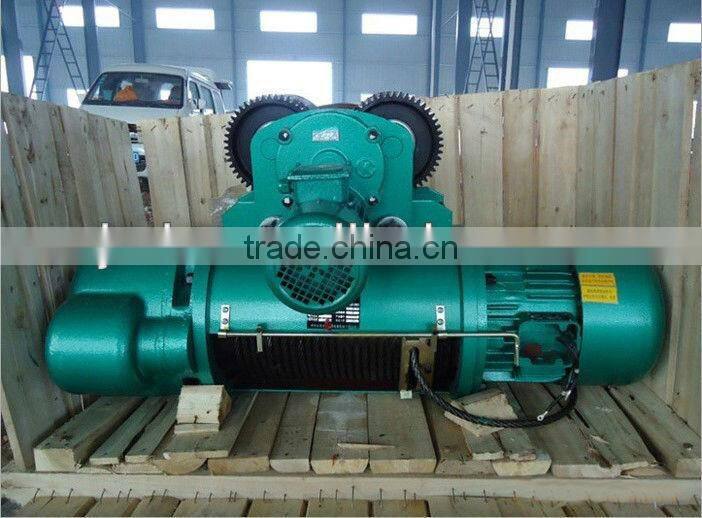

MD1 5ton Double Speed Wire Rope Electric Hoist

Electric wire rope hoist Brief description:

CD1,MD1 model wire rope electric hoist is a kind of light type lifting equipment. It could be installed on single

girder crane with hoist, overhead,gantry and jib crane. Modified could be used as a winch. So it is a commonly

 used lifting equipment in factory, mine, port, warehouse, cargo yard, shop etc, is a nessesary equipment to

improve working efficiency and labor conditions.

 The lifting speed of CD1 model electric hoist is common speed, it could satisfy common use requirements, MD1 model electric hoist operates two lifting speeds---ommon speed and slow speed. When working at slow speed, it could satisfy precise loading and unloading, sand box moulding, machine tool inspection and other precise working requirements. So the use MD1 electric hoist would be much wider then CD1 hoist.

It is equiped with compact structure, convenient adjustment, small volumn, light weight, heavy gravity, easy operation etc

Electric wire rope hoist Applications:

It can travel rotyation through the trolley hanging on the I-steel,and install on the single beam crane,jib crane and overhang crane to rise and fall the cargos.So it can be used in factories,mines,wharf,warehouse ,freight yards and shops and so on,which need lifting equipement for lifting heavy objects.Such as mining companies and railways,docks,warehouse .It is prohibited to manned.

 Advantsges of Electric wire rope hoist:

 1.Lightweight, small bulk and convenient operation.

 2.It can be adapted to overhead rails as well as in conjunction with many types of electric or manual cranes

such as the single-girder crane, the double-grinder crane, the cantilever crane and the gantry crane

 Safety Features of Electric wire rope hoist:

Fire stopper :Adjustment mechanical memory structure ,high sensitivity

Weight Limiting stopper:preventing  hook clashing the top,senstive reaction.Safe and durable ,easy to install and debug

Overload limiter:Preset related data according working condition ,show accurate weight value clearly.Modular,low power design.
