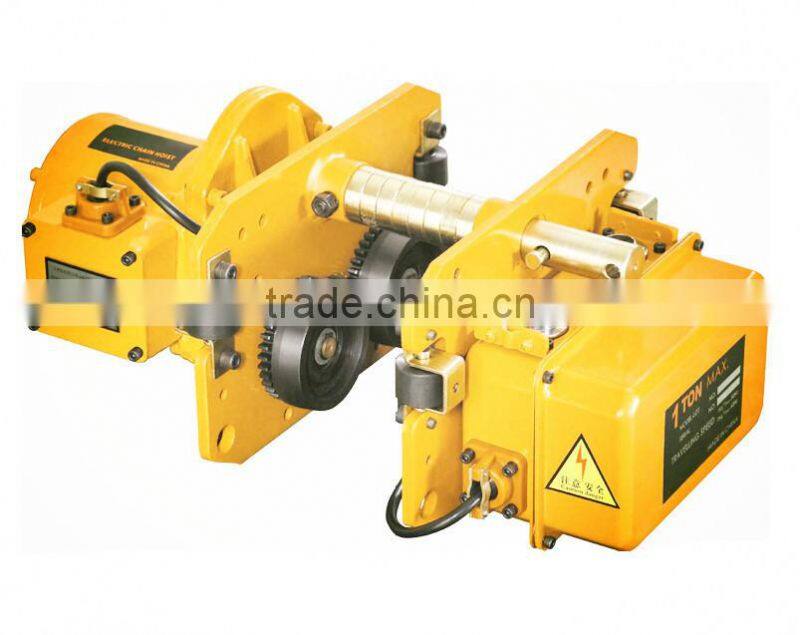

Hand Chain Electric Powered Trolley
- QINGDAO tianjin
- T/T Credit Card
You May Like
-
2013 2ton Crane Electric Trolley With Chain Block
-
2013 3ton Lifting Crane Electric Trolley With Chain Block
-
2013 Cheap Electric Beam Trolley
-
2013 Good Quality Electric Chain Trolley Made in China
-
Weight Lifting Trolley|beam Lifting Trolley|electric Beam Trolley
-
Electric Powered Cable Lifting Trolley
Product Details
| Place of Origin | Shandong, China | Brand Name | JNDO | |
| Model Number | PX |
Product Description
Specifications
electric powered trolley1.Light aluminum alloy shell
2.high heat dissipation
3.low noise & long service life
4Japan technol
hand chain electric powered trolley
1.Competitive price
2.Delivery in Time
3.High factor of safety
4. Durable.
Electric trolley is also called electric monorail car, its using function is similar to the hand trolley, but electric trolley saves more labor and more convenient. Electric trolley is motor as the power, four-wheel walking in the range of I-Beam. It can combine electric hoist and other hoisting tools to form one electric transportation driving, and this driving can be widely used in factories,mine,warehouses for installation, dispatching goods, equipment maintenance. The weight: 0.5 tons to 100 tons.
Electric trolley mainly is used in U Power, Ship, Automobile Manufacture, Construction, Highway, Bridges, Metallurgy, Mining, Slope Tunnel, infrastructural project of mechanical equipment.

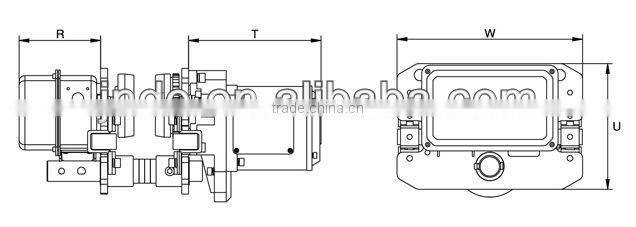

| Type | Capacity(Ton) | Unit(mm) | Speed 50Hz(m/min) | Motor(Kw) | Minimum radius of turn | l-Beam(mm) | |||
| W | U | R | T | ||||||
| DPC-0.5 | 0.5 | 315 | 212 | 142 | 231 | 12.2 | 0.12 | 0.7 | 52-153 |
| DPC-01 | 1 | 315 | 212 | 142 | 231 | 11 or 21 | 0.4 | 0.8 | 52-153 |
| DPC-02 | 2 | 325 | 220 | 142 | 231 | 11 or 21 | 0.4 | 0.9 | 82-178 |
| DPC-03 | 3 | 340 | 250 | 142 | 231 | 11 or 21 | 0.75 | 1 | 100-178 |
| DPC-05 | 5 | 400 | 291 | 142 | 231 | 11 or 21 | 0.75 | 1.5 | 100-178 |
| DPC-7.5 | 7.5 | 400 | 291 | 142 | 231 | 11 or 21 | 0.75 | 1.8 | 100-178 |
| DPC-10 | 10 | 500 | 371 | 142 | 231 | 11 or 21 | 0.75 | 2.0 | 150-220 |
We can provide not only amazing products,but also special ones designed at requests.We'll do our best to meet the need of customers.
