Serviceable Small 1ton Electric Chain Hoist
US$ 899 - 899
/ Piece
1 Piece(Min. Order)
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | JNDO | Model Number | HHBB | |
| Usage | Construction Hoist | Power Source | Electric | |
| Sling Type | Other, Chain, Chain | Maximum Lifting Weight | 50T | |
| Maximum Lifting Height | 20M | Lift Speed | 1-2.5M | |
| Certification | CE GS SGS | Warranty | 1YEAR | |
| After-sales Service Provided | No overseas service provided |
Product Description
serviceable small 1ton electric chain hoist
HHBB series electric chain hoists are the most famous producs of our company.The product has the traits of reasonable design,advanced structure,remarkable frame,small volume,perfect appearance,big tenacity easy maintenance and durablity ect.
Product Description
*** Features of 1ton electric chain hoist
- Motor brake: adopt advanced magnetic cone brake to provide reliable stopping.Chain guide: high quality design provides smooth and quiet guidign og the lifting chain
- Heavy duty motor: Squirrel cage parallel rotor motor; Cooling fins reduces the temperature of hoist and keep working; The IP 55 protection can withstand demanding enviroment.
- Load chain: Carburizing chain or FEC chain is heat-treated for long life and endures harsh conditions.
- Hook: It is hot forging with perfect strength that is hard to break. The operation safety of the lower hook is ensured by its 360 degrees rotation and safety tongue piece.

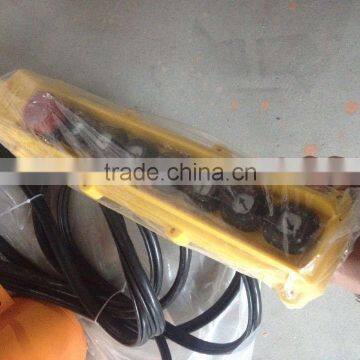

- Push button pendant: water-Proof and insulated, provides light and durable switching controls.
***Parameters of 1ton electric chain hoist
| Model HHBB | Capacity / T | Lifting Height M | Lifting Speed M/MIN | Lifting motor | Drive motor | |||||||||
| Power /KW | Rotational Speed R/MIN | Ph ase | Voltage /V | Frequency HZ/S | Power /KW | Rotational Speed R/MIN | Running speed M/MIN | Ph ase | Voltage V | Frequency HZ/S | ||||
| 01-01 | 1 | 3/9 | 6.8 | 1.5 | 1440 | 3 | 380/220 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 380/220 | 50/60 |
| 02-02 | 2 | 3/9 | 3.4 | 1.5 | 1440 | 3 | 380/220 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 380/220 | 50/60 |
| 2.5-01 | 2.5 | 3/9 | 6.8 | 3.0 | 1440 | 3 | 380/220 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 380/220 | 50/60 |
| 03-02 | 3 | 3/9 | 5.8 | 3.0 | 1440 | 3 | 380/220 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 380/220 | 50/60 |
| 05-02 | 5 | 3/9 | 2.8 | 3.0 | 1440 | 3 | 380/220 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 380/220 | 50/60 |

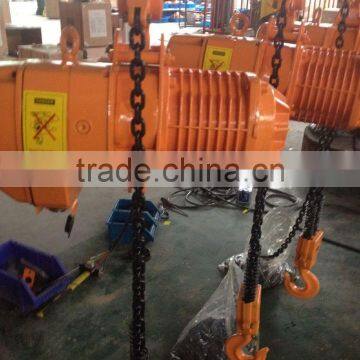

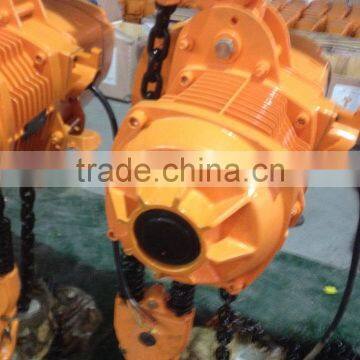

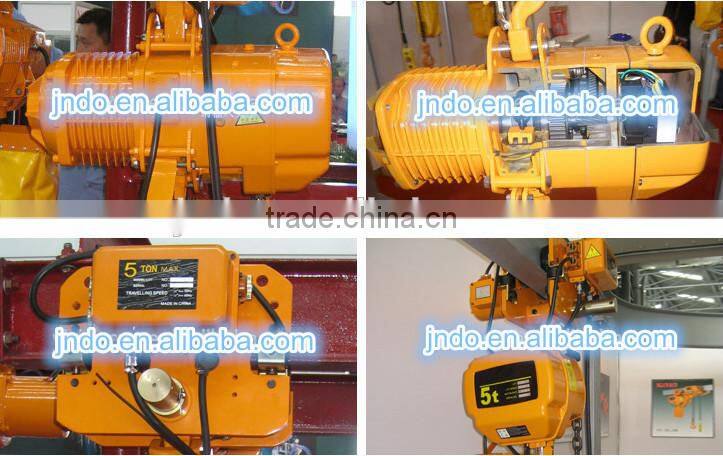

Picture Show

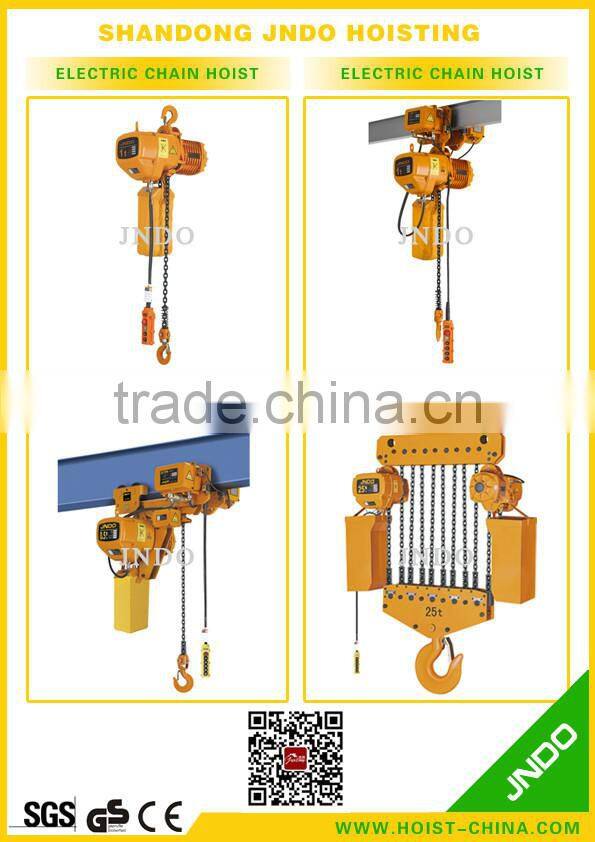

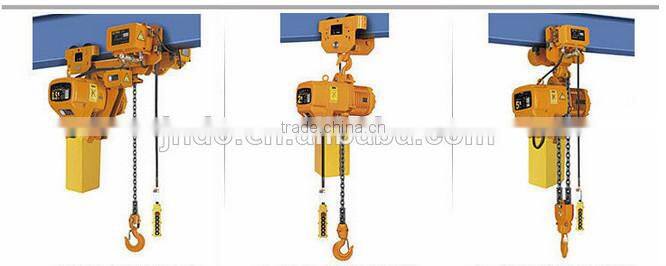

Three types of Traveling Electric Chain Hoist

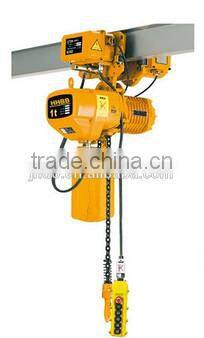

Low Headroom type with Manual Trolley with traveling trolley

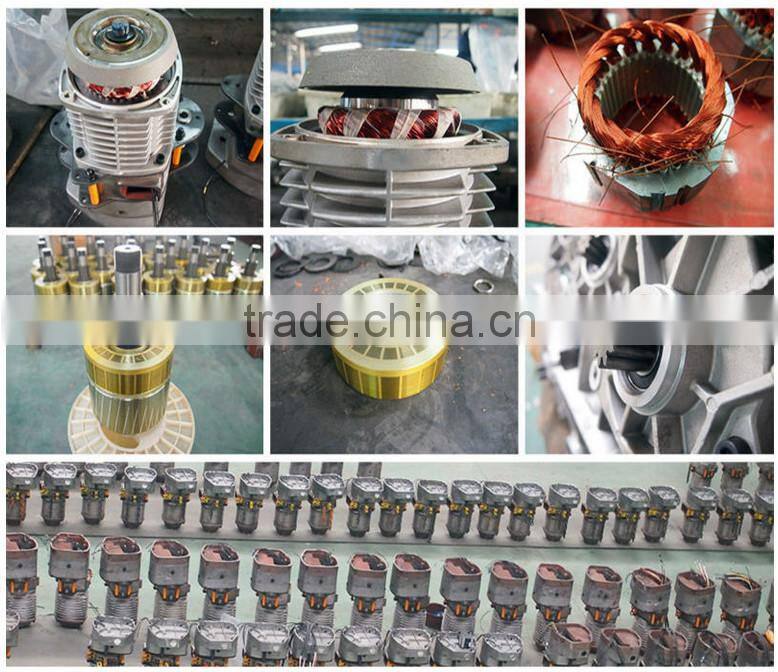

Components of Electric Chian Hosit

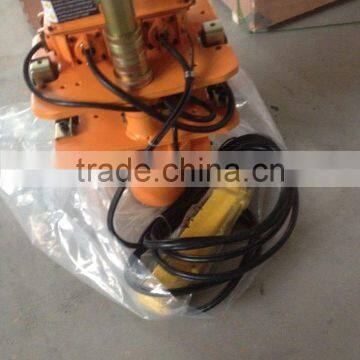

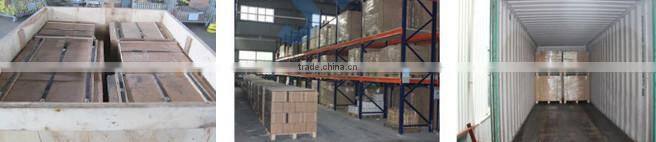

Packaging & Shipping
Related Products
Company Information
* Factory appearance
*Company teams

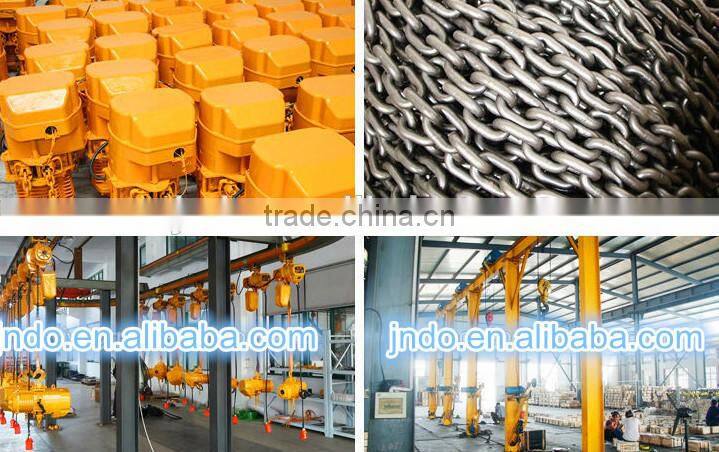

*Production workshop
*Canton Fair
