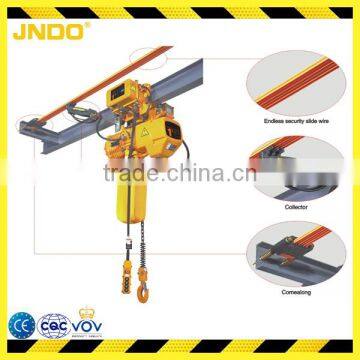

HHBB electric chain lifting hoist with imported aluminum alloy lifting chain

HHBB Electric Chain Lifting Hoist with Imported Aluminum Alloy Lifting Chain

JNDO electric chain hoist weight is generally 0.1 to 60 tons, lifting height of 3 to 120 meters.Its characteristics are: the performance of advanced structure, small size, light weight, reliable performance, convenient operation, wide application range, is very convenient for lifting heavy objects, loading and unloading work, maintenance equipment, lifting goods and it can also be installed on the hanging I-steel, curve track, jib crane rail and fixed lifting hoisting heavy weights.

JNDO electric chain hoist capacity: 0.5T,1T,2T,3T,5T,10T,25T,30T,20T,50T,60T.

                              Lifting height: 3-120M.

                              Power supply: 220-440V, 50/60Hz, 3P.

                                           Type: Fixed type/Moved type with manual trolley/Moved type with electric trolley.

Schneider Electric motor&Double brake system

30 minute rating and B grade insulation characteristics.

The electromagnetic brake and the mechanical brake are complete and mutually independent, which not only reduces the possibility of brake failure, but also enhances the brake safety and is favorable for cooling.Safety factor increased by 70% than similar electric chain hoist.

Japanese FEC100 carburizing chain

The hoist's chain is used in Φ7.1mm and Φ11.2mm with imported FEC100 ultra heat treatable aluminum alloy lifting chain, to ensure their safety and durability.

High strength forged hook

This hook will be only deformed but not broken in the abnormal condition, is the current domestic and foreign general hoisting special hook.

Operating Handle

36V safety voltage waterproof control switch.

( 24V/36V/48V specifications as required)
Can protect the operator to prevent electric shock damage.

Limit switch will automatically jump out after heavy pull the top,can protective gear and host.
