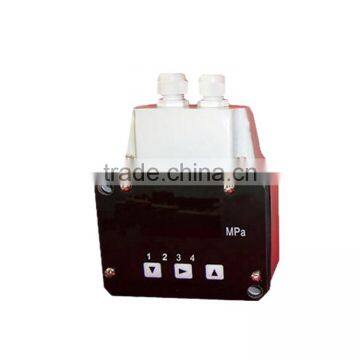

EPS1700 Digital pressure switch pressure sensor

Product introduction

EPS1700 provides in addition to the normal pressure relay operation functions outside of many additional functions, such as it can be used to realize the switch delay time to prevent rapid pressure spikes trigger does not need the switch signal, all set by the touch button. The device has the4 display and 4way switching output, to provide users with a modern electronic pressure relay has all of the advantages of. The 4switch and switch to point through the light touch key independent adjustment, for and implementation of surveillance system ( as is the case with PLCL connection ) provides an analog output (4-20mA or 0-10V ).

EPS1700used to frequent switching cycle of work, is the need to switch point accuracy simple and precise adjustment of constant or the ideal occasion choice. The device is mainly applied in hydraulic and pneumatic systems. Switching point / switch to point Switch point is defined as the set pressure value, reply is returned to the initial state of the switch output pressure value, switching point and recover the difference between the point is defined as the response delay. As the pressure rises when the switch point value of pressure relay output state is changed, the output state is maintained until the pressure falls below reply points (switch point is subtracted from the reply delay for both the recovery point ), relay output returned to initial state. Switch to point by setting the delay set. Function introduction . relay switch1-4switch with adjustable direction, when arriving at the switching point when open or closed ( normally open or closed function ); . on delay in0-90 second adjustment; Reply delay. Switching in0-90 second adjustment; Analog output (4-20mA or 0-10V ); Function lock ( to prevent the apparatus is improper operation ); The switch point setting range Relay switch point 1-4: 1.5% ~100% FS Relay switch back to1-4: 1% ~99% FS Reply delay or another way of saying1-4: 1% ~99% FS Note: FS ( full range ) = equivalent to the entire measuring range Installation EPS1700 is through the back side of the4 installation holes for installation, pressure connections must be through the micro hose mechanical decoupling, not directly connected with steel pipe, pressure connection from the bottom into the electrical connection from the top into the. In critical applications ( such as severe vibration impact ) EPS1700 must be installed on the rubber cushion. Electrical connections shall be in conformity with the relevant state regulations professional electrician, analog output connected usually uses the shield ( such as LYCY4* 0.5 mm2) pressure shell should be grounded through the nuts grounding. Other installation instructions, purpose is to should minimize electromagnetic interference such as: The line to take short. Using the shielding line. Cable shielding a professional must according to ambient conditions to reduce the interference to install . avoid direct close to the power consuming device or can cause interference to the electric or electronic device connection

    Depends on customers' orders. All goods are packed with a plastic bag with an outer carton and a wooden pallet( fumigation).

    Can be customized according to customer requirements

We provide hydraulic, lubrication, pneumatic technology consulting, system design, and the parts.

Could Raypoo offer OEM service?

Yes. Raypo is able to offer OEM with customers' brand name and trademark onto the product.

Do Raypoo products come with a warranty?

Yes.Raypoo offer 1-year guarantee without abusive usage on all purchases which begins with the bill of lading.
