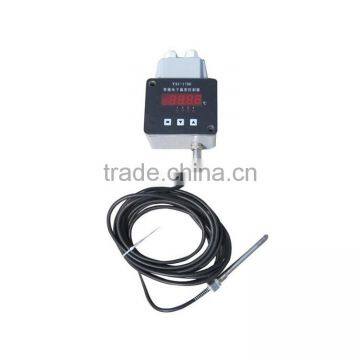

Hydraulic Power Station ETS1700 Industrial Temperature Relay

Product introduction

ETS1700 electronic temperature relay is mainly used in conjunction with the ETS100for the tank is installed, the device is provided in addition to the normal temperature relay operation functions outside of many additional functions, such as it can be used to realize the switch delay and change the relay direction, all set by light touch button to complete the.

The device has the4 display and 4way switching output, to provide users with a modern electronic temperature relay has all of the advantages of. The 4switch and switch to point through the light touch key independent adjustment, for and implementation of surveillance system ( such as PLCL connected ) provides an analog output (4-20mA or 0-10V ).

ETS1700is mainly used in the mediation of hydraulic, lubrication fluid control device of the heating and cooling process.

Switching point / switch to point

Switch point is defined as the temperature setpoint, reply is switch output return to original state temperature value, switching point and recover the difference between the point is defined as the response delay. With the increase of temperature when the switch point temperature relay output state changes, the output state is maintained until the temperature falls to below the return point ( minus the reply delay switch point for both recovery point ), relay output back to its initial state. Switch to point by setting the delay set.

Function introduction

. relay switch1-4switch with adjustable direction, when arriving at the switching point when open or closed ( normally open or closed function );
. on delay in 0-900 seconds between adjustment;
Reply delay. Switching in0.00-900.0 second adjustment;
Analog output (4-20MA or 0-10V );
Function lock ( to prevent the apparatus is improper operation )
The switch point setting range
Relay switch point 1-4: 1.5% ~100%FS
Relay switch to1-4:1% ~99%FS
Relay switch to delay1-4: 1% ~99%FS
Note: FS ( full range ) = equivalent to the entire measuring range

Installation

ETS1700 is through the back side of the4 installation holes for installation, pressure connections must be through the micro hose mechanical decoupling, not directly connected with steel pipe, pressure connection from the bottom into the electrical connection from the top into the.

In critical applications ( such as severe vibration impact ) ETS1700 must be installed on the rubber cushion.

Electrical connections shall be in conformity with the relevant state regulations professional electrician, analog output connected usually uses the shield ( such as LYCY4* 0.5 mm2) pressure shell should be grounded through the nuts grounding.

Other installation instructions, purpose is to should minimize electromagnetic interference such as:
The line to take short.
Using the shielding line.
Cable shielding a professional must according to ambient conditions to reduce the interference to install . avoid direct close to the power consuming device or can cause interference to the electric or electronic device connection Annex With the product provides attachment;
Outlet cable jacket;
.4mounting screw M5*20mm
Pentode joint (Series 618).
.3meters of wire, for ETS100( LIYCY4*0.25mm2)
Can provide optional attachment
Temperature sensor TSP100.
. sensor mounted protective sleeve TSP101( for tank installation )
. installation accessories:4mounted shock mount;4screw M5*6mm

      Depends on customers' orders. All goods are packed with a plastic bag with an outer carton and a wooden pallet( fumigation).

   Can be customized according to customer requirements

We provide hydraulic, lubrication, pneumatic technology consulting, system design, and the parts.
