Home > Products > Hydraulic Accessories > Press Hydraulic Hose
Press Hydraulic Hose
- shenzhen
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | raypoo | |
| Model Number | 6-50MM |
Product Description

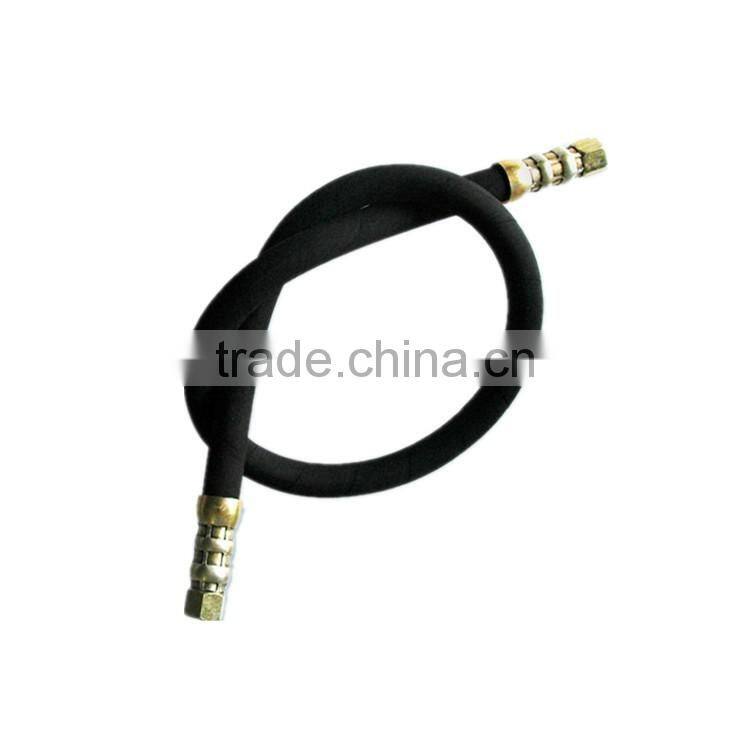

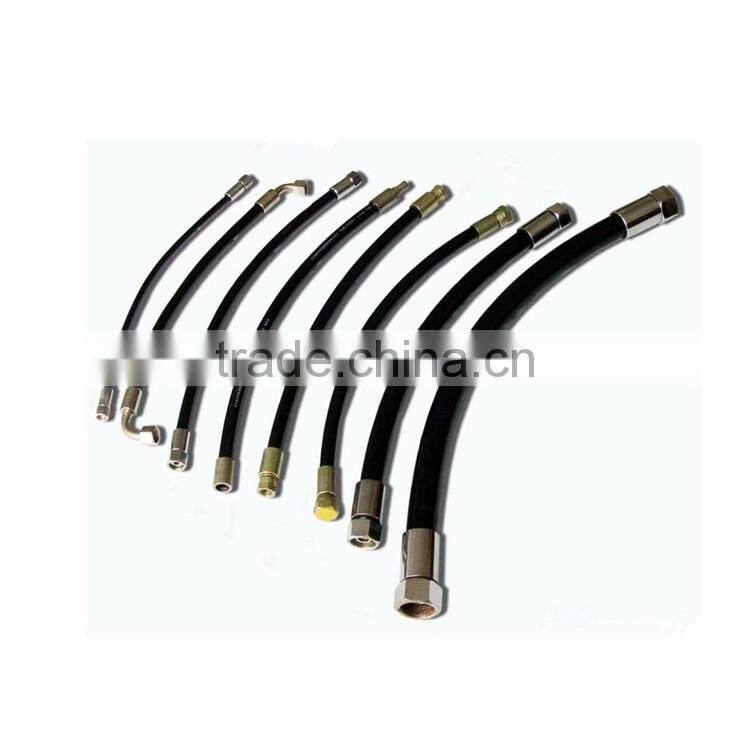

press hydraulic hose
1, the bending radius should not be less than the given, prevent damage hose skeleton or because of excessive tension, early damage.
2, according to the terms of use, the correct selection of hose varieties, specifications, do not misuse or substitute.
3, rubber hose used, pressure should be balanced to adjust, to avoid the sudden pressure increase and the damage to the pipe body.
4, the work site changes, should ground handling, can not be mopping the floor, so as not to scratch the glue, corrosion skeleton layer.
5, transporting corrosive liquid, after internal should be cleaned, prevent corrosion residues long tube, or choose the corresponding series products.
| number of plies* Size *pressure | Hose diameter mm | Outside diameter mm | Wire diameter mm | work pressure MPa  | The minimum burst pressure MPa | The minimum bending radius mm | The reference weight kg/m | |
| 1-5-21 | 5±0.5 | 12.7±0.8 | 9.5±0.6 | 21 | 63 | 90 | 0.25 | |
| 1-6-21 | 6±0.5 | 16 | +1.0  | 11.7±0.6 | 20 | 60 | 100 | 0.34 |
-0.8  | ||||||||
| 1-8-17.5 | 8±0.5 | 18 | +1.0  | 13.7±0.6 | 17.5 | 52.5 | 115 | 0.42 |
-0.8  | ||||||||
| 1-10-16 | 10±0.5 | 20 | +1.0 | 15.7±0.6 | 16 | 48 | 130 | 0.47 |
| -0.8 | ||||||||
| 1-13-14 | 13±0.5 | 24 | +1.2 | 19.7±0.8 | 14 | 42 | 180 | 0.64 |
| -0.8 | ||||||||
| 1-16-12 | 16±0.5 | 27 | +1.2 | 22.7±0.8 | 12 | 36 | 205 | 0.70 |
| -1.0 | ||||||||
| 1-19-10 | 19±0.5 | 30 | +1.2 | 25.7±0.8 | 10 | 30 | 240 | 0.84 |
| -1.0 | ||||||||
| 1-22-9 | 22±0.5 | 33 | +1.2 | 28.7±0.8 | 9 | 27 | 280 | 0.95 |
| -1.0 | ||||||||
| 1-25-8 | 25±0.5 | 37 | +1.2 | 32.2±0.8 | 8 | 24 | 300 | 1.09 |
| -1.0 | ||||||||
| 1-32-6 | 32±0.7 | 44 | +1.5 | 39.2±0.8 | 6 | 18 | 420 | 1.38 |
| -1.2 | ||||||||
| 1-38-5 | 38±0.7 | 50 | +1.5 | 45.2±0.8 | 5 | 15 | 500 | 1.80 |
| -1.2 | ||||||||
| 1-51-4 | 51±1.0 | 63 | +1.5 | 58.2±0.8 | 4 | 15 | 630 | 2.30 |
| -1.2 | ||||||||
| 2-5-60 | 5±0.5 | 15.0±0.8 | 11.2±0.6 | 60 | 150 | 90 | 0.40 | |
How are orders packed and shipped?
Depends on customers' orders. All goods are packed with a plastic bag with an outer carton and a wooden pallet( fumigation).
Can be customized according to customer requirements
Raypoo Service
We provide hydraulic, lubrication, pneumatic technology consulting, system design, and the parts.
Could Raypoo offer OEM service?
Yes. Raypo is able to offer OEM with customers' brand name and trademark onto the product.
Do Raypoo products come with a warranty?
Yes.Raypoo offer 1-year guarantee without abusive usage on all purchases which begins with the bill of lading.
Shenzhen raypoo is a manufacturer of hydraulic products and engineered solutions serving the fluid power market. The Company offers an engineering and manufacturing team capable of providing advanced technology in the design and production of unique fluid power components and electronic controls. The Company's involvement focuses its expertise on markets in which customers demand top quality, prompt delivery, high performance and responsive aftermarket support. The Company's products include hydraulic pumps, hydraulic motors, hydraulic valve valves controls manifolds, hydraulic cylinders,Non-standard hydraulic system,Industries that use these products include primary metals, machine tool, automobile, petroleum, construction equipment, chemical, plastic, glass, lumber, rubber and food. The Company strives to serve those markets requiring high technology and expertise where reliability, top performance and longer service life are needed. The products are sold as individual components or integrated into high performance applications.
Q.How to request a manufacturing quotation from Raypoo?
A.Give us a call or send us an E-mail with your purchase request.
Q.What are your quality control procedures?
A.Raypoo is equippedwith high-tech, advancedcomputerized and self-inspection machineries, manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason why Raypoo is recognized as on the world class quality level.
Contact Us
                - Shenzhen Raypoo Technology Co., Ltd.
 - Contact namevivian zxc Chat Now
 - Phone86-755-28530805
 - AddressADD:Building 3#, Liuguling industrial zone, Bantian town, Longgang district, Shenzhen, China, Shenzhen, Guangdong
