dth hammer with high quality
- 5000 Piece / Pieces per Month
- Chinese port
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | ZM | |
| Model Number | made to order | Type | Drill Bit | |
| Machine Type | Drilling Tool | Certification | Other, ISO9001 | |
| Material | Carbon Steel | Processing Type | Casting | |
| Use | Well Drilling |
Product Description
Specifications

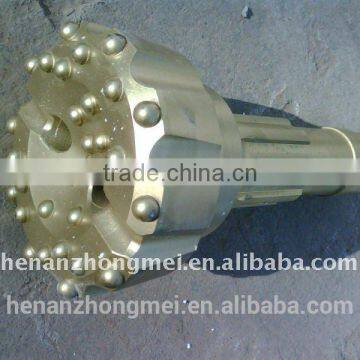

1.first class hammer drill bit
2.best heat treated
3.durable impact parts
4.high speed,most stable performance
Description of rock drill hammer:
Usage: Drill holes from 105mm to 152mm.
Matched products: 76mm drill rods with API 2 3/8"REG BOX
bits with COP44.DHD340A,Mission40,QL40,SD4,XL4 shanks
Application fields: all kinds of fields, such as mining, quarry, tunnel, bridge, construction and etc., but extremely exellent to use with casing tubes during casing drilling.
Features: 1.high impact power with low frequency
2.non-return flushing
3.Reliable performance
Techincal Parameters
Description |
Product Code |
Bit Shank |
Thread Connection |
Outer Dia. (mm) |
Length Without Bit (mm) |
Weight (kg) |
Flat Wrench (mm) |
Rec. Hole Size (mm) | |
TH98 | 230000 | DHD340 COP44 | API 2 3/8" REG PIN | 98 | 1045 | 38 | 65 | 105-138 | |
Working Pressure (bar) |
Impact Frequency at 17 bar |
Normal Axial Pressure (kN) |
Rec. Rotation Speed (r/min) |
Air Consumption (m³/min) | |||||
10.5-24 | 27 | 7.1 | 30-50 | 10.5bar | 17bar | 24bar | |||
7 | 12 | 17.2 | |||||||
Hammers Matching To Other Bits | ||||||||
Description | Product Code | Bit Shank | Thread Connection | Outside Dia. (mm) | Length Without Bit(mm) |
Weight (kg) |
Flat Wrench (mm) | Rec. Hole Size (mm) |
TH98-QL4 | 230001 | QL4 | API 2 3/8" REG PIN | 98 | 1041 | 37 | 65 | 105 -138 |
TH98-SD4 | 230002 | SD4 | 1040 | 37 | ||||
TH98-Misson40 | 230003 | Misson40 | 1042 | 37 | ||||
TH98-MACH44 | 220005 | MACH44 | 1041 | 37 | ||||
TH98-COP42 | 230008 | COP42 | 1045 | 38 | ||||
TH98-XL4 | 237000 | XL4 | 1040 | 37 | ||||
Working Pressure (bar) | Impact Frequency at 17 bar |
Normal Axial Pressure (kN) | Rec. Rotation Speed (r/min) | Air Consumption (m³/min) |
10.5-24 | 27 | 7.1 | 30-50 | 10.5bar | 17bar | 24bar |
