High Quality Core Barrels/drillings Tools

Specifications

High quality core barrels/drillings tools

product description:

Used in loose, broken stratigraphic or coal extraction and protect rock (mine) heart of drilling tools.

Double core tube and tube has outer pipe, rinses through joint between the internal and external tube water flow to the bottom of the hole, protecting cores from rinses washouts. Double core tube has double motion and single movement two kinds. Double motion and core tube is internal and external core tube following bit and drill stem rotation, it in no serious loose or broken strata.

Single movement double core tube internal and external tube has bearing isolation, pipe outer pipe driven only pick up bit rotation, and broken rock tube does not rotate, avoid to core friction, vibration, etc., with mechanical damage, so it in serious loose fractured formations.these, can be well protected cores.

Use double deck core tube take core, bits need to use wall thickness of the alloy drill or diamond bits.

Due to the rock drill contact surface area increased and the lip use double deck core tube than ordinary core tube drilling efficiency to reduce. In the ledge, coal, in order to guarantee rock (mineral) heart take rate, rules must be use double deck core tube coring. More complex double core tube, except to finish single movement, in addition, aluminum, steel tube placed plastic or qualitative buckled half close tube, have a better protection of the core role.

Double core tube card broken cores and seal block within the next port, the core tube by the drill is placed in the core card fault device (fern, card spring, claw reed, etc.) to finish.

Series information:

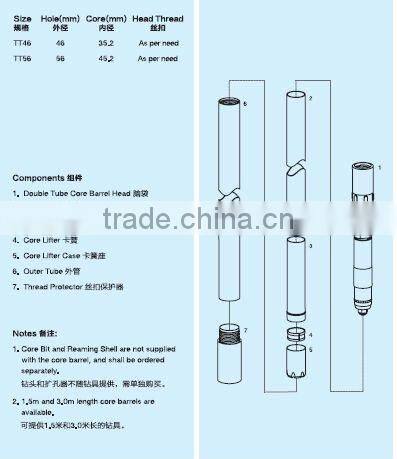

1.TT series double tube core barrels

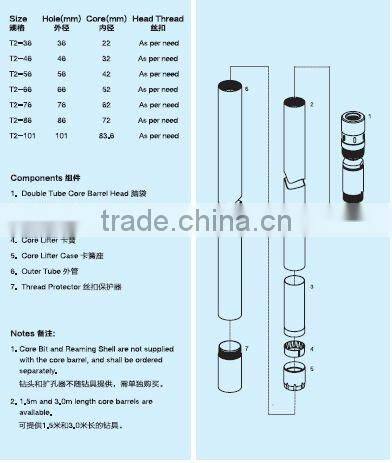

2.T2 series double tube core barrels

3.T6 series double tube core barrels

4.LTK series double tube core barrels

5.WF series double tube core barrels

6.WG series double tube core barrels

7.WM series double tube core barrels

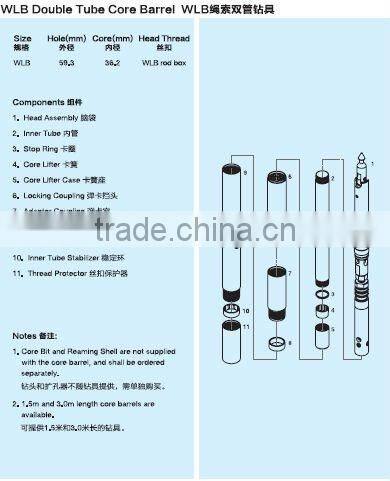

8.WLB double tube core barrels

9.WLN double tube core barrels

10WLH double tube core barrels

11WIP double tube core barrels

12.Chinese atandard double tube core barrels

13.Chinese atandard wireline double tube core barrels

14.JET-type reverse circulation double tube core barrels

15.MLC series core barrels

16.WLP3 triple tube core barrel

17.Bseries single tube core barrels

18.WG series single tube core barrels

19.Chinese atandard single tube core barrels
