PP PE electrical cable pipe machine
- 1 Set / Sets per Month
- Shanghai port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | Pipe | |
| Plastic Processed | PE | Screw Design | Double-screw | |
| Automatic Grade | automatic | Place of Origin | Jiangsu, China | |
| Brand Name | SAIOU | Model Number | SO electrical cable pipe machine | |
| Voltage | optional | Power(W) | optional | |
| Dimension(L*W*H) | optional | Weight | 15ton | |
| Certification | CE ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

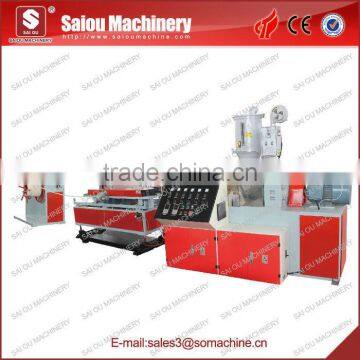

PE Electric Cable Spiral Pipe Machinery
This electrical cable pipe machine is mainly used to produce PE spiral pipes which are largely used as protecting sleeves of optic or electric cable, and they are increasingly used in fields of electricity, telecom, post activities, constructions of express way, port, etc.
These pipes are characterized by high intensity and tenancy, erosion resistance, constant shape and easy transportation and execution, etc. They can be processed and bent into long pipes with various radians. Owing to these advantages, they are very popular with clients engaged in many fields.
Features of production line:
Dedicated single-screw extruder is especially used for producing polyolefin products, and the specialized separating type mix-melting screw possesses features of high-speed extrusion and plasticization, etc.
The pipe die head is designed in standard, and the reasonable flowing path ensures smoothness of the inside and outside walls of the pipe. The way of assembling the die head is designed according to the client’s requirement, which saves much room.
Both scientifically designed copper spiral sizing sheath and the powerful inhaling vacuum device contribute to high extrusion of the pipes.
The tank is made of stainless steel, and automatic controller is used to control the liquid level. The peculiar spraying nozzle brings about effective cooling and the motor ensures longitudinal movement and three-dimensional adjustment in terms of the directions of upward, downward, left and right.
The special sizing and cooling mode enable the production line to produce pipes whose diameter range is from 25mm to 200mm, at a speed of 0.8to 1.5 meters per minute.
SAIOU did export business since 2006,so we have the certifications which suit for shipping our products:plastic crushing washing drying machine, plastic pelletizing machine, plastic pipes production line,shredders ,all include our machines.And we also have quality certification.
Our machines export to USA, RUSSIA,BULGARIA,CHILE,MALAYSIA,CAMBODIA,VIETNAM,KOREA,MEXICO,INDIA,BANGLADESH etc, too much places.
- Film package: we used simple package suit for shipping.
- Wooden package: If you want to wooden package, you should paied the extra cost.
Do you know our service?
The machine inspection before delivery in SAIOU MACHINERY When you come to our factory .Check everything is it ok .
Free of charge of some necessary spare part.
One year guaranteeof all the machines running , if any problem ,we will bear. Of course if the machines after one year ,you also can ask for the technical guidance.
1-2 technical engineers will be come to your factory to installation and commissioningthe machines and train your workers if you need.
We accept 30% TT down payment, 70% TT or LC at sight before delivery.
Film packing or plywood packing suit for sea shipping.
Zhangjiagang Saiou Machinery Co., Ltd. is an enterprise specializing in researching and producing plastic machinery.
SAIOU MACHINERY was set up since 2001, with various quality, competitive advantage products, and good after-sale service. we are the market leader in plastic machinery market. Our products are very popular with people at home or abroad, So we have ever been exported to many countries, such as, Canada, Mexico, Chile, Egypt, Slovakia, Dominican Republic, Indonesia, Bulgaria, Saudi Arabia, Libya etc.
Advanced equipment, mature techniques and strict testing system guarantee high quality products. Saiou Machinery trust our principle of “QUALITY IS OUR CULTURE” Saiou would like to cooperate with you for a longer business in near futures..
Welcome to SAIOU MACHINERY! We are always here.
