Pppe Corrugated Pipe Extruder Machine
- Shanghai
You May Like
-
Extrusion Machine Recycle pe Corrugated Pipes
-
pe Single Wall Corrugated Pipe Extrusion Making Machine
-
Plastic Extrusion HDPE Corrugated Tube Extrusion Machine
-
Prestressed Plastic (HDPE) Corrugated Pipe Extrusion Machine
-
Plastic Spiral Pipe Production Machines
-
Plastic Double Wall Corrugated Pipe Making Machine
Product Details
| Condition | New | Type | Pipe Production Line | |
| Pipe Material | PE | Application | Other, corrugated pipe extruder machine | |
| Production Capacity | 100-300kg/hour | Place of Origin | Jiangsu, China | |
| Brand Name | SAIOU | Model Number | SO corrugated pipe extruder machine | |
| Voltage | 380V | Power(W) | 50-200KW | |
| Dimension(L*W*H) | 40*3*3meters | Weight | 5T | |
| Certification | CE | Warranty | 1YEAR | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.pppe corrugated pipe extruder machine2.small diameter from 16-63,63-120,120-250mm
3.Profesional manufactory .
pppe corrugated pipe extruder machine
We are the professional manufactory to do small diameter in Zhangjiagang city ,we have more then ten years experience,and our machines improved day by day.

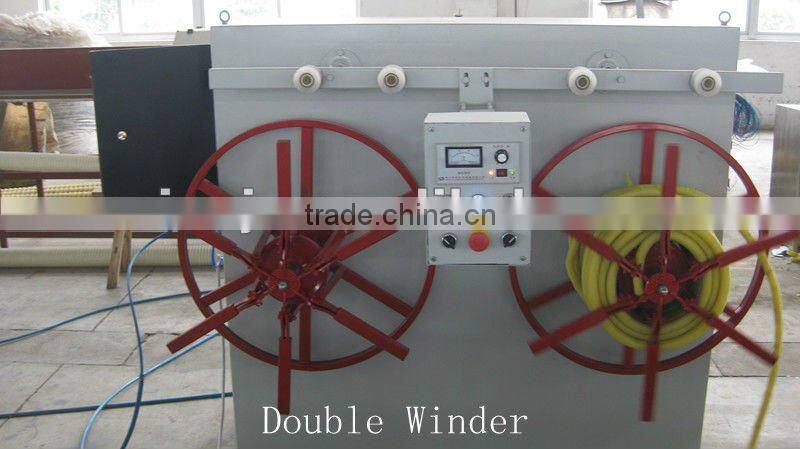

PE/PP/PVC Single Wall corrugated pipe extruder machine consists of Extruder, Mold Blocks, Corrugated Forming Machine, Cooling Equipment, Counting Machine and Auto winding system. It can continuously produce many kinds of diameter single wall corrugated pipe in high speed.
Application: This kind of pipe owns the features of high temperature resistance , anti-erosion , antiabrasion and high strength . The pipe can be ued ass stuffing tube for electrical appliance, stuffing tube for automobile, engineering works, lamps and lanterns, automatic instruments and meters, etc. which has a great demand in present-day market.
Advantages: Our special designed screw and special structure mould can protect the screw and barrel from easy-abrasion and give an easy forming process.
Model | SJ-90/30 | SJ75/30 | SJ-65/30 | SJ-45/30 |
Screw diameter(mm) | ø90 | Ø75 | ø65 | ø45 |
L/D | 30:1 | 30:1 | 30:1 | 30:1 |
Output(kg/h) | 200 | 150 | 100 | 40 |
Total power(kw) | 120 | 100 | 80 | 50 |
Pipe range(mm) | ø110-ø200 | Ø65-ø110 | ø16-ø75 | ø8-ø50 |
Haul off speed(m/min) | 10 | 10 | 10 | 15 |
Capacity annually(1okm) | 150 | 150 | 150 | 150 |

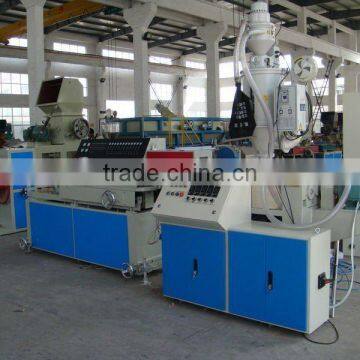

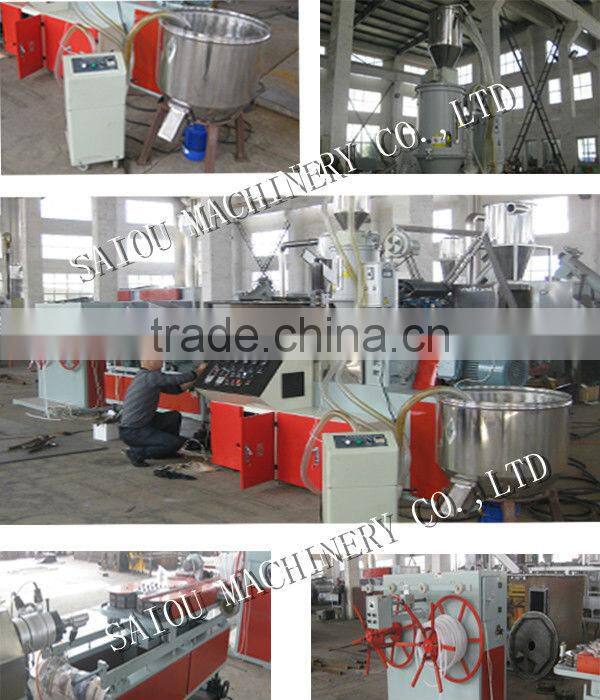

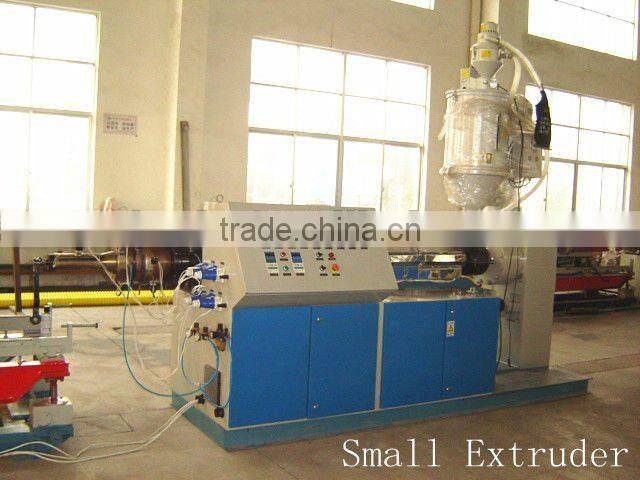

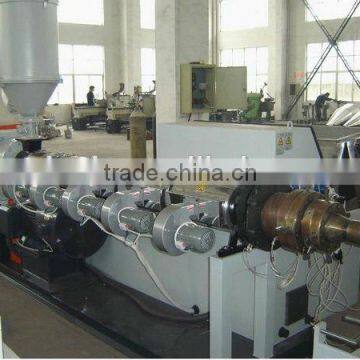

Machine's Picture:
If you need more specification of small diameter specifications ,please contact with us directly.

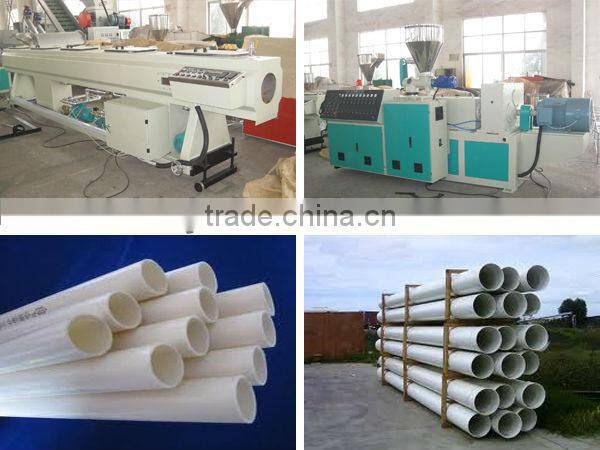

1) PVC pipe extruder machine with different diameters.
2)PE corrugated pipe machine with different diameters

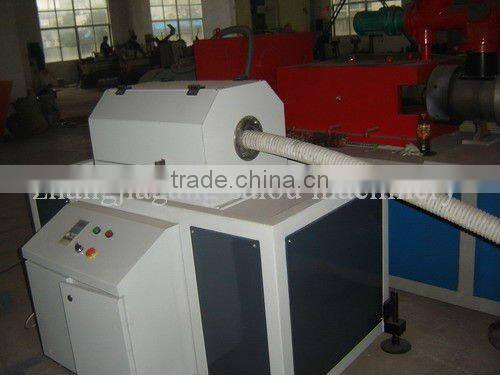

3) pipe perforating machine
4)PVC mixer machine.

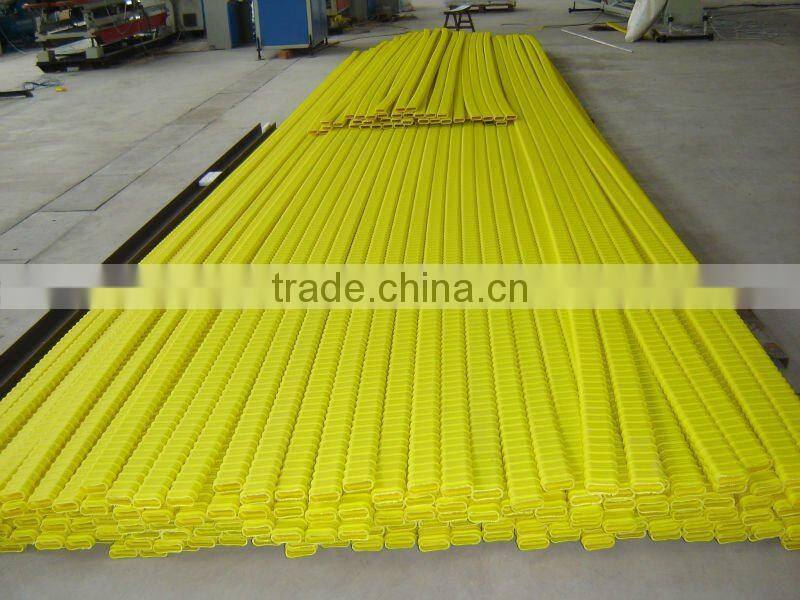

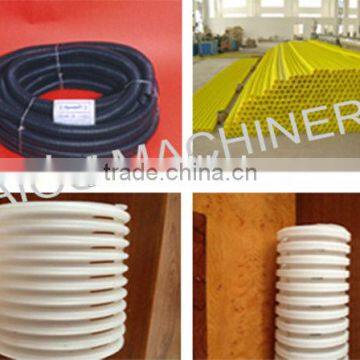

5) plastic PE Flat pipe production line (pipes sample)
