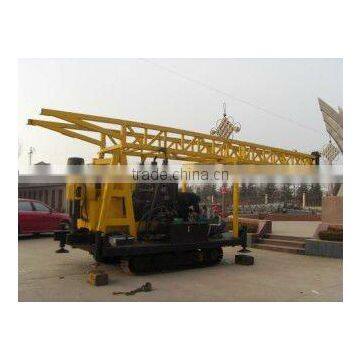

water well drilling rig with SPT sampler
- FOB Qingdao
- T/T
You May Like
-
HF120W trailer type rotary drilling rig, also can with with air compressor
-
High drilling efficiency! High power! S400 trailer-hitched concrete core drilling machines
-
HF128A hydraulic rotary drilling rig max piling depth 56m piling diameter 600-1600mm engineer oversea service ok
-
rotary trailer type drill rig for piling foundation
-
High drilling efficiency hydraulic rock drilling rig mobile drill rig
-
Best Seller for one year in Southeast Asia,High Quality boring machinery for civil engineeringHF100Y
Product Details
| Condition | New | Type | Other, water well drilling rig | |
| Place of Origin | Henan, China | Brand Name | Hanfa | |
| Model Number | HFD-3 | Usage | Water Well |
Product Description
Specifications
drilling rig1.high efficient
2.hydraulic, crawler chassis device
3.easy operation, free maintenance
4.certificate:ISO9001
water well drilling rig with SPT sampler
1.Application of water well drilling rig
water well drilling machine is mainly applied to water well drilling, geological general investigation and exploration, road and tall building basic exploration, kinds of hole in concrete structure, river levees, roadbed grouting hole drilling and direct grouting, and earth central air conditioner,ect.
2.Features and Advantages of water well drilling rig
1. water well drilling rig equiooed with crawler chassis device, easy ti move and speed fast. the crawler chassis 's material
system is very resistant steel mill
2. Hydraulic oil pressure feed device, improve drilling efficency
3. Hydraulic chuck, can complete no-stopping rotating
4. Presssure gauge dispay the condition of bottom drilling hole
5. Drilling mast controlled by hudraylic cylinder, imporve the efficiency
6. Diesel engine adopt the electric starter, to reduce the labor intensity
3. Technical Parameter of water well drilling rig
Drilling depth | m | 100 250 300 600 |
Open hole caliber | mm | 300 200 150 75 |
End hole caliber | mm | 75 |
Drilling rod | mm | Φ60 |
Drilling angle |
| 90°-65° |
Spindle | ||
Spindle forward speed | r/min | 30-1050 |
Spindle reverse speed | r/min | 29-137 |
Spindle stroke | mm | 560 |
Spindle inner diameter | mm | 96 |
Spindle lifting capacity | KG | 6000 |
Hoist | ||
Single line lifting speed | m/min | 0--45 |
Hug floodgate belt width | mm | 90 |
Tightrope caliber | mm | 14 |
Hoist single line lifting capacity | KG | 3000 |
Reel caliber | mm | 200 |
Reel cubic measure | m | 30 |
Mud pump | ||
Horizontal Triplex BW-250actuator | ||
Displacement | L/min | 250 |
|
|
|
Work pressure | Mpa | 7 |
Water inlet caliber | mm | 70 |
Water to exit caliber | mm | 50 |
Oil pump | ||
Duplex gear oil pump CBF-F63/25 | ||
Front displacement,pressure |
| 63L/min 20Mpa |
Behind displacement,pressure |
| 25L/min 20Mpa |
Drilling rig Power | ||
Diesel engine | Hp | 76HP |
Electric motor | KW | Y180L-4 55KW |
More information about our machine, welcome to contact us.
