Steel Core Drill Bit/Hollow Drill Bit/Oil Rig Drill Bit
- qingdao
- T/T
You May Like
Product Details
Place of Origin | Henan, China | Brand Name | Hanfa | |
Model Number | 100-500mm | Type | Drill Bit | |
Machine Type | Drilling Tool | Certification | AISI | |
Material | Stainless Steel | Processing Type | Casting | |
Use | Well Drilling |
Product Description

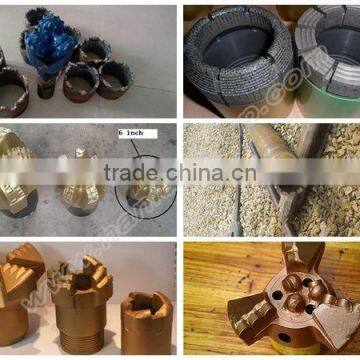

Steel Core Drill Bit/Hollow Drill Bit/Oil Rig Drill Bit
Steel Core Drill Bit/Hollow Drill Bit/Oil Rig Drill Bit
1,Application:
1,Suit for drilling medium to medium-hard formations.
2,Evolute asymmetrical blade cutter design and balanced bit load so that bit whirl is prevented .
3,Composite gage protection and low torque design improve rate of penetration .
4,CFD hydraulic balance design results in better bit cleaning and cutting removal .
5,Combined utilization of high performance PDC compacts significantly prolongs bit life
Higher nozzle counts and/or fixed ports to best serve cleaning,cooling and cuttings evacuation requirements with available hydraulic flows.Allows for higher flow rates with minimal increase in pump pressure.
Feature:Diamonds are impregnated in the matrix behind the PDC cutters
Benefit:Increased footage drilled in abrasive applications
2.details:
Bit type | Main bit size(mm) | Rock coefficient | |
PDC core drill bit | Single pipe | 75/54.5 94/74 113/89 113/109 153/129 | 1-18 |
Two-pipes | 75/54.5 94/68 | ||
PDC center drill bit | Concave 3 wing bit | 60 75 94 113 133 | 1-18 |
Arc pillar
| 60 75 94 113 133 | 4-18 | |
Many wing scraper | 60 75 94 113 133 133 153 173 190 215 | 1-6 | |
PDC Indexable drill bit | 153/94 153/113 190/153 190/113 | 1-18 |
Model | 118,152,215.9,244,311,445 |
Type | all kinds and size PDC bits |
Applicable | water well, oil field, construction, geothermal, directional boring, and underground foundation work |
Formation | sticky, soft, medium hard, hard formation |
blade | 4,5,6,7,8,9 |
Packing | wooden box |
Payment Term | T/T |
MOQ | 1 Piece |
Supply Ability | 1000 Pieces/month |
Delivery Time | within 7-15 work days |
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market.Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig,core drilling rig,DTH drilling rig,rotary drilling rig,engineering drilling rig, hydraulic underground drilling rig, full hydraulic directional drilling rig,etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
HANFA GROUP have exported to more than 60 countries, our customer applaud the manufacture quality.We welcome the people who come from different parts of the world to visit our factory and inspct our products. Even if the cooperation is not successful, We are glad to make friends with you.You will feel that you just like came to your home when you arrive at HanFa Group.
HANFA have participated in China, kazakhstan, Chile, Africa, Canada and other countries large-scale exhibitions, the products were praised by local people.HANFA was interviewed by local TV many times.On the day of the exhibition,countless order has been signed successly.
