Shredder -Refuse Derived Fuel (RDF)

                        Shredder -Refuse Derived Fuel (RDF)

HC solid waste shredders are used to shred municipal solid waste, bulky waste, industrial waste, bottle waste,special hazardous waste, medical waste, food waste, electronic waste, waste of paper mill, biomass, waste tires etc. It reduces the dimensions of waste through cutting, breaking and tearing, even hard to shred wastes, such as carpets, mattresses and plastics etc. can be easily shredded.

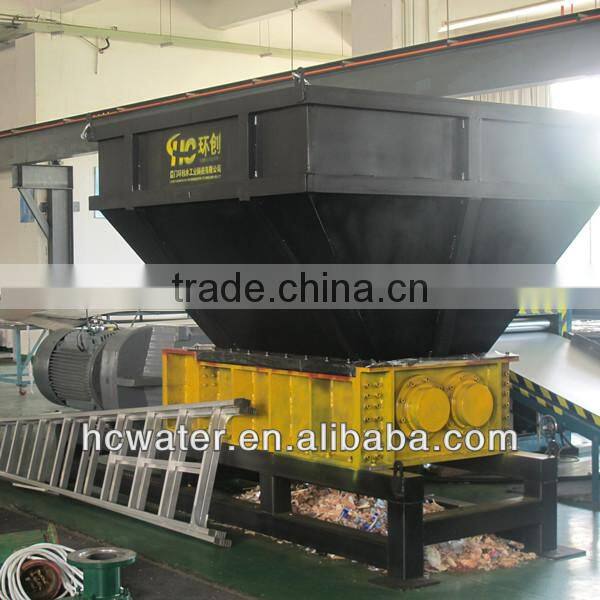

HC solid waste shredder mainly includes double shafts cutters group, shell, gearbox, reducer, motor, PLC cabinet, input hopper and equipped with installation frame and other accessories to insure working reliably.

Controlled by PLC, the power from the motor buffered by the reducer actuates the driving shaft. Then the driving shaft actuates the driven shaft so that two groups of cutters equipped in the driving shaft and the driven shaft rotate in opposite directions to shred solid waste.

Solid waste shredder crushes various kinds of solid waste like rag, glass, paper,

wood, articles for daily use, empty can, residues, small pieces of brick, rubber products, string,

hose, leather products, plastic products supplied evenly from conveyor directly to ≤20mm

small particles. All components of the horizontal type crusher are designed to meet working 24

hours continuously and achieve the longest service life in the worst environment.

 Product Detail:

1. Low speed, high torque, low noise, high throughput
2. Wide range of applications, excellent cutting performance
3. Sturdy, Wear-resistant, Reliable, Long lifetime
4. Renewable cutters with harden alloy steel
5. Patented bearing sealing system
6. Overload protection, Reversible rotary
7. Siemens motor, PLC control automatically
8. Less downtime, low operation cost, easy maintenance
9. Customized shredding solution

10. Double shafts design, working continuously. Cutters and gaskets are separable, not overlay by some pieces of cutters together or integral one.

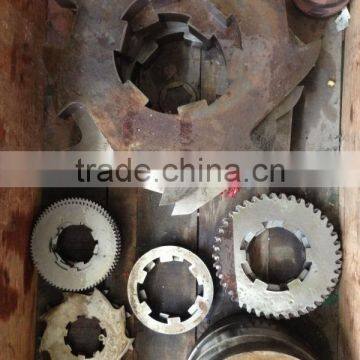

11. The cutters & gaskets are made of alloy steel 4130 with surface harden evenly with hardness not less than 45~50HRC.
