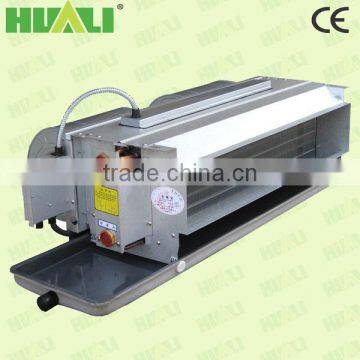

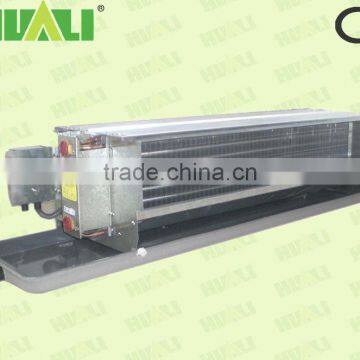

Horizontal concealed water ceiling fan coil unit for water chiller / heat pump

Material

Panels with surface coating and super strong water proof and anti-dust / anti-corrosion capabilities.
which offer superior water proof, anti-dust, and anti-corrosion properties,

and will never become rusted even operating in dark and humid environments for prolonged time.

Electric Motor
Uses a China-made electric motor specially supervised by Huali Group during manufacturing

and uses the imported self-lubricating NSK bearing, each motor goes through precise balance

calibrations to ensure stable operation, quietness design, and longer useful life.

Energy Saving and Comfort
A proper distance between fins is designed based on wet working conditions,

resulting in a product that is not prone to formation of water film, offers mild wind of air,

and fully meet the comfort needs of human body.

Three-shift human-caring wind speed design that both saves energy consumptions and offers the desired comfort.

Optimized Structure
Adopting the two-way diversion groove and low-position diversion port bevel design to ensure smooth flow of discharge water,

plus the antibiotic nanometer process treatment on the surface that can inhibit the growth of bacteria.

Unique upper and lower throat opening design that can effectively change the pattern of air flow of

outlet wind, reduce the air resistance, and decrease the noise by 3dB or more.

Complete Functions
The unit can offer multiple functional options as the user requires, for example,

can be equipped with high static pressure unit, a water condensing tray that is longer or shorter than

the standard size, an optional air return chamber, or an optional bottom air return or rear air return

mode.

 Coling capacity: 2.3KW to 14KW(7500btu-47000btu);
Heating capacity: 3.2KW to 22KW(11000-76000btu);

1) Compact structure design with thickness of 260mm only to save space;
2) Air flow may be 340 to 2380 stere per hour;
3) Low noise with stable running;
4) The motor can be dismantled from the return outlet for maintains at the season changing period;
5) Fresh air intake can be pre-made in return air box;
6) Condensed water tray can be extended, if required, to ensure collecting the water and it can be made of stainless steel or galvanization steel plate;
7) Four-pipe type is available for consideration;

Shenzhen Jinhuali Technology Co.,Ltd. is a modern large enterprise, which integrates technology, industry and trade. It is a professional enterprise that provides central A/C, refrigeration plant, eletromechanical device, electric equipment and electronics, as engineering design and installation service. HUALI takes an area of over 100,000m2  with an asset of more than 100 millions and empolyee of more than 500 persons, and its has 5 branch companies in the rest of China.
