Fan Coil Unit 60hz,horizontal Ceiling Fan Coil Unit,hot Selling

FOB Price

US$ 70 - 245 / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other, Air Conditioner Parts, Fan Coil Unit	Application	Commercial
Certification	CE	Place of Origin	Guangdong, China
Brand Name	Huali	Model Number	HLC~34HC-238HC

Product Description

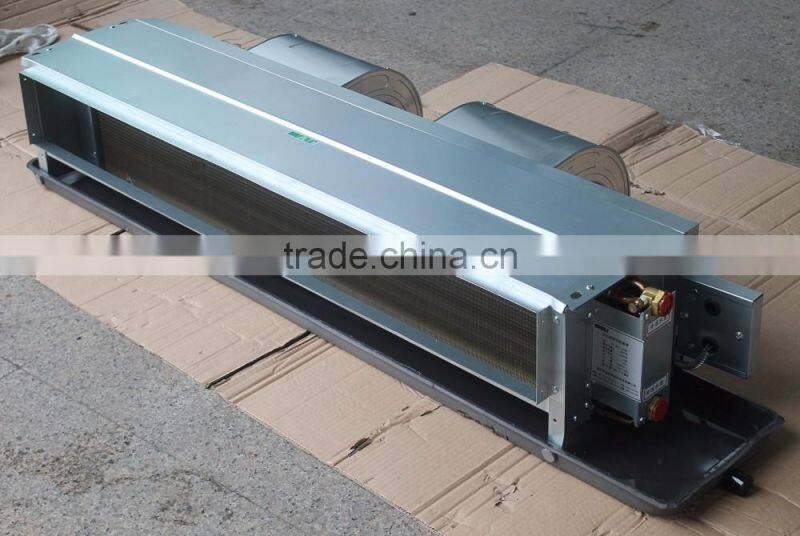

Fan coil unit 60hz,horizontal ceiling fan coil unit,hot Selling

Horizontal Concealed Fan Coil Unit
ModelHLC~			34HC	51HC	68HC	85HC	102HC	136HC	170HC	204HC	238HC
Air flow (m³/h)	High speed		340	510	680	850	1020	1360	1700	2040	2380
	Medium speed		255	383	510	638	765	1020	1275	1530	1785
	Low speed		170	255	340	425	510	680	850	1020	1190
Cooling capacity	High	W	2247	3146	4146	5056	5955	7758	9657	11601	13965
	High	BTU	7669	10737	14150	17256	20324	26478	32959	39594	47663
	Medium	W	1620	2440	3290	4120	4850	6550	8190	9730	11580
	Medium	BTU	5529	8328	11229	14062	16553	22355	27952	33208	39523
	Low	W	1310	2010	2650	3320	3900	5300	6610	7860	9350
	Low	BTU	4471	6860	9044	11331	13311	18089	22560	26826	31912
Heating capacity	High	W	3251	4697	6189	7747	9491	11997	14732	18162	22137
	High	BTU	11096	16031	21123	26441	32393	40946	50280	61987	75554
	Medium	W	2350	3520	4530	6040	6850	9260	11740	14140	16360
	Medium	BTU	8021	12014	15461	20615	23379	31604	40069	48260	55837
	Low	W	1620	2470	3130	4170	4740	6500	8180	9710	11290
	Low	BTU	5529	8430	10683	14232	16178	22185	27918	33140	38533
Surplus pressure of outlet (Pa)	Normal		0 or 12
Surplus pressure of outlet (Pa)	High static pressure		30 or 50
Cooling water temperature			7-12°C
Hot water temperature			40-60°C
Power supply			AC220V/50Hz
Heat Exchanger	Type		2.2mm copper pipes covered into aluminum fins, fin pitch 2.2mm
	Water supply kg/h		324	482	655	814	936	1278	1602	1915	2178
	Water resistance kPa		30	30	30	30	40	40	40	40	50
	Working pressure		1.6MPa
Low static pressure FCU		Input power w	37	52	62	76	96	134	152	189	228
Low static pressure FCU		Motor power w	10	16	20	25	30	20×2	25×2	30×2	40×2
High static pressure FCU	Static pressrue 30Pa	Input power w	44	59	72	87	108	156	174	212	253
	Static pressrue 30Pa	Motor power w	12	20	25	30	40	25×2	30×2	40×2	50×2
	Static pressure 50Pa	Input power w	49	66	84	100	118	174	210	250	300
	Static pressure 50Pa	Motor power w	16	25	30	40	50	30×2	40×2	50×2	60×2
Fan motor quantity			1	2	2	2	2	3	4	4	4
Noise dB(A)	Low static pressure		≤37	≤39	≤41	≤43	≤45	≤46	≤48	≤50	≤52
	High static pressure 30Pa		≤40	≤42	≤44	≤46	≤47	≤48	≤50	≤52	≤54
	High static pressure 50Pa		≤42	≤44	≤46	≤47	≤49	≤50	≤52	≤54	≤56
Pipe	Inlet/outlet water pipe		3/4 "internal thread
Pipe	Condensation water pipe		3/4" external thread
Dimension		L mm	780	880	980	1080	1180	1480	1680	1780	1880
		W mm	500	500	500	500	500	500	500	500	500
		H mm	260	260	260	260	260	260	260	260	260
20GP container loading quantity			325	290	260	236	216	172	152	143	135
40GP container loading quantity			666	591	531	482	441	351	309	292	277
Main materials
Aluminium thickness:0.014mm, Copper tube thickless:0.35mm, Galvanized sheet: 1mm, Packing: Carton

Note:

1. Cooling: Indoors DB 27°C,WB 19.5°C; Chilled water inlet/outlet temp. 12°C/7°C.
2. Heating: Indoors DB WB 21°C, heating water inlet&outlet temperature 60°C/50°C;
3.The noise level based on: background noise 11.5Db(A) semi-anechoic room.
4. Water resitance refers to that of rated water flow volume;
5. Input power refers to that of High speed air flow;
6. Above parameters are for your reference to model choice of FCU with cooling and heating; Heating energy of one row is 40% of three rows';   Low static pressure air flow volume loss: 10%, high static pressure air flow volume loss: 20%.
