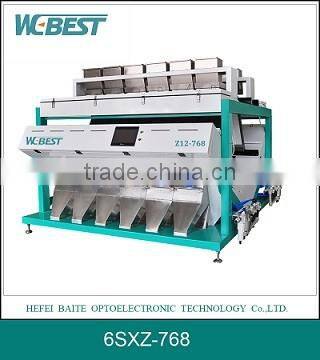

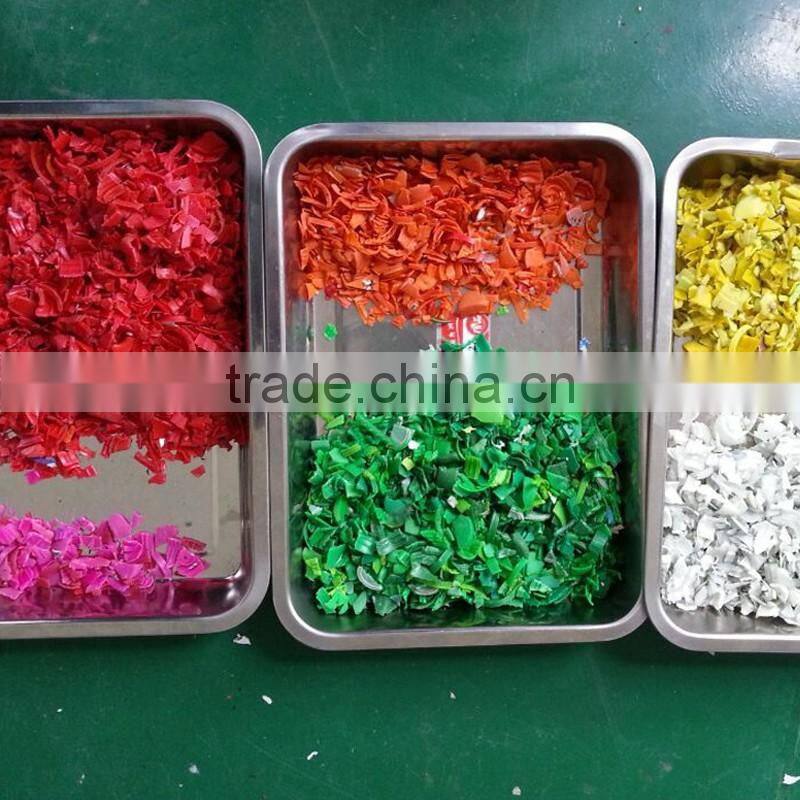

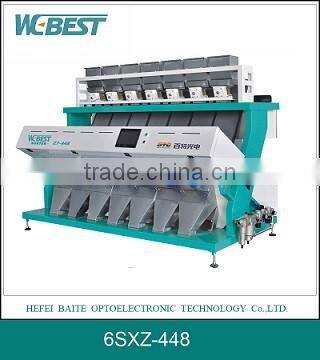

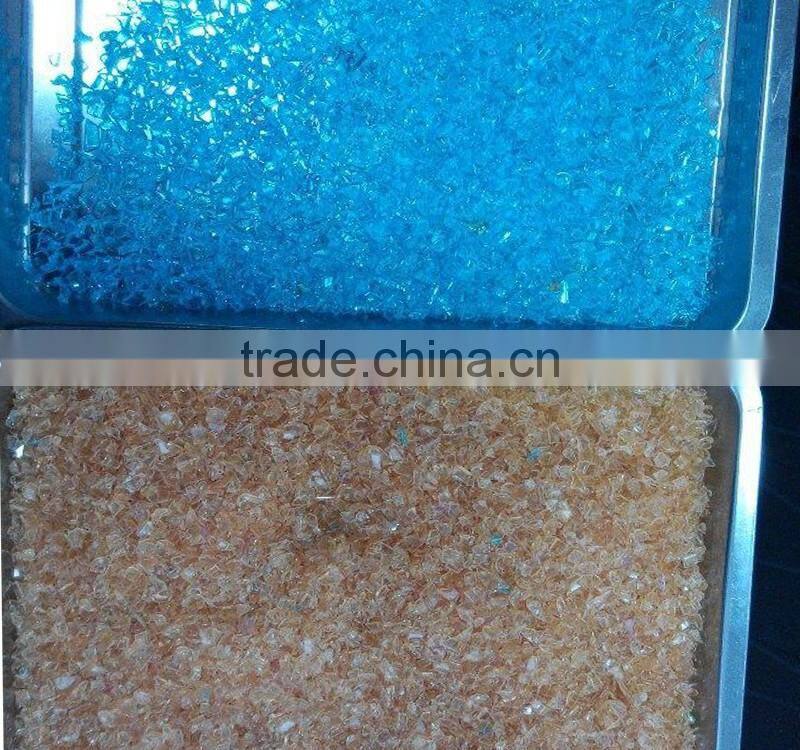

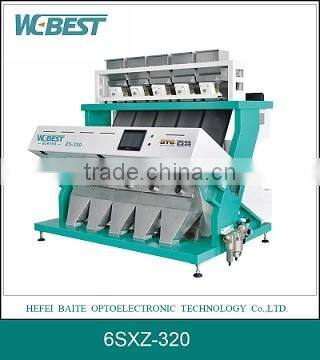

High Quality Plastic Color Sorter for PET Flake Color Sorting

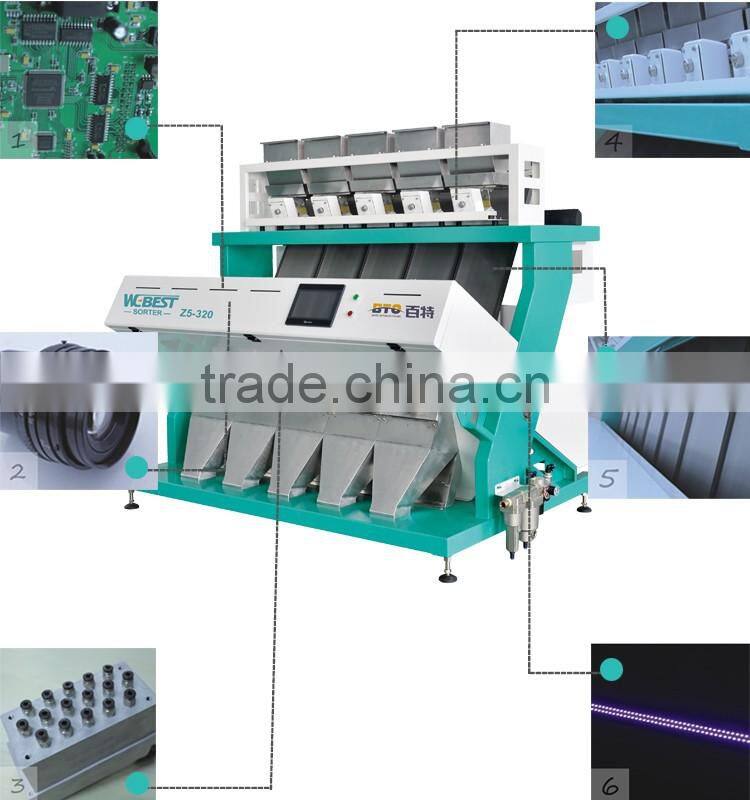

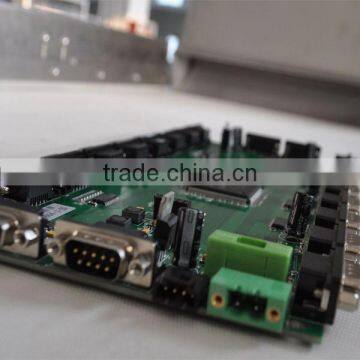

1.  Image processing system and algorithm
DSP+FPGA international leading processing technology, multi-modes complex algorithm combining color and space, providing “color sorting + shape selecting” function for different materials, free setting of multiple modes, arbitrary selection of thousands of materials.

2.  Camera image acquisition system
Imported high precision camera lens, guarantee the accuracy of the image is clear.

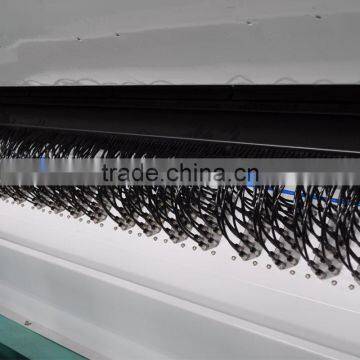

3. Unique self-ejecting nozzle and valve drive mode
Applying specialized high speed air valve with high action response frequency, low power consumption and longer service life;
Reducing air consumption with faster response speed, more accurate striking, small carryover and large output.

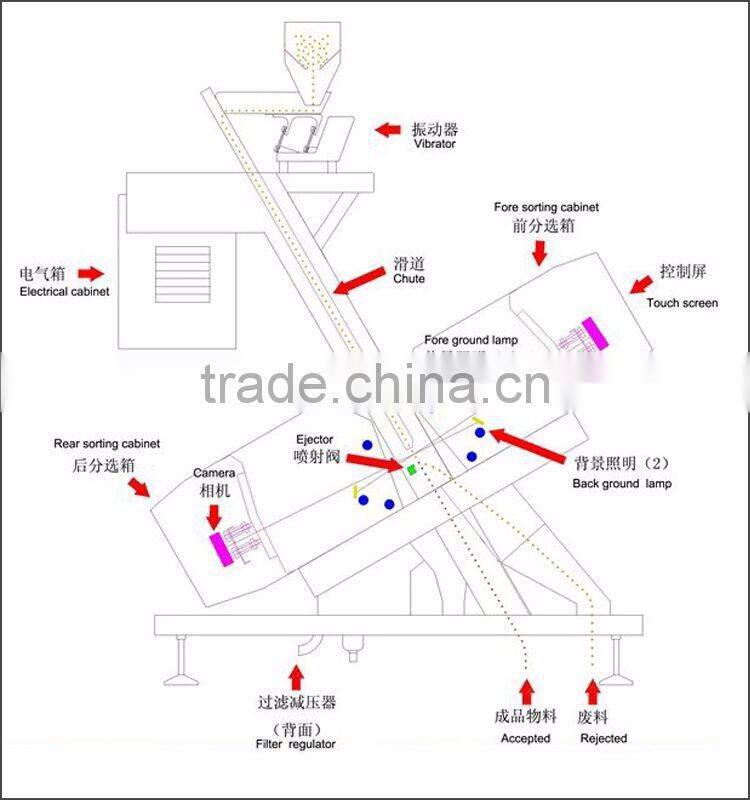

4.  Feeding system

Use the advanced feed detection system, Assure the uniformity of material flow.

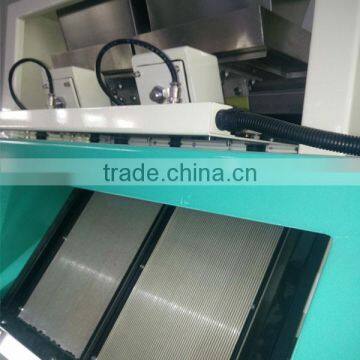

5.  Chute
Different slide ways are selected for different color sorting materials, to ensure that materials slide down more uniformly and the carryover is reduced.

6.  Light source system
Leading LED optical design system, a variety of light sources can be selected to suit the different materials.
Solve the problems like high temperature, large loss, and short life etc, caused by long-term use of light source, to ensure that LED light source is durable under constant temperature.

 CCD color sorter technical Parameter

1, The above data is based on the 2% contamination, and real output depends on the material and its contamination.
