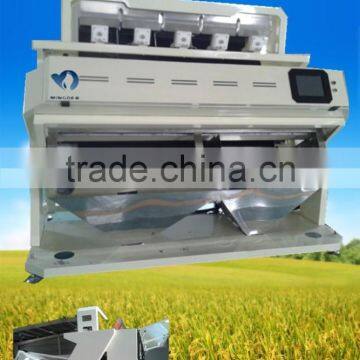

Mingder rice color sorter, grain sorting machine

  CCD Sensor rice color sorter machine:
1. Carryover 20:1
2.High Sensitivity
3.High Accuracy 99.99%
4.High Stability

5.High output

Intelligent multifunction CCD yellow rice color sorter

Color Sorting Machine for Grain,Wheat,Rice,Seeds,Dehydrated Vegetable,Recycle Plastic Color Sorter, hot !!

RICE COLOR SORTER Machinery/cereal grading machinery/plastic color sorter/peanut color sorter/coffee bean color sorter/raisin color sorter/SORTING MACHINE Type Wheat Grain Color Sorter/agricultural products sorting equipments

rice processing machines and Color Sorter of MINGDER CORPORATION/  Rice Milling Machine

=============================================================================

1)CCD camera
Use the color CCD image acquistion system to acquire the comprehensive information of red,
green and blue color ,the color sorter has the sensory ability of human eye,making better
selection of materials ,and satifying the requirements better.
The maximum resolution is up to 0.15mm, can accurately identify small defects and spots on
raw materials and the high-precison special lens ensures clear images.
2)Excellent rejection rate
Advanced image acquisition system intelligent image processing algorithms high quality
nozzle system equal to excellent elimination rate.
3) Touch Screen
Simple optical system design,precise automatic correction system,combined with the well
designed humanmachine interface to simplify the complexity of machine commissioning and use,
ensuring the simple operation and the machine is easy to learn and use.
4)LED Light
Led lighting system with radiato,long service life,low energy consumption,good performance.
Different raw materials require different spectra,we customize the light source according to the
need of customer.
5)Valve
For the different sizes and characteristics of material particle,use the solenoid valve of different
sizes.
6) Unique trough configuration
The special anodizing technology can ensure production volume as wel as conformity with the
international standard.
The machine can be equipped with cascade late and narrow chute channel to meet the color
sorting for various materials.

========================================================================================

Specifications

Advanced optical color sorter for rice.

Our Testing STAGE:

Technical features:

1. Linear array CCD full color sorting technique.Spectral regions are flexibly adjustable; can identify micro defected area accurately.

2. Leading LED light source technology.High efficiency, long service life.

3. No need to replace the light source, there are varied chutes available for sorting various cereals, industrial granules and flakes.

4. The ARM+FPGA double core system can enable top-level computing and processing ability.

5. Adopt high-quality, can guarantee maximum output, low carryover  ratio and low failure rate.

6. New mechanical structure design, reduces materials broken rate during processing and reduces carryover ratio.

7. Users can define the expected objects to eliminate through adding the defected samples; the software then can automatically prepare the sensitivity.

8. The powerful smart software operation system is easy to learn and to use. The colorful touch panel is user friendly and pleasant.

9. Auto-self-detection function, therefore is user friendly and time, energy efficient.

10. Optional NIR function can detect and remove malignant impurities such as glass piece etc., therefore to ensure output quality.

11. Add shape sorting function. According to the characteristics of materials, by applying unique color plus image processing algorithm, can successfully realize shape sorting.

Technical parameters:

Note :1. All the parameters listed above are worked out base on soybean with 5% impurity, it may vary according to  different targeted materials  and different impurities percentage etc.

 The output of each chute may vary too.

2. Update to the machine is allowed without notification. Please       refer to the actual machine for more details.

 Will pack according to the customers' requirements. tks

 Best after-sale service.

Set office overseas and online operation instruction & solution

24 hours online call service.

Hot line 4009600448

========================================

Diana Hong

My skype:  dianahongsmile

Whatsapp: 008613966725592

Weichat: h624350311

Email: dianahong @

===================================

Hefei MINGDE Photoelectric Technology CO,. Ltd is a professional smart-color-sorter equipment research, development and production enterprise, which is located in China, Shuangfeng Economic Development Zone of Hefei city; owns a 40 acres industrial park including 2000square meters R&D center and standard factory; has the capacity to produce more than thousand machines and to generate more than 100 million output value per year.

The R&D team of MINGDE consisted of innovative experts and talent in photoelectric technology field, most of whom are graduates from Tsinghua University, University of Science and Technology of China etc. The goal of MINGDE is to achieve maximum customer satisfaction by developing smart, practical, user friendly and high quality products.  So far, MINGDE has launched a series of smart color sort machine, whose intellectual property rights are owned by MINGDE completely. This series of product can accurately sort food material such as rice, cereal, tea etc. and industrial material including plastic, mineral and so on, which are successfully exported to America, Africa, Southeast Asia and other overseas markets. All series of the products are well respected within photoelectric color sorting field and praised by customers.

 In MINGDE, our enterprise philosophy is that “Integrity is the basis for successes”. We devote to the creation of leading technology and innovation. We are willing to work with friends from all areas and to make brilliant contributions in photoelectric color sorting field.

 What is our color sorters for ?

--For sorting your rice, grains, etc. material in good quality and rate

Do you have the warranty ?

--YES. We provide life-long time maintaining service.

What's the lead time ?

--About 10-20 working days according to your needs.

Do you acccept Custom-made order ?

--YES. WE DO !  We are manufacturer.
