5BG Best Corn Seed Treater for Maize Seed Processing Plant

5BG Best corn seed treater for Maize seed processing plant

5BG Continuous Seed Treater

1) Function: seed treating with chemicals
2) Application: cereal grains and grass seeds.
3) Capacity: 5t/h, 10t/h (wheat, ≥99% qualified rate, ≤0.1 broken rate).

Hyde 5BG continuous seed treaters (seed coating machines) are widely used for seed treating with chemicals , typically fertilizers, antimicrobials, fungicides, or pesticides. The chemical dressing agent is applied on the grain a thick layer in a continuous flow. Several seed dressing agents can be dosed at the same time.

1. Wide Application of 5BG Continuous Seed Treater Seed Coating Machine

Hyde 5BG continuous seed coating machine is an important seed processing equipment, widely used for dressing maize, cotton seed, wheat, paddy, beans, grass seeds, vegetable seeds, foresty and flower seeds before planting.
Seed treatments can be more environmental friendly for using pesticides as the amounts used can be very small; usually add color to make treated seed less attractive to birds and easier to see and clean up if spilt.

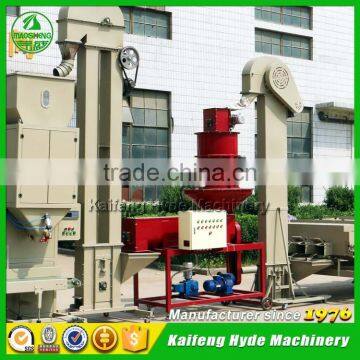

5BG Continuous Seed Coating Machine in 10t/h Wheat Seed Cleaning Plant

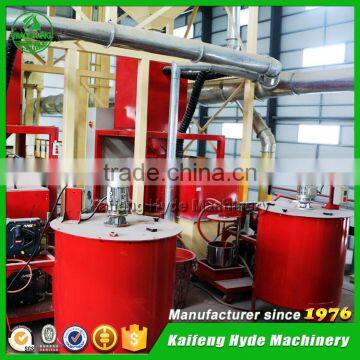

Hyde 5BG Seed Coating Machines in Customers' Grain and Seed Processing Plants

Contact Supplier

2. Construction of 5BG Continuous Seed Coating Machine

(1) Seed feeding system: impeller type feeder and level sensor.

Featuring continuous feeding, accurate measuring and adjustable feed volume.
(2) Dressing liquid supply system: liquid tank, metering pump, three-way valve.

Can be set to manual sampling mode or automatic liquid supply mode by three-way valve: in manual sampling mode, the liquid will flow to measuring glass to test the dressing ratio; in automatic supply liquid mode, the dressing agents can be supplied accurately according to requirement. The liquid tank is provided with continuous mixer and liquid level indicator.
(3) Seed and dressing liquid preliminary mixing system

Two disks, upper for seed and lower for dressing liquid spray, synchronously driven be motors. Waved liquid disk with high-speed centrifugal rotation can make finer atomization and more uniform dressing layer. Sensor for disk access panel will stop running when the panel is open for safe maintenance.
(4) Cleaning mechanism

Soft brush driven by motor, to remove the material and liquid on inner wall of preliminary mixer chamber, and meanwhile, mix the material.
(5) Mixer: a removable mixer shaft assembly and a shaft mounted speed reducer.

The shifting forks and blades will further mix the material with liquid, and discharge.
(6) Intelligent control system: PLC, hydraulic monitor, and sensors for auto-control.

3. Advantages of 5BG Continuous Seed Coating Machine

Compact and enclosed structure
Accurate measuring
Adjustable feeding
Manual & automatic liquid supply
Excellent spray in preliminary mixer and uniform distribution in secondary mixer
Easy to clean-up
Gentle handling of seeds
Continuous, reliable and simple operation, high capacity.
PLC control

4. Technical Specification of 5BG Seed Coating Machine

Note: Above technical data can vary due to continued development, or different machine configurations.

Our main products are:

Seed cleaners, seed graders, seed gravity separators, indented cylinder, de-awner, destoner, cyclone, seed coating machines, dryers, elevators and conveyors, auto-packing scales, harvesters for seeds, grains, cereals, beans, forestry seeds, crops and food, ranging from customized systems to complete turnkey plants.

Seed cleaning machine series:

     Air Screen Seed Cleaner                          Seed Gravity Separator                    Indented Cylinder Separator

          Seed Treater                              Auto-Packing Scale                                    Portable Combine Cleaner

Contact Supplier

Kaifeng Hyde Machinery is a branch company of Henan Maosheng Group, which is formerly known as Kaifeng 2nd Grain and Oil Machinery and has specialized in engineering and equipment manufacturing for grain handling, storage, flour milling and seed processing since 1976.

With 40 years' growth, Maosheng Group company has become one of CHINA TOP 10 Grain Processing Machinery Manufacturer. In addition, Maosheng is the host of CHINA National Grain Processing Technology Research Center.

Kaifeng Hyde Machinery, separated in 2002 as a branch company, mainly manufactures a full range of advanced grain and seed processing machines and equipment.

1. Maosheng Group Factory and Workshop

2. Hyde Machinery Factory and Workshop

3. Customer Visits and Oversea Cooperations

To better serve our clients, Maosheng Group not only imports high-end manufacturing facility to improve product quality and manufacturing productivity, but also keeps on looking for international communication and cooperation. We successfully signed agreement with Italy for machine development in 2009 and established joint venture with WESTRUP Denmark in 2013.

Check below pictures for customers from Australia, Canada, Egypt, Indonesia, Iran, Israel, Russia, South Korea, Sudan, UAE, etc.

4. Certificates and Honors

With decades of our effort, our machines have obtained China Top 10, China Famous Brand and enjoyed high reputation in domestic and oversea markets.

 Why choose us?

Pre-sales Service

1. Technical Consulting Service

Our wide product range enables us to provide most flexible, efficient and reliable equipment configurations or complete solutions for customers according to different requests and budgets.
2. Company and Production Line Visit

Before placing orders, customers are warmly welcome to visit Hyde and our facility. We can also arrange the visit to our existing customers to learn the operation condition of our machines and complete plant.

In-sales Service

1. Reliable delivery time.
2. Strict quality control by in-production 100% check and test.
3. User manual and spare parts provided for free.

After-sales Service

1. Fast technical guidance for construction, installation and commissioning.
2. Necessary training for daily maintenance on site.
3. 12 months warranty.
4. Lifelong regular technical service.
5. Timely solutions to problems.

Q: What do you need to know for fast communication and quotation?

A: It would be highly appreciated if you can provide details of your processing material specs, capacity and efficiency request, screen specification, motor power supply voltage and special brand needed, and other working conditions.

Q: Can you make the machines as per our special requirement?

A: Yes, OEM/ODM service available.

Q: What about the lead time?

A: 7~15 workdays, depending on the type of machine and parts availability.

Q: What is your payment terms?

A: T/T, L/C, Western Union, Cash accepted.

30% deposit with purhase order, 70% balance paid prior to shipment.

Q: How can you guarantee the quality?

A: Quality control by incoming material inspection, 100% in-production check and random check after packaging.

Spare parts and technical solutions provided timely for machine failure.

Q: How do we visit your company?

A: Hyde Machinery is located in Kaifeng City, Henan Provice, China.

1 hour drive from nearest Zhengzhou Xinzheng airport, half hour drive to Maosheng Group headquarters.

Welcome your enquiry and visit about High Quality Corn Seed Treater!

Check below information, or just fill in the form and click "Send".
