5X Air Screen Malt barley fine seed cleaner machine with 12t/h capacity

5X Air Screen Malt barley fine seed cleaner machine with 12t/h capacity

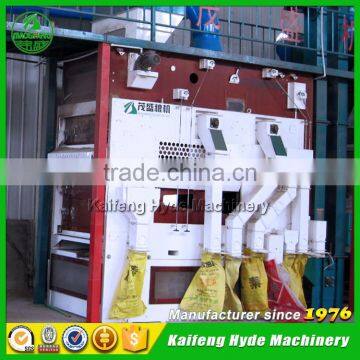

5X Air Screen Type Grain Seed Cleaner

1) Function: fine cleaning to remove impurities, broken and abortive grains; grading seeds accroding to sizes.

2) Application: cereal grains and seeds.

3) Capacity: up to 12t/h (wheat).

The 5X series air screen seed cleaner has been developed specially for flexible, high quality cleaning for grains and seeds. It can be used for pre-cleaning and intensive cleaning, but mainly for seed cleaning.

1. Application of 5X Air Screen Seed Cleaner

5X series air screen cleaners are widely used for cleaning and grading of grains and seeds, such as wheat, malting barley, beans, rice, maize, spices, grass seeds, flower seeds and forestry seeds.

The multi-layer cleaning screens are changeable easily for different processing requirements.

5X Series Air Screen Cleaner in 10t/h Wheat Seed Cleaning Plant

Hyde 5X-5 Air Screen Cleaner in 5t/h Paddy Rice Cleaning Plant

2. Working Principle of 5X Air Screen Cleaner

The seeds and grains can be separated from impurities for different physical and mechanical properties.

The separation is completed by:

1. Fans (air blowers): by different weight and aerodynamic characteristics.

2. Screens: according to different width and thickness sizes of seeds.

Excellent cleaning and grading function is accomplished by variable screen configuration, pre and after suction system, and air lifting blowers at the bottom. Closed, bolted and painted steel construction ensures the long service life and safe operation.

3. Advantages of 5X Air Screen Seed Cleaner

(1) Multi-layer screens are equipped in opposite directions for good impurity cleaning performance.
(2) Upper and lower screen decks dynamically balanced in opposite directions for good self-balance and stable running.
(3) Easy interchangeable screens, flexible for different processing requirements.
(4) Wide adjustable range realizes fine cleaning process easily.
(5) Positive-negative pressure blower systems at top and bottom, twice remove light impurities and incomplete seeds.
(6) Screen frames, main ball trays and feeder parts are made of high quality wood, good sealing and vibration absorption performance with low noise.
(7) Integral steel frame rubber ball tray for easy screen cleaning and easy changes of processing materials.
(8) Safety guard for every moving part to ensure safe operation.
(9) Box-type screen body structure efficiently reduce dust content in workshop.
(10) Symmetric machine structure, discharge system can be equipped left or right according to site conditions of customer.

4. Technical Specification of 5X Air Screen Seed Cleaner

Notes:

1. Machine can be converted to different cleaning programs, screens shall be changed accordingly.

2. Above technical data can vary due to continued development, or different machine configurations.

Our main products are:

Seed cleaners, seed graders, seed gravity separators, indented cylinder, de-awner, destoner, cyclone, seed treater, dryers, elevators and conveyors, auto-bagging scales, harvesters for seeds, grains, cereals, beans, forestry seeds, crops and food, ranging from customized systems to complete turnkey plants.

Seed cleaning machine series:

     Air Screen Seed Cleaner                          Seed Gravity Separator                    Indented Cylinder Separator

          Seed Treater                              Auto-Bagging Scale                                    Portable Combine Cleaner

Kaifeng Hyde Machinery is a branch company of Henan Maosheng Group, which is formerly known as Kaifeng 2nd Grain and Oil Machinery and has specialized in engineering and equipment manufacturing for grain handling, storage, flour milling and seed processing since 1976.

With 40 years' growth, Maosheng Group company has become one of CHINA TOP 10 Grain Processing Machinery Manufacturer. In addition, Maosheng is the host of CHINA National Grain Processing Technology Research Center.

Kaifeng Hyde Machinery, separated in 2002 as a branch company, mainly manufactures a full range of advanced grain and seed processing machines and equipment.

1. Maosheng Group Factory and Workshop

2. Hyde Machinery Factory and Workshop

3. Customer Visits and Oversea Cooperations

To better serve our clients, Maosheng Group not only imports high-end manufacturing facility to improve product quality and manufacturing productivity, but also keeps on looking for international communication and cooperation. We successfully signed agreement with Italy for machine development in 2009 and established joint venture with WESTRUP Denmark in 2013.

Check below pictures for customers from Australia, Canada, Egypt, Indonesia, Iran, Israel, Russia, South Korea, Sudan, UAE, etc.

4. Certificates and Honors

With decades of our effort, our machines have obtained China Top 10, China Famous Brand and enjoyed high reputation in domestic and oversea markets.

 Why choose us?

Pre-sales Service

1. Technical Consulting Service

Our wide product range enables us to provide most flexible, efficient and reliable equipment configurations or complete solutions for customers according to different requests and budgets.
2. Company and Production Line Visit

Before placing orders, customers are warmly welcome to visit Hyde and our facility. We can also arrange the visit to our existing customers to learn the operation condition of our machines and complete plant.

In-sales Service

1. Reliable delivery time.
2. Strict quality control by in-production 100% check and test.
3. User manual and spare parts provided for free.

After-sales Service

1. Fast technical guidance for construction, installation and commissioning.
2. Necessary training for daily maintenance on site.
3. 12 months warranty.
4. Lifelong regular technical service.
5. Timely solutions to problems.

Q: What do you need to know for fast communication and quotation?

A: It would be highly appreciated if you can provide details of your processing material specs, capacity and efficiency request, screen specification, motor power supply voltage and special brand needed, and other working conditions.

Q: Can you make the machines as per our special requirement?

A: Yes, OEM/ODM service available.

Q: What about the lead time?

A: 10~30 workdays, depending on the type of machine and parts availability.

Q: What is your payment terms?

A: T/T, L/C, Western Union, Cash accepted.

30% deposit with purhase order, 70% balance paid prior to shipment.

Q: How can you guarantee the quality?

A: Quality control by incoming material inspection, 100% in-production check and random check after packaging.

Spare parts and technical solutions provided timely for machine failure.

Q: How do we visit your company?

A: Hyde Machinery is located in Kaifeng City, Henan Provice, China.

1 hour drive from nearest Zhengzhou Xinzheng airport, half hour drive to Maosheng Group headquarters.

Welcome your enquiry and visit about High Quality Barley Seed Cleaner Machine!

Check below information, or just fill in the form and click "Send".
