Home > Products > ccd tea color sorter > Anhui Hongshi Hi-tech Tea CCD Color Sorter, Tea Grading Machine of High Quality and Best Price
Anhui Hongshi Hi-tech Tea CCD Color Sorter, Tea Grading Machine of High Quality and Best Price
- Shanghai Port
- T/T
You May Like
Product Details
| Place of Origin | Anhui, China | Brand Name | Hongshi High-Tech | |
| Model Number | SF5 | Type | Other |
Product Description
Specifications

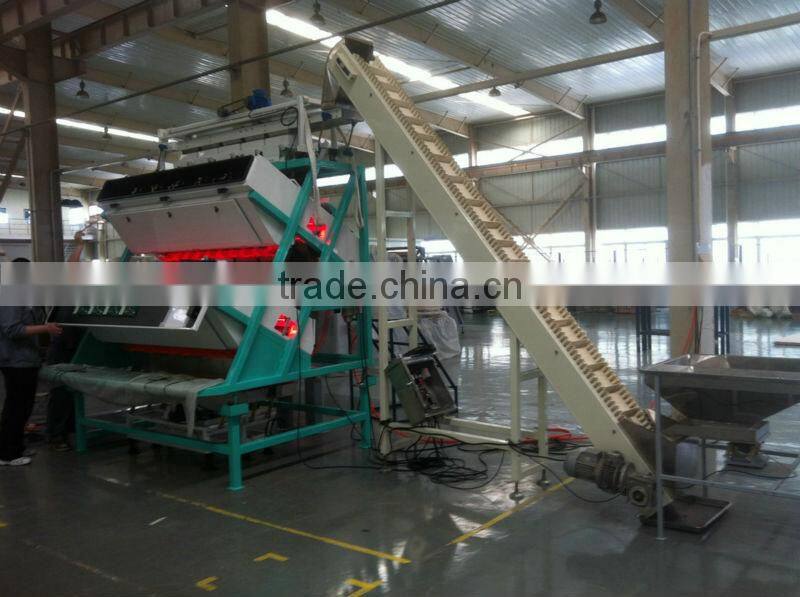

Tea CCD Color Sorter(1)High Resolution CCD Camera & Image Processing
(2)Special Coated Chute
(3)High Production Capacities
- Sort Material
Dark Tea, White Tea, Oolong Tea, Black Tea, Yunnan Tea, Yellow Tea, Puer Tea, etc
Effect of Sorting
- Technology Parameters
Model | SF1 | SF4/SG4 | SF5/SG5 |
Chute number | 1 | 4 | 5 |
Capacity(Kg/h) | 20-60 | 200-400 | 400-900 |
Sorting accuracy | >99.9% | >99.9% | >99.9% |
Power consumption (Kw) | 2.0 | 3.0 | 3.0 |
Air compressor (Kw) | 7.5 | 7.5x2 | 11x2 |
Weight | 500(±5%) | 1000(±5%) | 1500(±5%) |
Demension | 850*1085*1685 | 2275*1810*3030 | 2320*1840*2670 |
Power supply | 220v/50hz | 220v/50hz | 220v/50hz |
- Core Spare parts
- Product Characteristic
(1) Appling 2048 CCD camera and photo processing technology can process photo parameters ever faster.
(2)High-speed micro computer processing system, real-time more.
(3)Cutting-edge electronic system used to protect the effciency and stability.
(4)Use advantage special slide, reduce friction and convenient for maintenance work.
- Product Advantages
1. Advanced digital image acquisition system
A. Global advanced optical system design with various light resources and wide vision range to achieve optimum efficiency to recognize different materials.
B. Adopt 5000 pixel CCD sensor of high resolution and sensitivity to identify 0.04 mm2 minor defects.
C. Imported wide angle and large aperture customized industrial camera lens to ensure best image quality.
2. High frequency solenoid valve
A. Adopt famous Italian brand solenoid value/ejector which works 1000times/second and lower the air consumption rate 20%.
3. Automatic operation interface
A. Adopt famous Japanese brand display screen
B. Users can set different sorting models as per their requirement. More than 20 setting models can be saved for sorting different materials.
C. Automatic tracking and adjusting system, easy operation.
4. LED light resource application
A. Use LED lights with higher stability and longer usage life instead of fluorescent lamps.
B. A variety of light resources can be customized according to customer’s different demands.
5. Special intelligent image processing system
A. Ultra-fast processor to make efficient analysis and detection of the RBG signal feature of materials.
B. Based on FPGA+DSP hard ware system, powerful processing capacity to deal with large data operation. It can identify tiny spots or color difference, even smaller than 0.04 mm2.
C. Be able to synchronize multi-task, diversified sorting model independently on each group and capable of sorting color positively and negatively, sorting different colors at the same time as well.
D. Creative software algorithms, improved the sorting results perfectly.
6. Super computing and processing capacity
A. Great computing capacity to deal with large ultrafast operation.
B. Flexible processing capability, customizing a variety of image processing algorithms immediately.
- Company Introduction

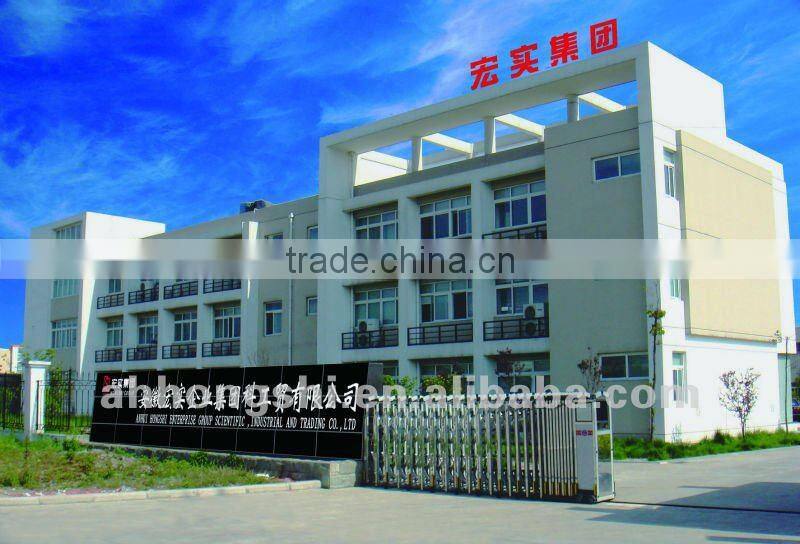

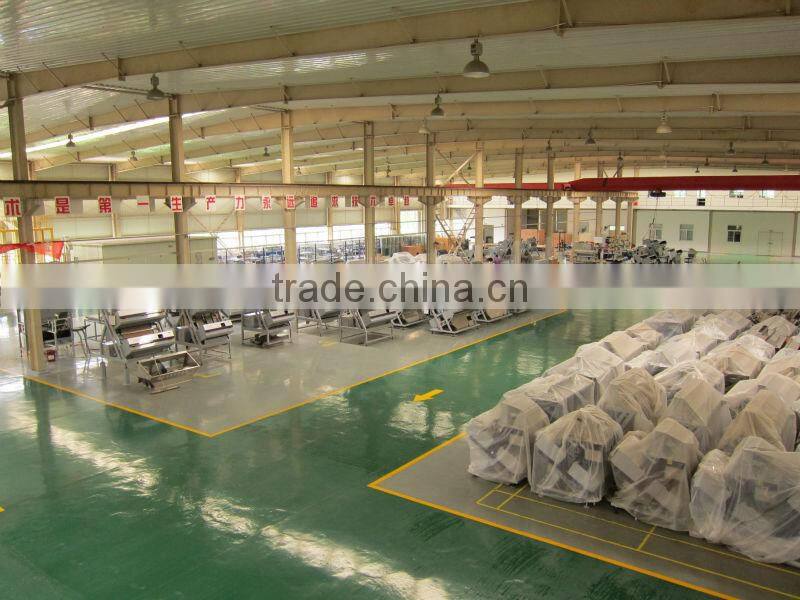

Our company covering an area of 120000 square meters workshop and 4000 square meters research center in Hefei City, China. Hongshi Hi-Tech is comprehensive high-tech sensitive enterprice aiming at research, production, sales. and service of color sorter machine.

Contact Us
- Anhui Hongshi Optoelectronic High-Tech Co., Ltd.
- Contact nameMichael Liu Chat Now
- Phone86-551-63755858
- AddressNO.2,Weiwu Road,Baohe Industry Zone,Hefei, Hefei, Anhui
