Cut To Length Line Machinery For Small Business

FOB Price

Negotiable / Set

1 Set(Min.Order)

Port Tianjing
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China		Brand Name	HZZG
Model Number	customized		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

Simple structure
Reliable working
Competitive price

1. Technicial parameter

Material	aluminum and alloy
Strip thickness	0.3~12mm
Strip width	600~2150mm
Weight of entry coil	5000~25000kg
Width of cutting	550~2100mm
Length of cutting	500~6000mm
Stacking sheet height	500mm
Line speed	60~100m/min
Frequency of cutting	10times/min
Paste film mode	Paper, plastic film, oil paper

2. Cut To Length line introduction

Cut to length line is basically a continuous production line for aluminum and aluminum alloy rolled coil cut to length after length of the plate, and stack neatly put.

3. Cut to Length line advantage

Cut Methods rotary shears
Transmission gear units manner, using a special alloy steel, heat-treated grinding teeth on import grinder, precision can reach the new standard 6 above (the old standard one), can safely eliminate the impact sound when cut.
(1) The main drive motor with transverse shear dedicated DC low inertia motor. By the integrated

module designed to control the length, length accuracy up to ± 0.5mm.

straightening device using six heavy roller

(2) With six heavy leveler good rigidity, high accuracy.
Intermediate rolls isolated, support roll edge marks printed on the plate can not be repeated.

(3) the use of non-looper control, reduce scratches, quality assurance, save construction costs.

(4) the use of air cushion pallet pallet

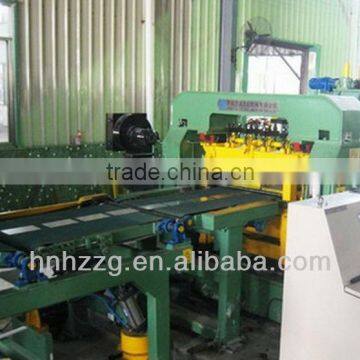

4. Cut to length line pictures

If you are interested in our products, please feel free to contact us.
