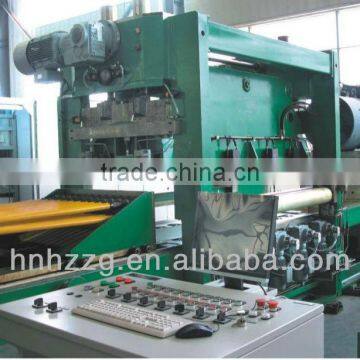

High Quality, High Performance and High Efficiency 23 Multi-roll Steel Strip and Steel Coil Straightening Machine

1.Strip parameters:

   yield strength: δs ≤ 400MPa

   width: 950-1600mm ,

   thickness: 0.3-2.0 mm

2.The components of the Straighting Machine

     This leveler consists of : frame, roll cassette, press-down unit, life,

pinch delivery unit, clearance unit, power transmit unit, lubricate system,

hydraulic system and electrical control system.

    The strip comes into leveler from left side and its maximum

working speed is 180 m/min.

3.Advanced characters of this Straightening Machine:

         (1)Clearance device can clean upper and lower work rolls surface timing

 to avoid anything attach at strip surface.

        (2) Pinch delivery unit can ensure strip goes into fly shear directly to help

 cross cutting favoring.

        (3) Work roll are driven by constant velocity joint, that CV-joint can ensure work rolls running stably.

       (4)It has no intermediate roll and back up rolls, so it is easy for roll maintenance.

4.Our concrete products

     Our concrete products include such as Aluminum Casting Machine, Aluminum Cold Rolling Mill, Aluminum Foil Rolling Mill, Aluminum Cleaning Line, Tension Leveling Line, Cut-to-length-line, Cast Roller Series, Rotary Shear, Straightening Machine, Coiling Machine.

     Should any our products be of your interest , please feel free to contact me, I am ready to provide you any information that you concern. I am looking forward to establishing long term business relationship with you!
