Product Details
| Place of Origin | Henan, China | Brand Name | HZZG | |
| Model Number | Customized | Type | Casting Parts | |
| Material | Other, roller material :32Cr3Mo1V and roller core material 42CrMo | Plating | Chrome | |
| Certification | Other, ISO9001:2008 |
Product Description
Casting roller for aluminum casting mill
1.Roller series
--Backup rolls and work rolls for sheet and strip mills
--Breakdown rolls
--Section mill rolls and sleeves for long product mills
--Backup rolls and work rolls for plate mills.
2. Main Technical Parameters
Roller material : 32Cr3Mo1V
Chemical analysis:
C | Si | Mn | P | S | Ni | Cr | Cu |
Mo
| V | |
| 0.27~0.37 | 0.20~0.40 | 0.20~0.50 | <0.025 | <0.025 | <0.25 | 2.70~3.20 | <0.25 | 0.9~1.10 |
0.15 ~ 0.20 |
Mechanical property:
Temperature (°C) | Tensile strength(MPa) | Yield strengthe(MPa) | Elongation(%) | Reduction(%) | Impact toughness(J/cm²) |
| Indoor temperature | 1358 | 1258 | 16.1 | 57.3 | 83.5 |
500 | 1064 | 905 | 17.8 | 78.4 |
|
600 | 835 | 752 | 19.7 | 84 |
|
630 | 721 | 592 | 22.6 | 92.1 |
|
680 | 442 | 375 | 29.3 | 95.6 |
|
3. coefficient of thermal expansion
Temperature °C | W/m°C |
0~100 | 11.87 |
~200 | 12.71 |
~300 | 13.22 |
~400 | 13.77 |
~500 | 14.15 |
~600 | 14.40 |
~700 | 14.68 |

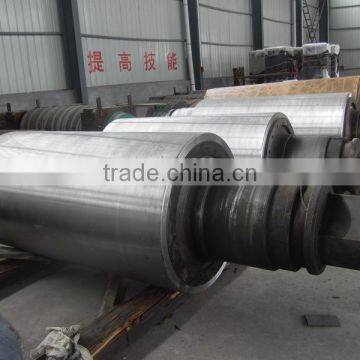

4. Pictures show:
For more information, please contact me directly as soon as possible. And hope we have more opportunities to cooperate with you in the near future.
