24KW 30KVA cummins standby diesel engine generator set
USD $5,300 - $5,300
/ Set
1 Set(Min.Order)
- Shanghai
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Haut | |
| Model Number | GF24 | Output Type | AC Three Phase | |
| Speed | 1500/1800rpm | Frequency | 50/60HZ | |
| Rated Power | 24kw | Rated Voltage | 230V/400V | |
| Rated Current | 43.2A |
Product Description
24KW 30KVA cummins standby diesel engine generator set
Specifications
| Model No. | GF24 |
| Standby Power ( KW/KVA) | 24kw / 30kva |
| Engine Model | 4B3.9-G2 |
| Engine Brand | Cummins |
| Engine Manufacturer | CCEC |
| Engine Power (KW) | prime 24kw / standby 27kw |
| Bore x Stroke (mm) | 102 x 120 |
| Compression ratio | 16.5 : 1 |
| Fuel consumption (g / kw.h) | 210 |
| Displacement (Liter) | 3.9 |
| Governing | Electronic governor |
| Intake method | natural aspirated |
| Cooling | Water cooling |
| Alternator | Stamford PI144G |
| Alternator excitation mode | Brushless, Self-excited |
| Voltage (V) | 230/400V |
| Rated Current (A) | 43.2 |
| Frequency (HZ) | 50 |
| Rated Speed (rpm) | 1500 |
| Phase | 3 phase 4 wire |
| Power factor | 0.8 lagging |
| Dimensions (LxWxH mm) | 1620 * 610* 1380 |
| Gross Weight (kg) | 610 |

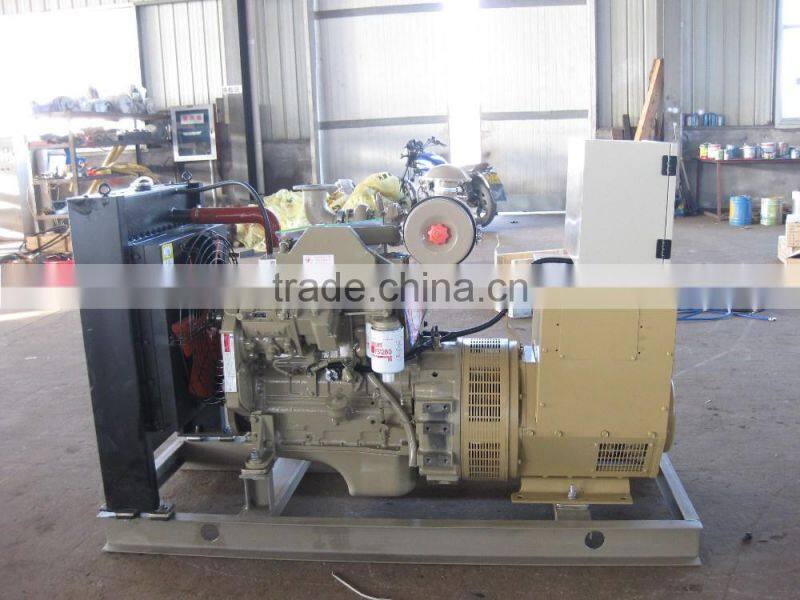

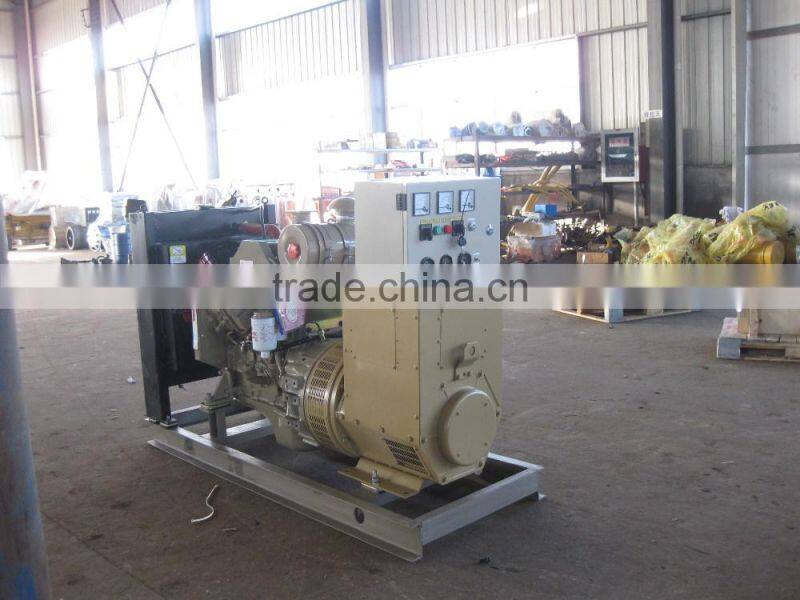

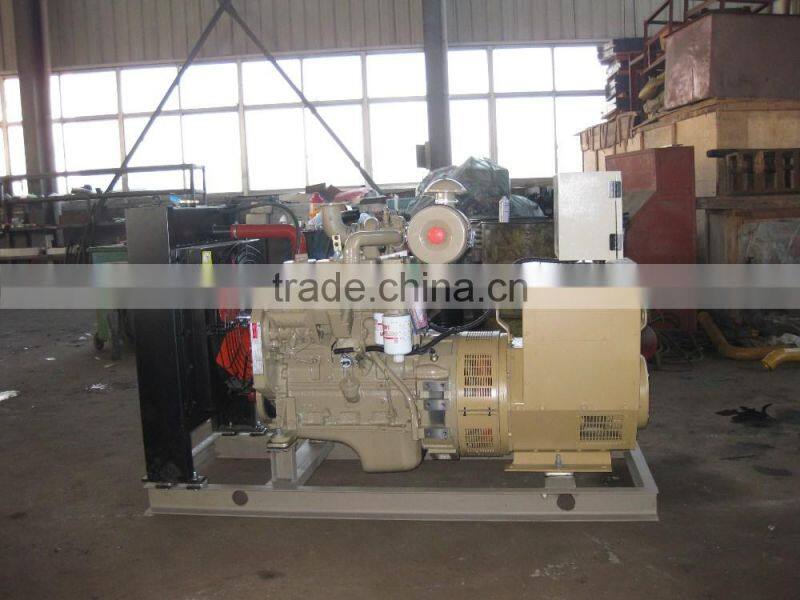

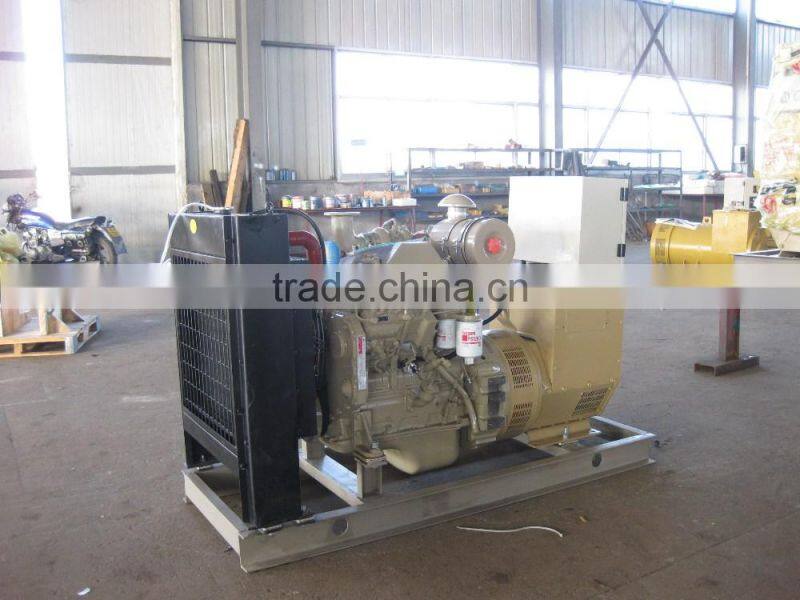

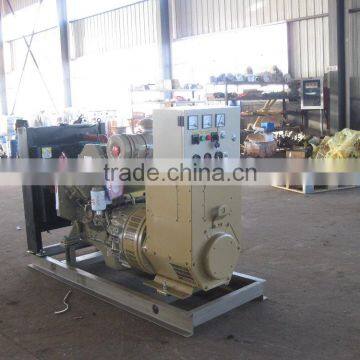

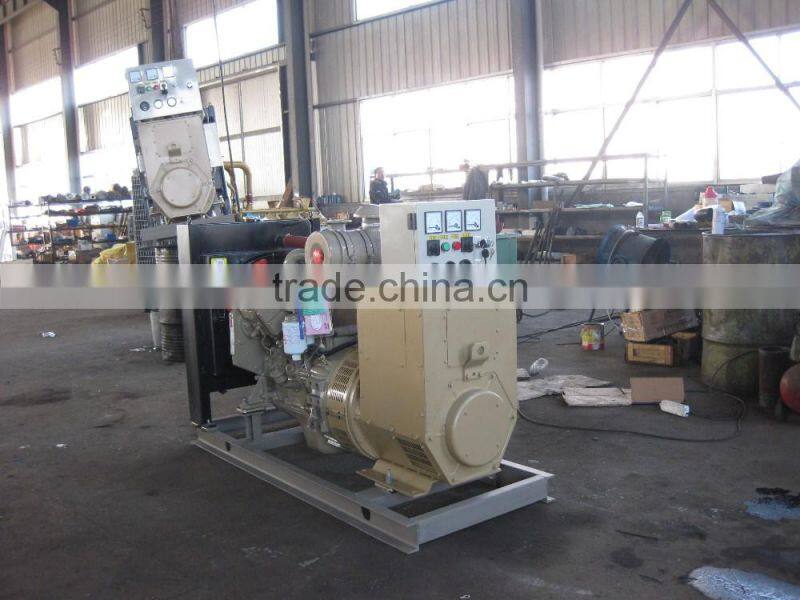

Pictures of 24KW 30KVA cummins standby diesel engine generator set
