Trending Hot Products 2016 400mm Bore Well Drilling Machine Price
- QingDao
- T/T Money Gram
You May Like
-
Hight Quality Products 12T Axial Pressure Trailer Mounted Bore Well Drilling Machine Price
-
Export Quality Products Economical Price Bore Well Drilling Machine Price SL1100
-
Dubai Wholesale Market 700m Hole Depth Truck Mounted Bore Well Drilling Machine Price
-
Best Selling Products 60T Lifting Force New Bore Well Drilling Machine Price
-
Most Demanded Products 11000N.m Rotary Torque Soft Start Bore Well Drilling Machine Price
-
Export Products List 24KW/380V Bore Well Drilling Machine Price
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | Shandong, China | |
| Brand Name | longye | Model Number | SL1100 | |
| Usage | Water Well | Voltage | 380V | |
| Power(W) | 24KW | Dimension(L*W*H) | 7302X2200X2900 | |
| Weight | 15T | Certification | CE / ISO | |
| Warranty | One Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

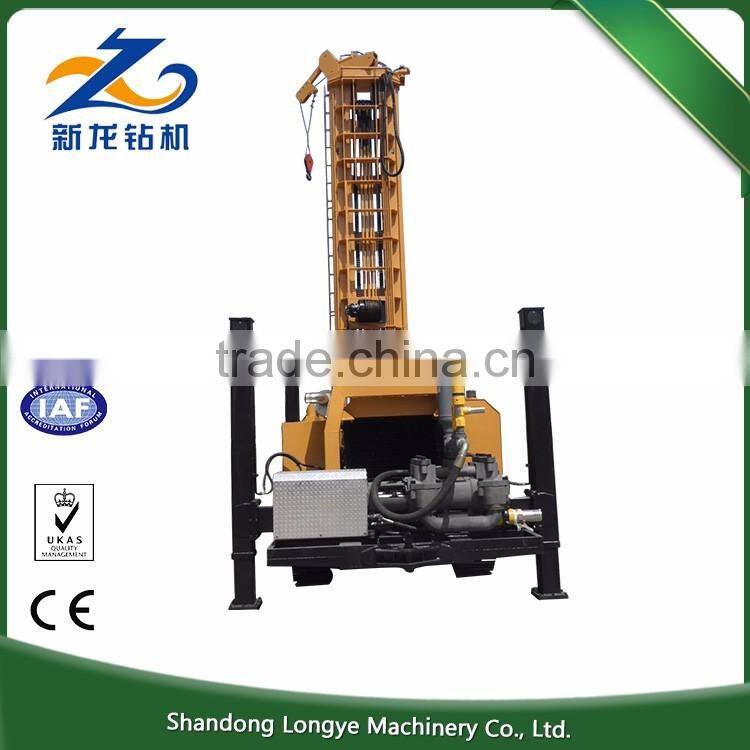

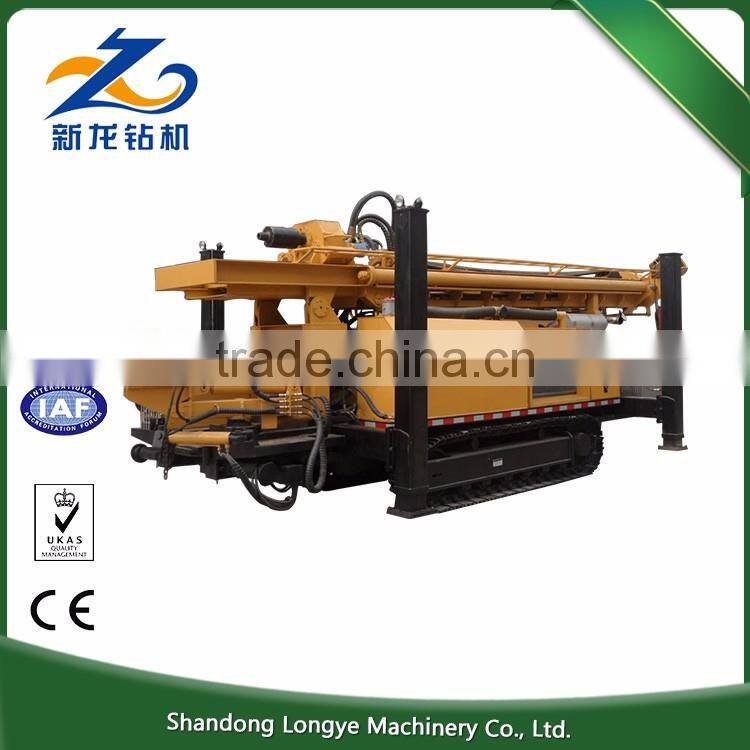

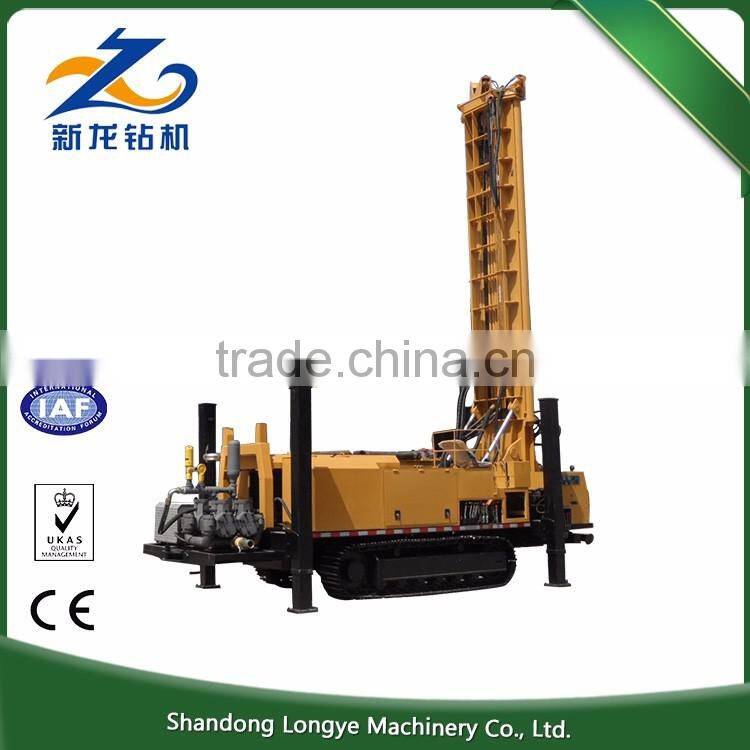

SL1100 track-type bore well drilling machine is lightweight, efficient, multi-purpose drilling equipment, which can use air, foam or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular,it is use for drilling hole for geothermal heating it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements.
1.The host is equipped with a six cylinder engine power ,which can guarantee the output of strong power in the drilling ,according to the actual demand the hydraulic system gets optimization design and improvement. To ensure the reasonable power distribution effectively, meet the drilling conditions.
2. Rotary hydraulic motor driven rotary gear mechanism, can provide 6500-13000NM efficient, strong power output, to ensure the high efficiency drilling operations. Slewing mechanism can choose high, low speed and high ,low torque output according to different conditions and strata condition, so as to adapt to different working environment.
3. The rig is equipped with full hydraulic unloading rod device, so as to improve the work efficiency, and greatly reduces the labor intensity and the operation safety.
4. When work, rig can be fixed with the car body, and is equipped with four solid and reliable hydraulic leg, in front is equipped with two auxiliary hydraulic leg, greatly enhance the stability and verticality in the process of drilling . Four hydraulic supporting leg can meet in the transport process of loading requirements, solve the difficulty of the hoisting of field operation, greatly reduces the cost of transportation.
5. rectangular tower with high torsional strength, high stress area with special structure. Double sided cutting lace rig welding, keep the flexural capacity of the derrick. Overall structure with double cylinder pull type connection in the form, through the rotary structure optimization design with the rig reasonable combination , to ensure that the lifting force is the strongest of the output, thus in complex terrain appear sticking easily will drill pull out, to reduce unnecessary losses.
Working Pressure(Mpa) | 1.05---6.45Mpa |
Air consumption(m3/min) | 16---96.4m3/min |
Hole diameter(mm) | 140---400mm |
Hole depth(m) | 700m |
Drill pipe diameter(mm) | 89/108/127 mm |
Drill pipe length(m) | 4500mm |
Axial pressure | 12T |
Lifting force | 60T |
Slow lift speed | 2M/Min |
Slow propel speed | 0.9M/Min |
Fast lift speed | 18M/Min |
Fast forward speed | 37M/Min |
Rotary torque | 11000N.m |
Rotational speed | 0---100r/min |
winch Hoisting force | 2.5T;Wire rope diameter 12mm |
Mud pump flow | 600L/ Min(select) |
Centrifugal pump flow | 1300L/ Min(select) |
Generator | 24KW/380V |
Single climbing ability | 15° |
Weight | 15T |
Dimensions | 7302X2200X2900 |
Shandong Longye Machinary Co., Ltd. is specialized in the production of hydraulic pressure down-hole drilling rigs, engineering drills and water well drilling rigs. Our company is a backbone enterprise in the industry.
Our company is located at the foot of Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise.
Our company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering technicians, who all are specialized drilling rig mechanical design talents.
Our company has more than 30 sets of advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has our own heat treatment production workshops and surface treatment equipment.
On the basis of advanced production equipment and more than 10 years of experience, our company has developed and produced three series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well throughout China, Russia, Kenya, Brazil, India and some other countries in Europe.
