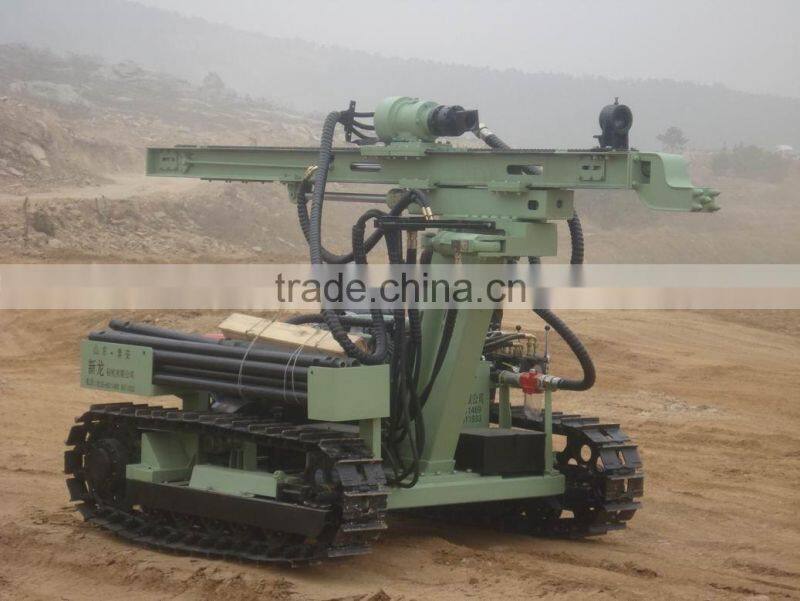

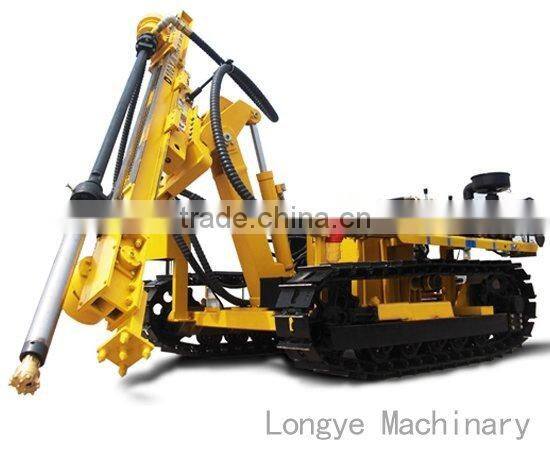

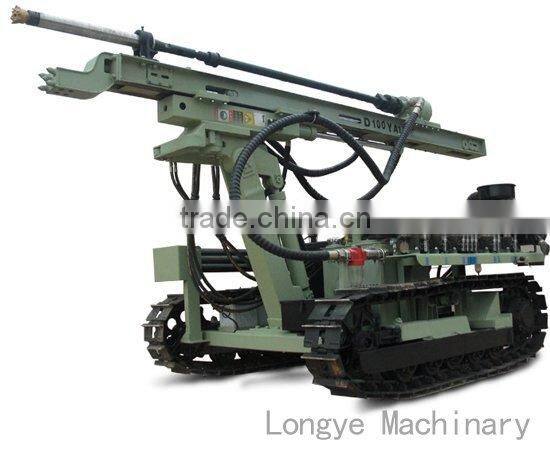

Blasthole Drilling Rig(CTQ-D100Y)
- Qingdao Port
- T/T
You May Like
Product Details
| Condition | New | Type | Other | |
| Place of Origin | Shandong, China | Brand Name | longye | |
| Model Number | CTQ-D100YA1 | Usage | Ore |
Product Description
Specifications
CTQ-D100YA1 blasthole drilling machine,low air pressure hydraulic drilling rigCTQ-D100YA1 hydraulic crawler drilling machine
The CTQ-D100YA1 blasthole drill machine is our company CTQ-D100Y improved product,that uses integrated system in order to enhance its performance.This model also improve the elevation mechanism,walking system as well as the effective life of the hydraulic compents which reduce customers’expenses. It has a compact structure that enable climbs and a simple operation, also it has slide rails that have the expansion and contraction compensatory functions that makes machine stable while is working.This machine has a wide range of uses,road constructions
Application:

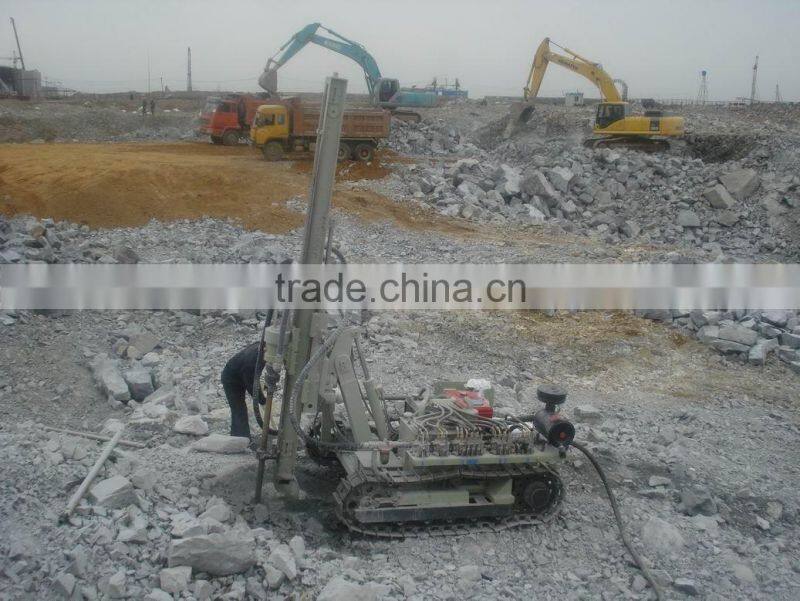

CTQ-D100YA1 crawler hydraulic drilling rig is mainly used in open cut ore mining,power station,road building for exploring the stone.
Total weight | 2600kg |
Bore diameter | 90-130mm |
Dimension | 4100*2030*2020 |
Bore depth | 30m |
Travelling speed | 2km/h |
Climb ability | 30° |
Feed stroke | 2000mm |
Working pressure | 0.7-1.0Mpa |
Ground clearance | 250mm |
Air consumption | 7-10m3/min |
Slip frame pitch degree | Up and down 100 degree each |
Slide kid slanting allowance | Left 35 degree right 10 degree |
Rated motor power | 18.6kw |
