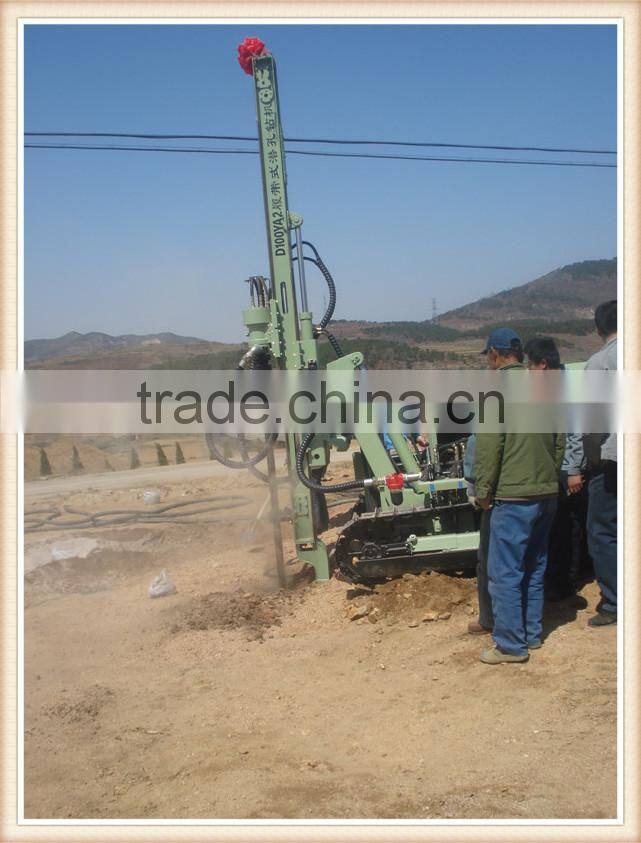

30m Automatic Crawler Full-hydro-driller D100YA2 With CE&ISO Certificate
- QingDao port or as your requirement
- T/T
You May Like
-
60m Engineering Construction Hydraulic Driver Drill G150YF for Sale
-
60m Engineering Construction Hydraulic Driver Drill G140YF for Sale
-
40m Engineering Construction Hydraulic Driver Drill Z115Y for Sale
-
30m Engineering Construction Hydraulic Driver Drill D100YA2-2 for Sale
-
New Condition Automatic Solar Ground Pile Driver MZ130Y-2 for Sale
-
30m Crawler Heavy Construction Drilling Equipment D100YA2 Drilling Rig
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | Shandong, China | |
| Brand Name | LongYe | Model Number | CTQ-D100YA2 | |
| Usage | Other, rock drilling blast hole; reinforce basis | Voltage | 24 v | |
| Power(W) | 33000 | Dimension(L*W*H) | 4300*2030*2160 (mm) | |
| Weight | 2860 kg | Certification | CE / ISO | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
product superiority:
1. excellent steel quality of products
2. supply wearing parts for free
3. our crawler hydraulic drilling rig suitable formountainous and muddy pavement.
4. the YuChai Brand diesel engine life is very long
5. the pump desigh , can save the maintenance cost
6. the work efficiency is very high .
7. large hydraulic oil design,also separated controllable, meanwhile guarantee stability during fieldwork.
CTQ-D100YA2 crawler hydraulic drilling rig ,the smallest turning radius of only 2.8m,while promoting a retractable sliding shelf compensation,using a new hydraulic technology,is mainly suitable for open mining ,hydro-power plants, electric power stations,road building and other rock drilling blasting holes.
Total Weight(T) | 2.8 |
Drilling diameter(mm) | 90--130 |
Dimension (L * W * H)(mm) | 4100*2030*2020 |
Drilling depth(m) | 30 |
Travelling speed(km/h) | 2 |
Once promotion distance(m) | 2 |
Climb ability(.) | 30 |
Working pressure(MPa) | 0.7-1.4 |
Chassis ground clearance(mm) | 250 |
Air consumption(m3/min) | 7-15 |
Skid pitch(.) | up and down 100 |
Host Power(kw) | 33kw |
Sliding tilt swing(.) | L35,R10 |
For rock | F=6-20 |
Skid compensation(mm) | 900 |
About ShanDong LongYe Machinary Co.,Ltd. is specialized in the production of hydraulic presure down-hole drilling rigs, engineering drills and water well drilling which are backbone enterprises.
