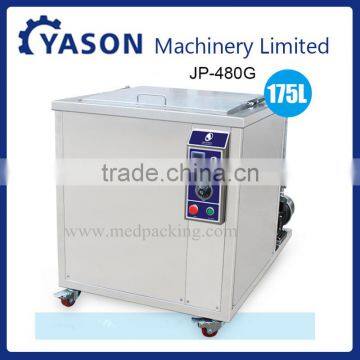

JP-480GL Large industrial ultrasonic cleaning machine with filtering circulation function 28KHZ

Name: JP-480GL Large industrial ultrasonic cleaning machine with filtering circulation function   28KHZ

Product Specifications:

Model: JP-480GL

Ultrasonic frequency: 28000Hz

Liner Material: Stainless steel (SUS304  2.0)

Shell Material: Stainless steel (SUS304  1.0)

Capacity: 175L

Time control: Digital control (1-99 minutes)

Power: AC380V(3 phase), 50 / 60Hz

Ultrasonic power: 2400W

Heating power: 6000W

Liner Size: 700 * 500 * 500MM (L * W * H)

Product Size: 950 * 1145 * 820MM (L * W * H)

Packing size: 1070 * 1245 * 1000MM (L * W * H)

Weight: N.W.186kg, G.W.248kg

Product Features:

1. The interior materials used GB304 stainless steel thick to 2mm, handmade argon welding, strong high temperature;

2. With the function of filtration cycle, recycling the solvent, cost savings, cleaning effect is good.

3. Digital temperature control time, intuitive and accurate, can last for a long time to work, time 1-99 minutes adjustable;

4. Independent generator control system, the flexible control precision, can be adjusted according to the customer cleaning objects of different ultrasonic power.

5. South Korea imported standard 50 w industrial-grade shake head, concentrated efforts, cleaning effect is remarkable.

6. With memory function, unique machine with memory chip, time-temperature setting without having to reset after.

7. Automatic temperature heating system 20-80 degree adjustable, install 3 1500w cast aluminum heating plates, heating faster and save cleaning time;

8. The use of industrial-grade power standard bold power line, heat resistant softening, safe and secure.

9. Standard industrial design, weighing 300kg object cleaning;

10. The machine configuration: Machine belt generator control box, stainless steel cleaning basket, drain valve, the silencing cover, the power cord, casters, etc.

Application scope:

This product is applicable to machinery, surface treatment, instruments and meters, electronics, medical, semiconductor, watches and clocks jewelry, chemical, biological, optical, textile printing and dyeing, oil, chemical industry, etc.
