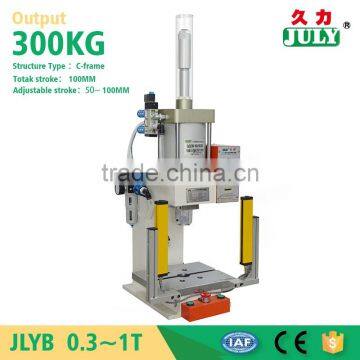

JULY Hot Sell Customized Logo 0.3 Ton Punching Machine
- 200 Set / Sets per Month
- Shen zhen
- T/T Credit Card PayPal
You May Like
-
JULY New Arrival Factory Directly Sale 0.5 Ton Press Brake
-
JULY new products good quality manual hand punch press machine
-
DongguanJULY newest factory made manual machine for making tin can
-
JULY new style factory direct sale tin can stamping machine
-
low cost most popular press machine for bearing
-
quality primacy JULY brand high precision ultrasonic welding machine
Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Hydraulic | Place of Origin | Guangdong, China | |
| Brand Name | JULY | Model Number | JLYB-300KG | |
| Voltage | 220V | Power(W) | AC220V 50HZ | |
| Weight | 65kg | Dimension(L*W*H) | 320*372*920MM | |
| Certification | CE | Warranty | one year | |
| After-sales Service Provided | Overseas service center available |
Product Description
JULY ® was founded in 1985 with more than 31 years of R&D and OEM experience.
|
Drawing
Specification
Model | JLYB-100 | JLYB-125 | JLYB-160 |
Working Height | 200 | 200 | 200 |
Cylinder Specification | Ø100*100mm | Ø125*100mm | Ø160*100mm |
Adjustable Stroke | 50mm | 50mm | 50mm |
Power | AC220V,50Hz | AC220V,50Hz | AC220V,50Hz |
Driving Pressure | 0.4-0.7MPa | 0.4-0.7MPa | 0.4-0.7MPa |
Weight | 65kg | 70kg | 75kg |
Driving Pressure | Theoretical output | ||
0.4 MPa | 294Kgf | 458 Kgf | 804 Kgf |
0.5 MPa | 368Kgf | 573Kgf | 1005Kgf |
0.6 MPa | 442Kgf | 688Kgf | 1206Kgf |
0.7MPa | 515Kgf | 802kgf | 1320Kgf |
Characteristics
1.It is pneumatically driven,export thrust,simple to operate.
2.No hydraulic system noise, can save electricity consumption and thus reduce production costs.
3.Adjustable cylinder stroke and customized for special request.
4.Easy to adjust the output, the required pressure can be reached by simply regulating the air pressure.
5.Safety and humanity design that ensure operation comfort and long lifespan .
6.Allows adding heating modules and temperature controller, as well as forcing transducer additionally.
7.Available working platform: 500*560*610mm (L*W*H).
Application
Assemblage,molding,pressure distribution,punching,riveting,burrs treatment,etc.,are widely used in metal stamping forming.small motor into the rotor voltage,electronics group,riveting molding,etc.
Packing
Shipping
| By sea | By air | By express |
| Cheapest but longest option 18~30 days by sea delivery, best for large quantity order. | More expensive than sea delivery, But cheaper than express 5~7 days by air to airport. | Door to door service,the fastest and most expensive one, 3~6 days by express. |
|
Direct Factory 1.Our first factory founded in Taiwan in 1985 . 2.Two our own,factories in China. 3.ISO 9001:2008 Certificate.
R&D team
Quality is our culture
| Application
Certificate
|
Our Advantages
1. Various style for each products and completely series pneumatic products for you to choose from.
2. Large stock for fast shipping.
3. High quality with competitive price
4. Sample order & small quantity order is ok
5. Customize according to your special demand.
6. Provide free products information.
7. Reliable quality assured and active after-sell service
Service Tips
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Sunday and Chinese holidays.
If you have any other requirements or questions, welcome to visit our website , or just contact us directly . Tha nk you!
FAQ
Q1. What is your term of payment?
A: Usually, we accept T/T, irrevocable L/C at sight. For regular orders, we prefer 30% in advance, 70% against the copy of B/L. For long term business relations, we have more advantage terms for payment.
Q2. What is your terms of delivery?
A: We accept FOB, CIF, DDU, DDP etc. You can choose the one which is the most convenient or cost-effective for you.
Q3: What is the lead time?
A: It usually takes 15 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was nonstandard, we have to consider extra 10-15 days.
Q4: Can you produce according to the drawings?
A: We can accept customers' customization, but we need to communicate with our engineers about the production.
Q5: Can you use the spare parts that customers specify the brand?
A: We are very willing to accept the spare parts that customers specify the brand to product assembling, but we need to charge some assembling cost.
Q6: Can you supply the product mold or other related accessories?
A: We can on behalf of the procurement according to the customer's drawings and requirements. After the product mold and accessories are installed and debugged in the machine, it will be sent to you shipped with the machine.
Q7: Do you accept the factory inspection?
A: Yes, we are very happy to accept customers to visit. We are a manufacture with a very rich R & D and production experience for many years.
Q8: How to solve the quality of after-sales?
A: We have a professional after-sales service team to solve your problem at the first time. For product quality problems during the warranty period (non-human damage), we will be maintenance or replacement for you unconditionally. For man-made damage, we only be charged for the maintenance costs.
Q9:What is your shipping method?
A: We respect the client's choice, by sea, by air or by express.
Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM, each step is in compliance to the standards.
