Yongxin Hole Puncher for Metal
- SHANGHAI
- T/T Money Gram
You May Like
Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Mechanical | Place of Origin | Jiangxi, China | |
| Brand Name | YONGXIN | Model Number | JG23-40 | |
| Voltage | 380V | Power(W) | 4KW | |
| Weight | 3180KG | Dimension(L*W*H) | 1600*1180*2310MM | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
| Nominal force | 400KN |
| Nominal stroke | 6mm |
| Slide stroke | 120mm |
| SPM | 55/min |
| Max die height | 220mm |
| Die height adjustment | 80mm |
| Between slide center and frame | 260mm |
| Bolster size | 480*710mm |
| Bolster opening | Φ220*25* Φ 180mm |
| Bolster thickness | 80mm |
| Bed opening | Φ200*150*300mm |
| Slide area | 270*320mm |
| Shank hole | Φ50*70mm |
| Max.inclined angle | 25° |
| Between colums | 300mm |
| Main motor power | 4KW |
| Outline dimension | 1600*1180*2310mm |
| Net weight | 3180kg |
1.Horizonal crankshaft
2.Rigid rotated key dutch
3.Manual die height adjustment with scale display.
4.Control by PLC with international brand.
Main usage of Best seller round lid making machine for punch
This machine is used to punch the tinplate can lid

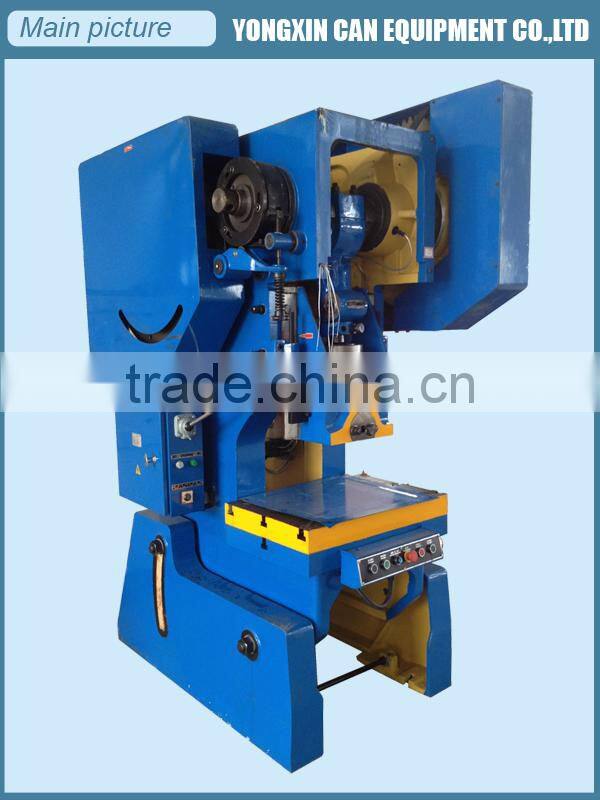

Main pictures of Best seller round lid making machine for punch

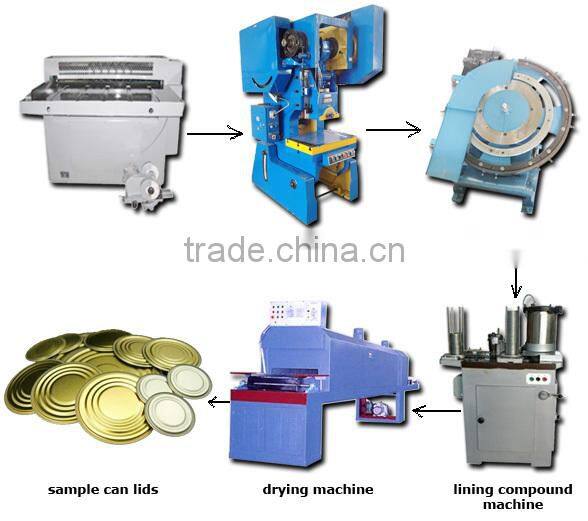

We also offer can lid production line
These punch machine Export to many countries

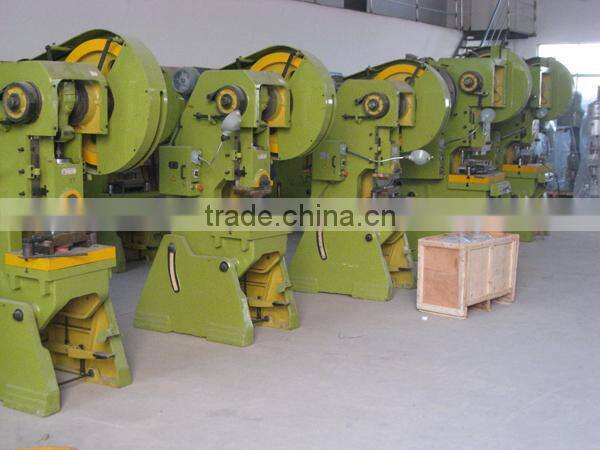

below picture show you the machines before packing in our factory

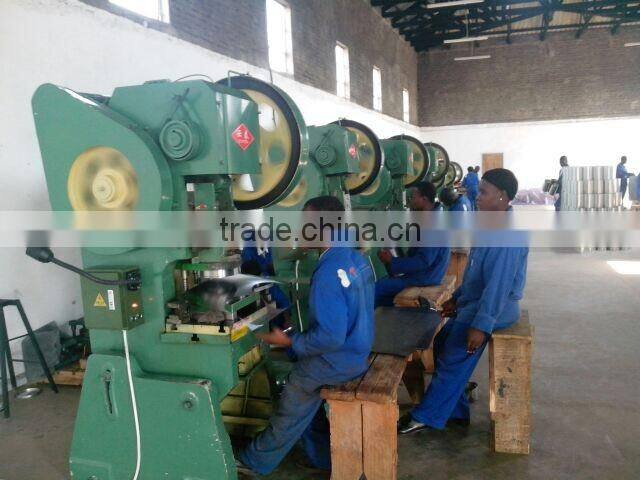

Picture of our customer were using the machine to making tin can lid.
FAQ
Q:Why choose us?
A:Cause we have leading edge technology for giving the best machines for a wonderful can.
Q:Does our machines available for Ex works and easy to export?
A:That’s a big convenience for buyer to come to our factory to get machines cause our products all don’t need
commodity inspection certificate and it will be easy for export.
Q:Is there any spare parts for free?
A:Yes! We can supply free quick-wear parts for 1 year,just rest assure to use our machines and themselves are
very durable.
Q:How can the price be most reasonable?
A:We handle the price to a reasonable level and it can be adjust according to customer's needs.Then, the price will
eventually based on request.
Q:What if I want to see the production process?
A:That's not a problem,we have many video from our customer's company.If you want to see it right front you,we will
contact our customer over the world and let be there to have the visit.
Q:Is it possible send engineer overseas to fix the machines?
A:Of course yes! This will be our after-sales service.
If you want to know more information about this machine,Please contact us!
Tel: +86-792-8326978 Fax: +86-792-8326978
