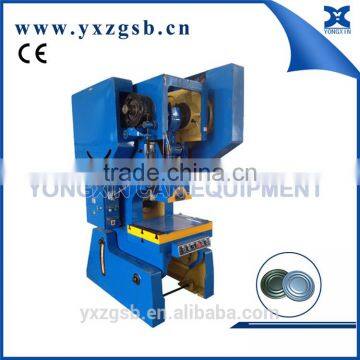

2016 Automatic Driven Punch Electric Press Machine for Can Lid
US$ 1,000 - 2,000
/ Set
1 Set(Min. Order)
- Any Port In China
- T/T
You May Like
Product Details
| CNC or Not | Normal | |||
| Power Source | Mechanical | Place of Origin | Jiangxi, China | |
| Brand Name | YongXin | Model Number | JG23-40 | |
| Voltage | 380V | Power(W) | 4KW | |
| Weight | 3180KG, 3180KG | Dimension(L*W*H) | 1600*1180*2310mm | |
| Certification | CE | Warranty | One Year, one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
2016 Automatic Driven Punch Electric press machine for can lid
Specification
| Nominal force | 400KN |
| Nominal stroke | 6mm |
| Slide stroke | 120mm |
| SPM | 55/min |
| Max die height | 220mm |
| Die height adjustment | 80mm |
| Between slide center and frame | 260mm |
| Bolster size | 480*710mm |
| Bolster opening | Φ220*25* Φ 180mm |
| Bolster thickness | 80mm |
| Bed opening | Φ200*150*300mm |
| Slide area | 270*320mm |
| Shank hole | Φ50*70mm |
| Max.inclined angle | 25° |
| Between colums | 300mm |
| Main motor power | 4KW |
| Outline dimension | 1600*1180*2310mm |
| Net weight | 3180kg |
1.Horizonal crankshaft
2.Rigid rotated key dutch
3.Manual die height adjustment with scale display.

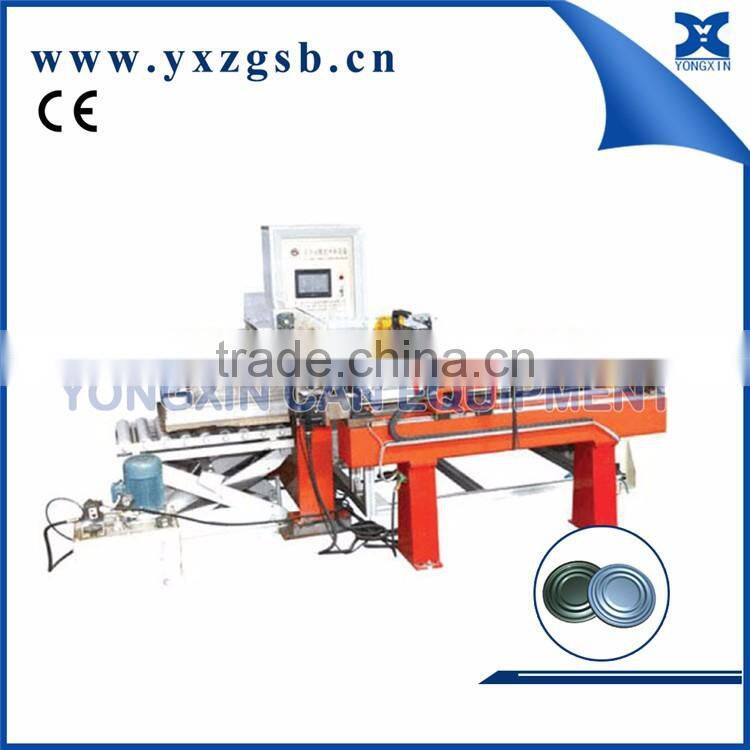

Production line
