Fashion Vacuum Diaphragm Pump Design
- Tianjin Dalian Qingdao Shanghai Shenzhen port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Place of Origin | Henan, China | Brand Name | ZZKD | |
Model Number | MPC601 T | Theory | Vacuum Pump | |
Structure | Screw Pump | Usage | Air Pump | |
Power | Electric | Standard or Nonstandard | Standard | |
Fuel | Other, Electric | Pressure | Low Pressure | |
Application | Other, Metering, Labs Research |
Product Description

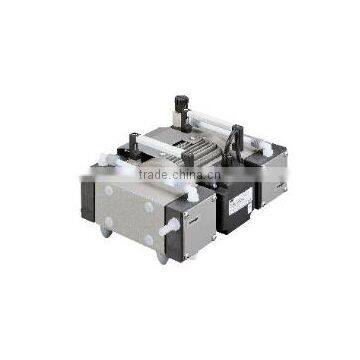

Fashion Vacuum Diaphragm Pump Design
Product Description:
It is particularly useful for resistance to chemical corrosion, or take a long uninterrupted operation of the occasion.
All parts in contact with the gas have done Teflon (poly tetra fluoro ethylene PTFE) and treated with carbon fiber reinforcement, fully guaranteed pump chemical resistance.
Septum using a sandwich structure (i.e. a multi-layer structure) to increase the toughness and strength of the diaphragm. Diaphragm pump is the international forefront of the development of products, and is becoming more widely used.
Diaphragm main applications:
1 Vacuum Distillation
2 Reactor
3 Vacuum filtration
4 Vacuum concentration
5 Vacuum drying
MPC 301 Z | MPC201 T | MPC601 T | MPC1201 T |
| | |
Tech. Data:
Product | Motor Power | Ultimate Pressure | Pumping speed | Dimensions | Weight | Connection | |
Model /German ILMVAC | W | Mbar | m3/h | L/min | W/D/H | KG | Hose dia. mm |
MPC 301 Z 230V 50Hz | 1800 | < 8 | 2.3 | 38.3 | 230*265*169 | 11.2 | 8 |
MPC201 T 230V 50Hz | 90 | < 2 | 2.0 | 33.1 | 200*260*150 | 10.3 | 8 |
MPC601 T 230V 50Hz | 180 | < 2 | 4.5 | 75 | 230*380*169 | 18.3 | 8 |
MPC1201 T 230V 50Hz | 440 | < 2 | 8.3 | 135 | 540*300*240 | 32.8 | DN16KF (Flange) |
Main advantage :
1 Vacuum stable and easy to control
2 Do not consume water resources, environmental performance
3 Small size, light weight
4 Easy to use and clean
5 Sustainable and stable work
6 Maintenance and repair easy
Packaging:
-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.
Shipping method | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you. |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port, which you can have a local shipping agent to do for you. |
Warranty & Service
1. One year warranty service after the product was sold.
2. In the warranty period, users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
4. Please read the product manual carefully before using this product. Operating the product strictly according to the operation method.
5. Users encounter problems when using our products , pls contact us by telephone or email, we will be ready to provide consulting, maintenance and other services immediately.
