Waste ABS Recycle to Oil High Yield Pyrolysis Plant No Emission Huayin

Nowadays, natural energy is getting less and less, yet daily rubbish is becoming more and more.

Huayin can not produce natural energy, but we can turn trash into energy, which can be used as fuel in many industrial fields.

The Essence of Hua Yin Group

Over 20 years' experience of inventing, producing, and exporting refinery machines to turn our daily rubbish into fuel oil , diesel, and carbon black, and going through hundreds of experiments to create profit from waste and protect our environment.

Introduction of main parts and features of pyrolysis plant

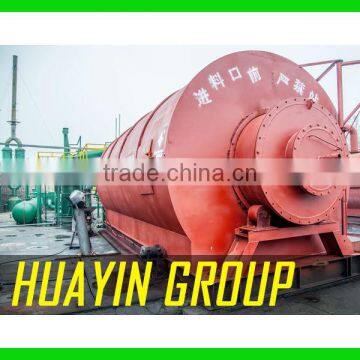

Reactor

1. Made by Q345R boiler plate. Also can choose SS310, 310S+Q345R

2. Auto-welding both inside and outside

3. With rock wool insulation board

Auto-feeder

1. 50-ton hydraulic pressure to feed about 10 tons in 2hs

2. Can feed all types of materials

3. Both save labor and time

Catalyst chamber

1. Improve oil yield

2. Reduce the speed of oil gas so it can be better cooled

3. Clean oil

Oil-water separator

1. Separate oil and water

2. Collect heavy oil

3. Water sealing design to keep safe

Condenser

1. The oil gas is cooled separately and thoroughly by small pipes inside condensers

2. Light oil is collected here

Vacuum device

Keep machine running under normal pressure

Daily capacity

6/8/10/12 ton

Reactor material

Q345R, SS310

Thickness of plate

16mm/18mm

Accessories material

Q235R

Weight

30-35 ton

Power

22KW-25KW

Space needed

300 m2

Labor needed

4
