2012 new design waste to energy power plants from waste tyre plastic rubber raw material

Place of Origin	Henan, China		Brand Name	Huayin
Model Number	HY-6-10T

Specifications

1 Raw materials - scrap tyres, waste plastic , waste rubber
2.By products
A- Furnace oil
B- Carbon balck
C- Steel wires

Detailed information of products

A. Raw material: scrap tires, waste plastic, waste rubber

B. The total production consumption:

1. Power 20kw per hour for pyrolysis and distillation machine.

2. Cooling circuit water 20 days, only little evaporation.

3. Space for machine: 10*20m (width*length)

4. Workers per shift: 4 workers which can be divided by two groups.

Information about raw material and final products

1. Average oil output rate:

Truck tires       45%

Car tires       40%

2. Final products:

Crude oil      45%-50%

Carbon black   30%

Steel wires     12%-15%

Pyrolysis gas   5%-10%

Product features:

1. No need to crush tires, we can feed the whole tires into the reactor. Save manpower and improve productivity.

2. The two water sealing devices, safety-valve, auto-alarm, vacuum device, pressure gauge and thermometer guarantee the safety.

3. Specialized catalyst improves oil yield and oil quality.

4. Tail gases recycle to the furnace. Save energy and environmental friendly.

5. All cooling waters are circulatory. Great cooling effect.

6. Flue gases are processes by dust removal device. Reach emission standard. No pollution.

Specification of all equipment in this production line

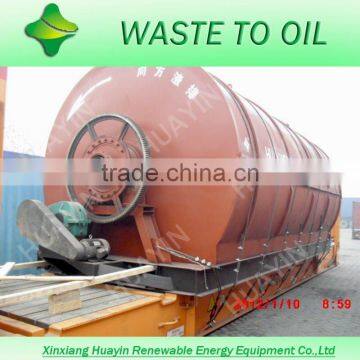

Pyrolysis machine for converting waste tires or plastic into fuel oil and carbon black .

Technical parameter of equipment is as following:

Main Technical Parameter
No.	Items	contents
1	Model	HY-6T	HY-8T	HY-10T
2	Complete tyre feeding capacity	6T	8T	10T
3	Cracked tyre feeding capacity	9-10T	13-14T	15-16T
4	Raw Material	Tire/Plastic/Rubber	Tire/Plastic/Rubber	Tire/Plastic/Rubber
5	Reactor Size	D2200mm*L6000mm	D2600mm*L6600mm	D2800mm*L6000mm
6	Diameter Size of Feeding	720mm/1200mm	720mm/1200mm	720mm/1200mm
7	Reactor material	Q245R /Q345R boiler plate	Q245R /Q345R boiler plate	Q245R /Q345R boiler plate
8	Reactor Thickness	12/14/16/18/20mm (ordered by requirement)	12/14/16/18/20mm (ordered by requirement)	12/14/16/18/20mm (ordered by requirement)
9	24-hour Capacity	6 ton	8 ton	10 ton
10	Oil yield	2.7 ton	3.6 ton	4.5 ton
11	Rotate Speed of Reactor	0.8 turn/minute	0.8 turn/minute	0.8 turn/minute
12	Main Motor Power	3 KW	3 KW	3 KW
13	Driving Method	Gear drive	Gear drive	Gear drive
14	Cooling Area of Condenser	67.231sqm (ordered by requirement)	67.231sqm (ordered by requirement)	67.231sqm (ordered by requirement)
15	Cooling mode	Water Cooling	Water Cooling	Water Cooling
16	Operating Pressure	Normal	Normal	Normal
17	Weight	27 ton	34 ton	39 ton
18	Working Form	continuous feeding, batch producing	continuous feeding, batch producing	continuous feeding, batch producing
19	Noise (db)	≤75	≤75	≤75
20	Delivery Time	7-10 Days	7-10 Days	7-10 Days
