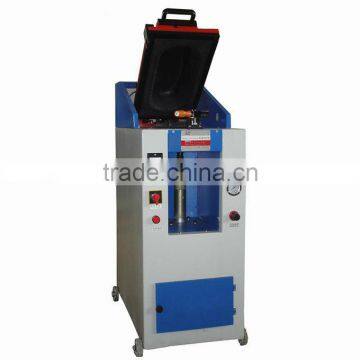

Pneumatic One Head Cover Type Shoe Sole Attaching Press Machine
Negotiable
/ Set
1 Set(Min.Order)
- Ningbo/Shanghai
- Credit Card
You May Like
Product Details
| Condition | New | Application | Shoe Sole Attaching | |
| Automatic Grade | Semi-Automatic | Production Capacity | 180pairs/Hr. | |
| Place of Origin | Zhejiang, China | Brand Name | Tonghe | |
| Model Number | TSP 2 | Voltage | 220V | |
| Power(W) | Pneumatic | Dimension(L*W*H) | 440*780*1130mm | |
| Weight | 172KG | Features | Simple Operation | |
| Certification | CE/ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
USE & CHARACTERISTICS
1.This shoe compressing machine is applicable to various shoes with bottom bonded reinforcement
when pressing;
2.Set the pressure and time well with a pressure regulator & time relay respectively,and then put the
shoe sole part upward into the gas bucket,lock it and the compressed air starts automatic filling and
discharging to do the all-respect reinforcement & compression;
3.It’s simple and convenient to operate, affordable, really an ideal equipment for sole adhering.
Pressure | 0.3-0.5MPa |
Compression Time | 0-30secs. |
Speed | 0-180pairs/Hr. |
Voltage | 220V 50HZ |
Overall Dimensions | 440*780*1130mm |
W.T | 172KG |
