Rogowski coils sensor
- 10000 Piece / Pieces per Month
- Shanghai
- T/T PayPal Other Cash
- 5 days
Product Details
| Brand Name | POWERWAY | Place of Origin | China | |
| Model Number | R24 |
Product Description

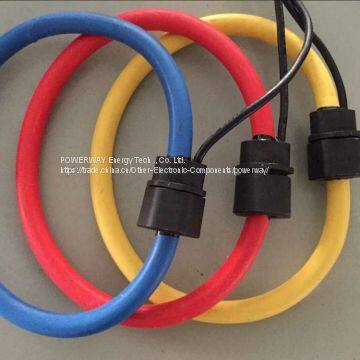

Flexible Rogowski coil
RosCoils uses open-loop structure, can be used to measure the large size (conductor dimension≥3m), out-of-shape or narrow conductor current (especially when traditional forcipate current probe can’ t measure the current, flexible rogowski coil current sensor can do it conveniently). Lead wire which passed through by tested current can across coil without cut. It can sense the current in rogowski coil, and measure the current in tested wire.
High-accuracy rogowski coil A-FCT
Application: ● Power meters |
Specification:
Current range(rms) | 0-50000A AC |
Output signal(di/dt) | 240 mV/1000A @ 60 Hz |
200 mV/1000A @ 50 Hz | |
Accuracy(typ.) | ±0.5% of reading (most accurate position, 25℃) |
Linearity (10% to 100% of range) | ±0.2% of reading |
Bandwidth (-3dB) | 2Hz to 100kHz |
Output sensitivity tolerance | ±2% |
Max. Response time(10 to 90%) | 1us |
Phase error | ≤1% |
Conductor position sensitivity | ±1% of reading |
Operating temperature | -20℃to 70℃ |
| Rated current (A) | Coil Length (mm) | Cable Length (m) | Color |
| 250A | 300mm | 1m | Black |
| 500A | 520mm | 2m | Yellow |
| 900A | 800mm | 3.5m | Red |
| … | … | … | Green |
| 50000A | Custom lengths | Custom lengths | Blue |
For example: FCT-1000-300-1-B means this high-accuracy flexible rogowski coil has a rated primary current 1000A, 300mm coil , 1m cable and it is black.
| Available Rogowski coil connector | ||||
| BNC | RJ45 | RJ12 | banana type | 6-pin S-video |
