hydraulic hot press machine
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | haiyong | Model Number | BY214 | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
hydraulic hot press machine1) door hot press machine
2) adjustable pressure
3) one layer hot press

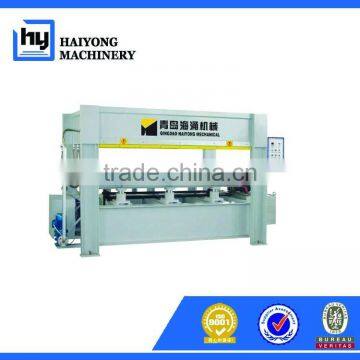

hydraulic hot press machine BY 214
Specifications
1) door hot press machine
2) adjustable pressure
3) one layer hot press
4) Best solid hot platen
Model | BY214*8/120(1)H |
Total pressure | 120ton |
Feeding direction | Transversal |
Dimension of hot platen | 2500x1300x42mm |
Number of layers | 1 |
Number of platens | 2 |
Opening | 300mm |
Diameter & stroke of Oil cylinder | 100mmx 300mm |
Number of cylinders | 6 |
Low pressure pump flux | 63L/min |
High pressure pump flux | 2.5L/min |
Heating medium | Steam or thermal oil |
Frame structure | Welded |
Working pressure of high pump | 25Mpa |
Total power | 4.5Kw |
Overall dimension (Approx) | 3600*1600*2000mm |
Net Weight (Approx) | 7600Kg |
Thermal Oil furnace power | 37.5Kw |
