ultrasonic sound intensity measuring meter

Specifications

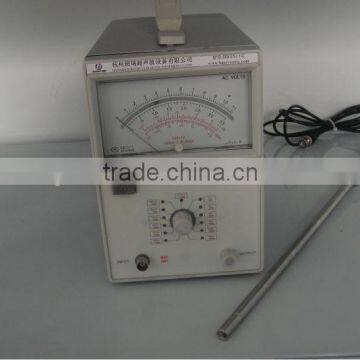

Ultrasonic power(sound intensity) measuring meter   Type BR0511C

It is in a certain liquid that proceeding ultrasonic cleaning, ultrasonic sonochemistry treatment, ultrasonic scales control and removal, ultrasonic dispersion and crushing ect. The  ultrasonic intensity (sound power ) in liquid sound field is the most important Index of ultrasonic system. It influences on application effect, work efficiency of ultrasonic equipments. The ultrasonic power (sound intensity) meter can quickly and conveniently test sound intensity and read out numerical value directly.

The characteristic is ignoring the power of source of sound, only care the

ultrasonic intensity of measuring point; this is the most important data we

care. Ultrasonic Power Measuring Meter not only has interface of signal

output in real-time, matched with frequency Analyzer, but also measuring

all kinds of Ultrasonic distributing and intensity.

According to different occasions of use, the ultrasonic power (sound intensity) meter can be made in two types: portable and online monitoring.

*The rang of ultrasonic sound intensity: 0~150Wcm²

*The rang of frequency: 10KHz~1MHz

*The length of probe: 30cm, 40cm, 50cm, 60cm

*Service temperature: 0~500°C(high-temperature)

*Service medium: liquid  PH4~PH10

*The response duration: less than 0.1 second

*Service electrical power: AC  220V,1A  or portable power supply can be charged
