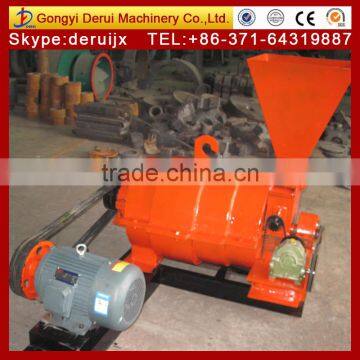

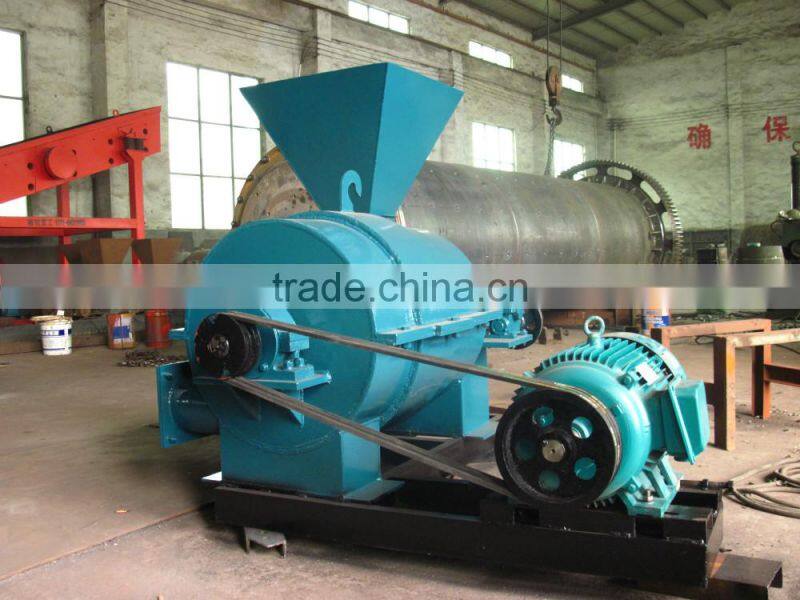

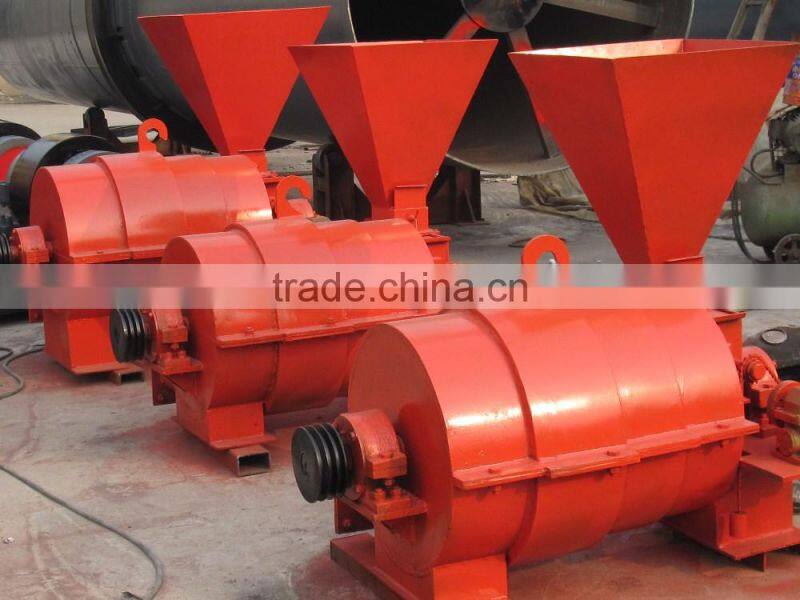

Pulverized coal machine for melting furnace

Pulverized coal machine for melting furnace

Pulverized coal machine is widely used for industrial boiler (such as heating, annealing, tempering), heating boiler, conduction oil boiler (drying, vaporing) and other kinds boilers. It can be used instead of fuel oil, gas, and electrical heat energy equipment, which can save 50% energy.

Pulverized coal machine structure and working principle:
Pulverized coal machine is consist of feeder, grinding chamber, fan chamber and separator.
Grinding chamber is consist of crushing body, main shaft, coal hammer and lining board.
Fan chamber, installed fixed fan on shaft, spraying coal powder to burner.
At the bottom of separator, connect with machine body, at the top, coal powder conveyor

connect with pipe,
In the cutting edge of separator welded with big size coal powder backflow pipe connect

with material entrance, big size coal back to grinding chamber for grinding again.

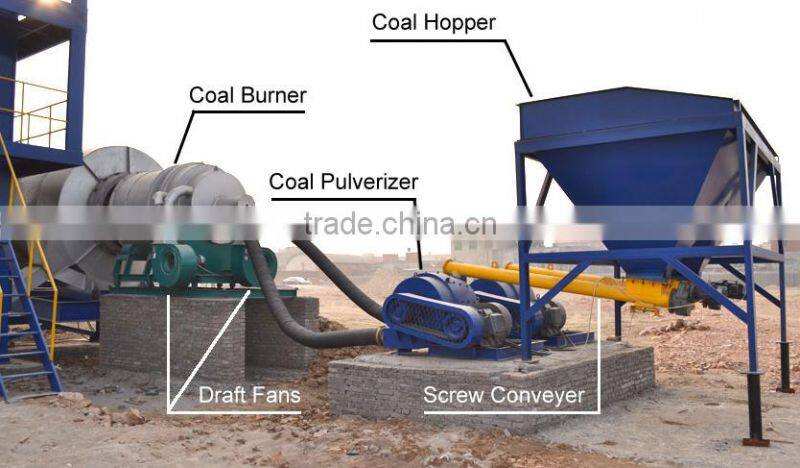

 Coal burner working principle:
In the worksite, a coal burner works with the coal pulverizer and coal hopper usually. The coal in the hopper is conveyed to the coal pulverizer by screw conveyor. The coal pulverizer will crush the coal into pulverized coal. In the coal burner, the pulverized coal mixes with air (High-speed air flow is generated by the draft fan on the coal burner), and is ignited by the oil burning igniter.

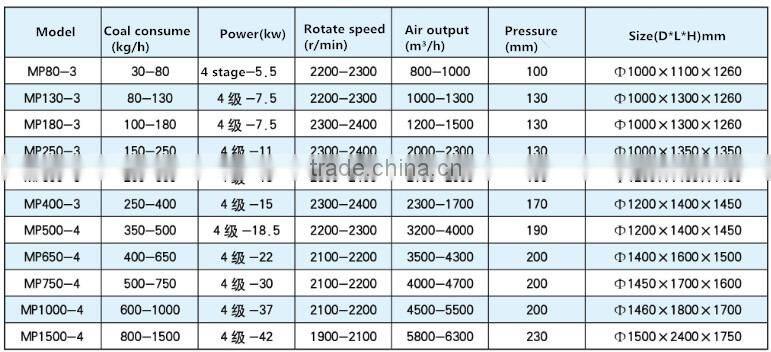

Pulverized coal machine  technical parameter:

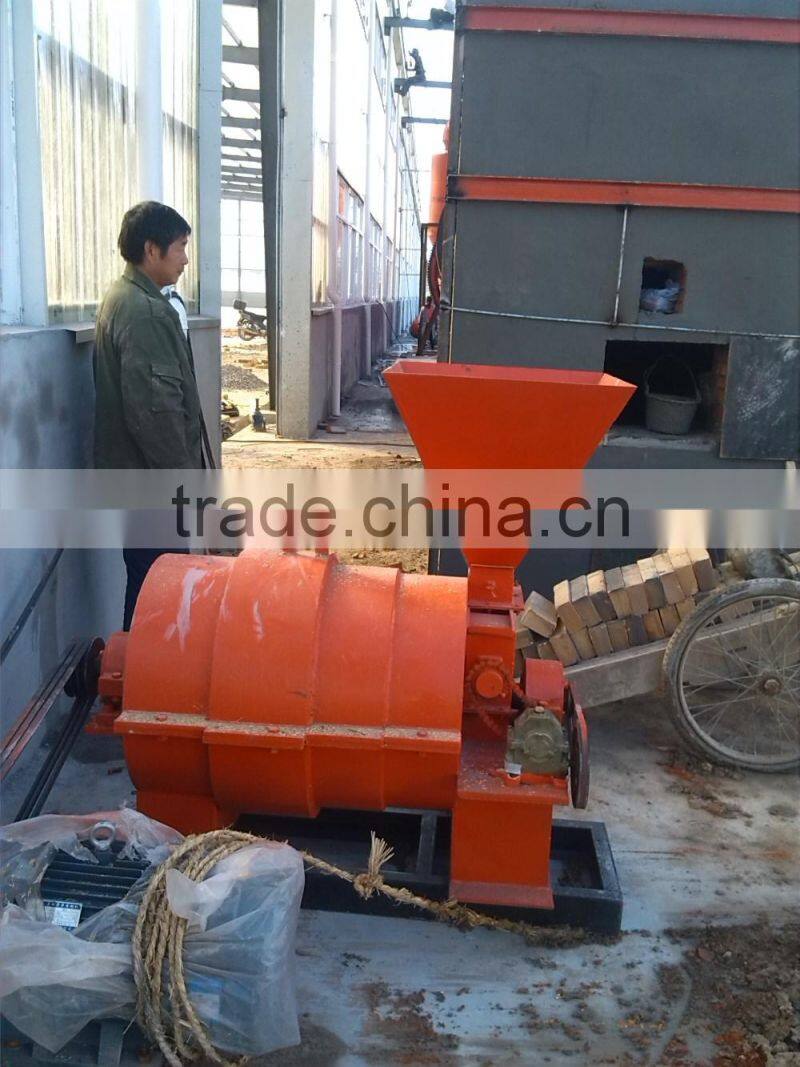

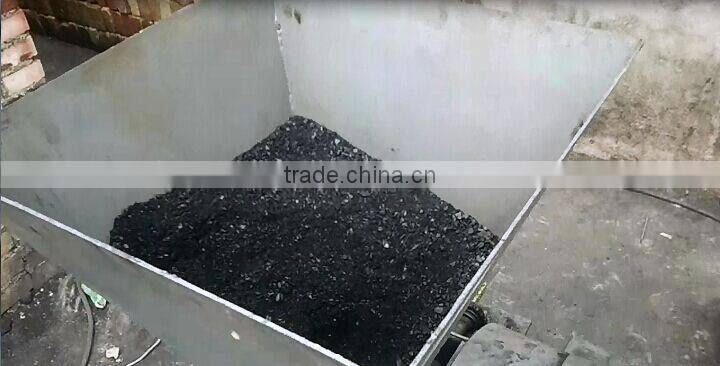

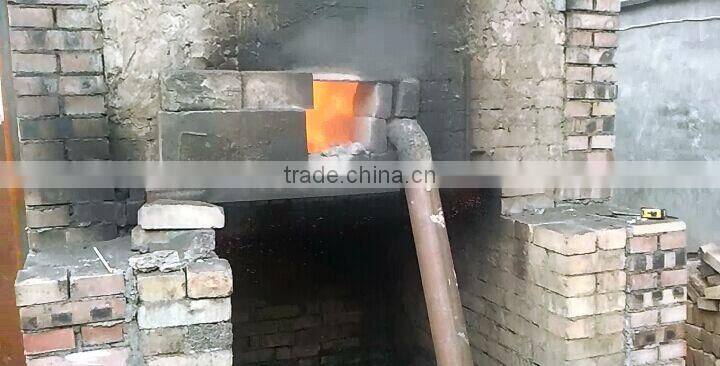

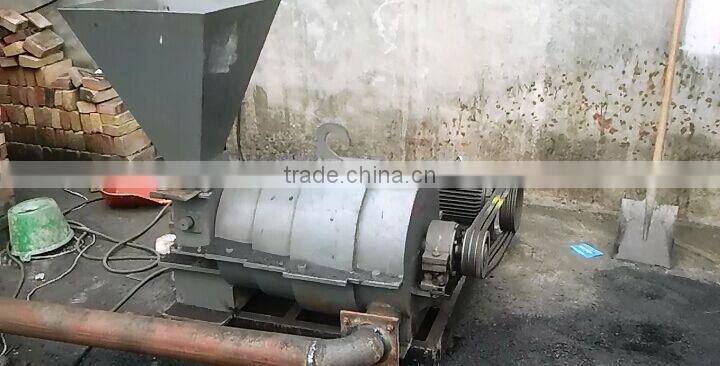

Pulverized coal machine working site:

.

Pulverized coal machine application:

Coal powder burner to be used for drying, annealing, tempering boilers, steam and so on.

Applicable industry: Malleable Iron, foundries, rolling mills, strip mills, cement plants, boiler plant industry.

It can replace oil, gas and electric power thermal energy equipment, which can save 40-50% of energy.

Pulverized coal machine  shipping:

 Pulverized coal machine installation:
