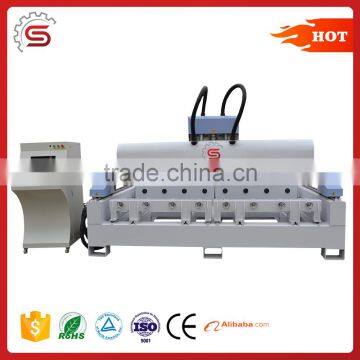

High Quality STR3012-8S 4 Axis CNC Router Woodworking Carve Machine

Performance:

1.The bed lathe is made of heavy duty structure, analyzed and designed with FEA, relieving stress, so the working table is more stable.

2.Three linear bearing to drive the Y shaft, which improve speed and more stable, it can cut repeatedly. Moreover, the Y shaft can move with higher resolution and more stable.

3.X,Y,Z Axis Line Rails and+ Ball Screw Transmitting. Higher Resolution and Speed, more powerful cutting that can save the cost and improve the efficiency in heavy cutting. We use PMI Square Rails and Ball Screw

4.The Y axis can move and the machine can do 4Axis  work with the A axis(Rotary axis).

5.With High speed spindles that can do mass production work, highly save the time and improve the efficiency in working.

6. The Max. Processing speed can reach 20000mm/min, Max. traveling speed can reach 45000mm/min.

Main Parts of the Machine:

Parameter:

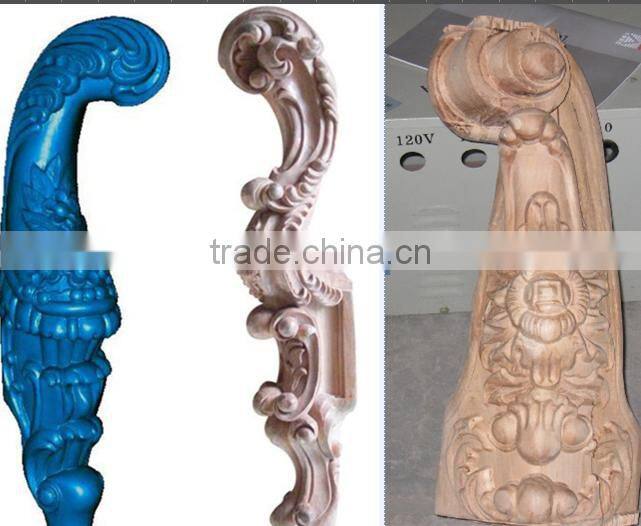

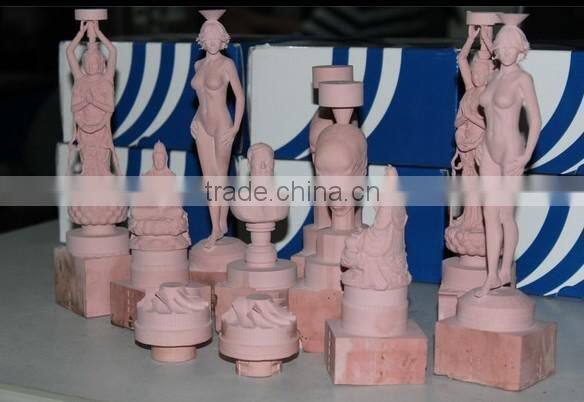

The sample picture:

1.ShippingWe have rich experience in exporting machines to the world and can supply all kinds of different shipping terms!

2.Timely delivery and transportation.

We have years of manufacturing woodworking machine.OEM and ODM service available.

Sample Service :
If you want to test the performance of machine ,we can sent sample to you with cost offer.

Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.

After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.

3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas.

Qingdao Steeler woodworking machinery co.,ltd is the professional production of various kinds ofsanding machine,polishing machine and other mechanical equipment manufacturers.The company

produced sanding machine which is a combination of Germany,Italy,Taiwan's good mechanical

properties,structure and the advanced polishing machine not only draw lessons from the foreign

advanced technology,and highlights the Steeler people development innovation,enterprising spirit,continuous research and development to adapt to the market,make our polishing machine series

equipment industry's leading edge products.
