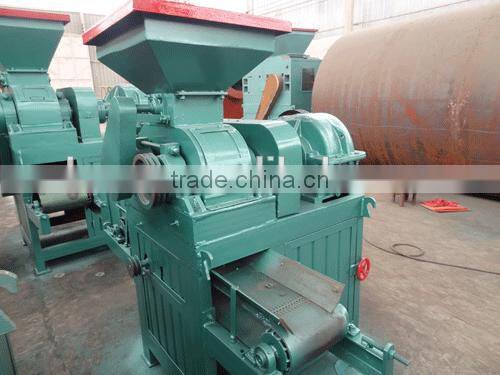

Environmental Dry Powder Briquette Machine

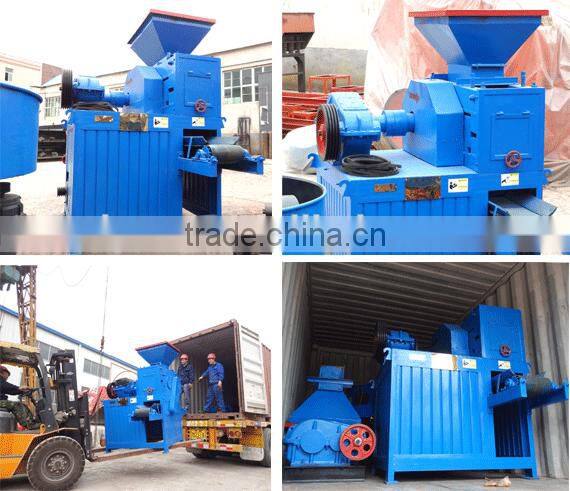

Environmental dry powder briquette machine

With 30 years experience, we could offer you both a single briquette machine and complete production line, such as feeder, binder mixer, crusher and mixer, briquette machine, dryer and conveyor. The whole machines are made by ourselves, that means the quality can be guaranteed.Welcome to our factory to test all these machines at your free time .

Introduction

This briquette machine is used for pressing coal powder, iron, coke, aluminum powder, iron filings, iron oxide skin, toner, charcoal powder, slag, gypsum, tailings, sludge, kaolin, activated carbon, waste materials powder and waste residue. It is also widely used in refractories, electric powder plant, metallurgy, resource, chemical and other industries.This machine is energy-saving and easy to transport.Also,it increases the use of the waste materials and economical benefits.

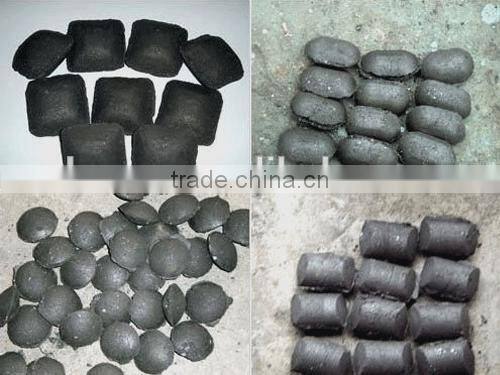

Final product produced by our briquette machine

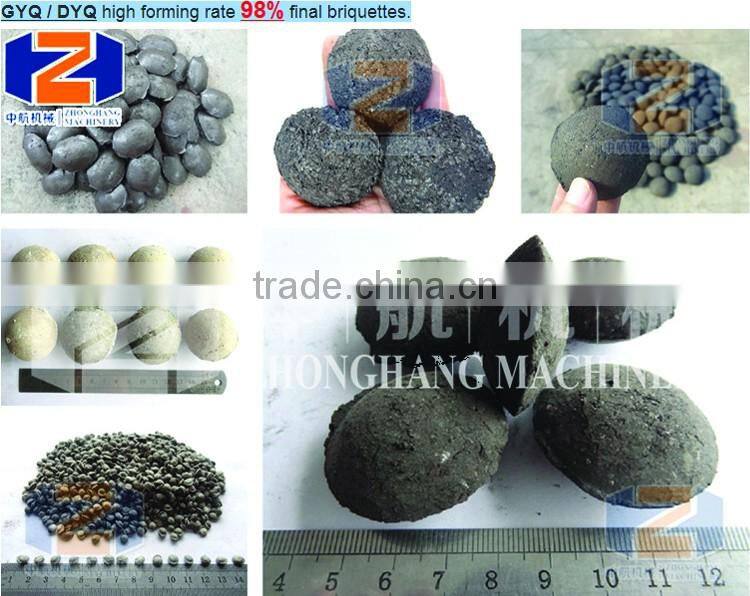

High density products

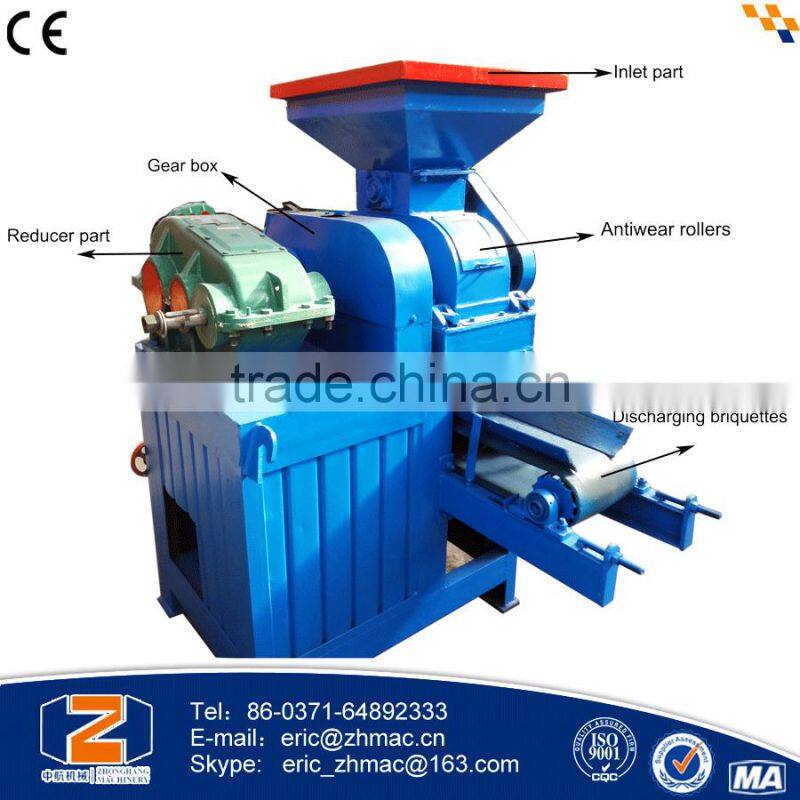

The structure

The coal powder ball press machine is mainly consisting of three parts: the feeding part, The transmission part, the Molding parts.

(1). Feeding part, mainly to realize feeding materials to the main machine quantitative, and make sure materials can enter into the rollers uniformly .

(2). The transmission part: the main driven system is electric motor--Triangle strip--speed reducer--open gear--roller.

(3). The molding parts: mainly referring to the host part, the core part is roller.

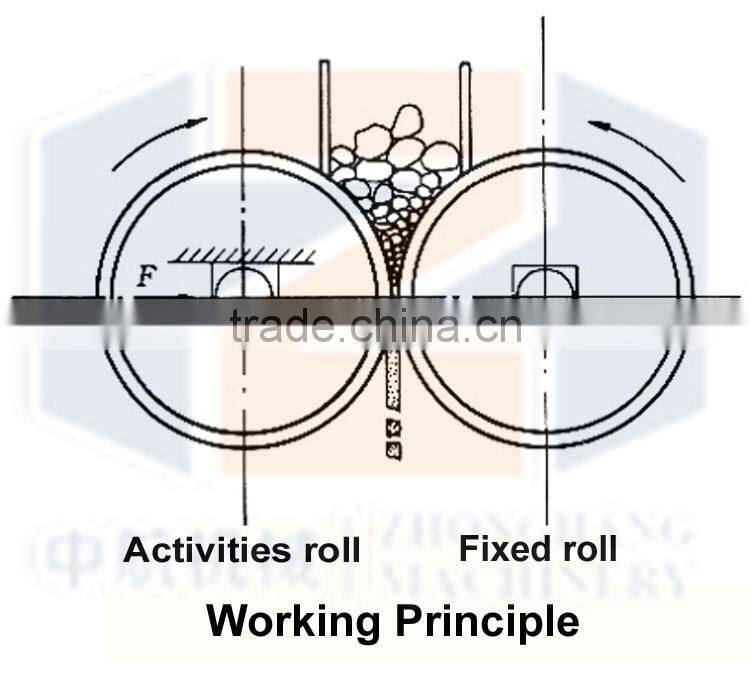

Working Principle

This series of briquette machine will pass the power on to the two pressure roller through the reducer.

The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak.Tremendous pressure in the role of line, the materials become a finished product from the powder ball.

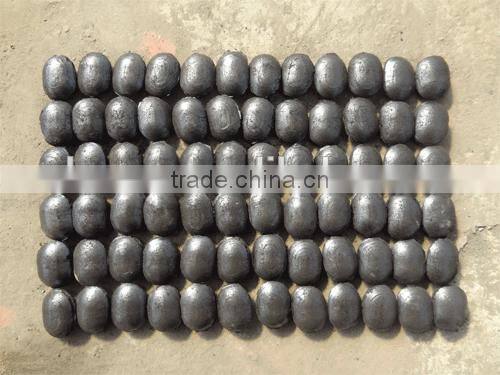

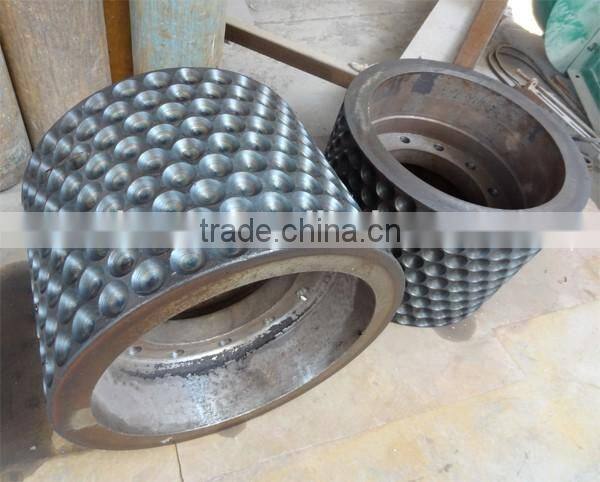

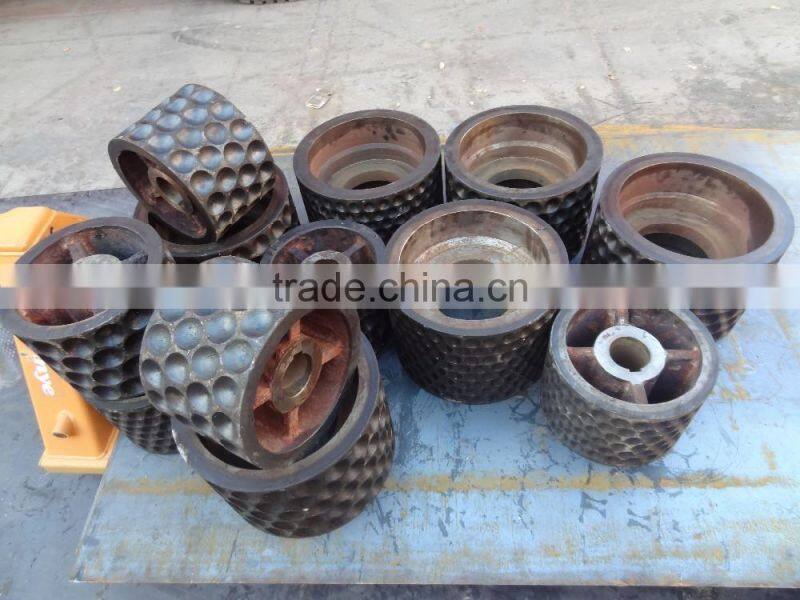

Molds and Samples of the finished coal briquettes

The material of the coal ball press machine could be 65 Mn or 9crsMo, or alloy steel.

Generally, there are two rollers type or four rollers type.

The shape of the finished coal briquettes could be egg shape, square shape, pillow shape etc.

The size of the finished coal briquettes is 30-60mm, and we can also offer it according to your  requirement.

The finished coal briquettes have the features of energy conservation and environment protection, convenient to transport, improving the utilization rate of the waste material, having good economic and social benefit.

Extruder moulds

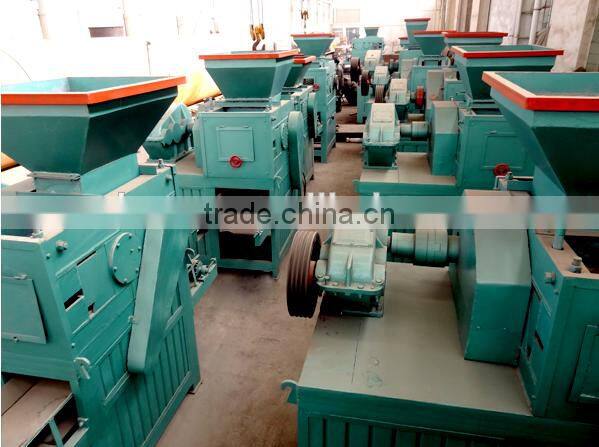

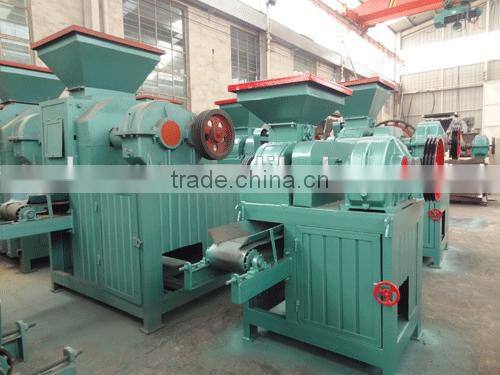

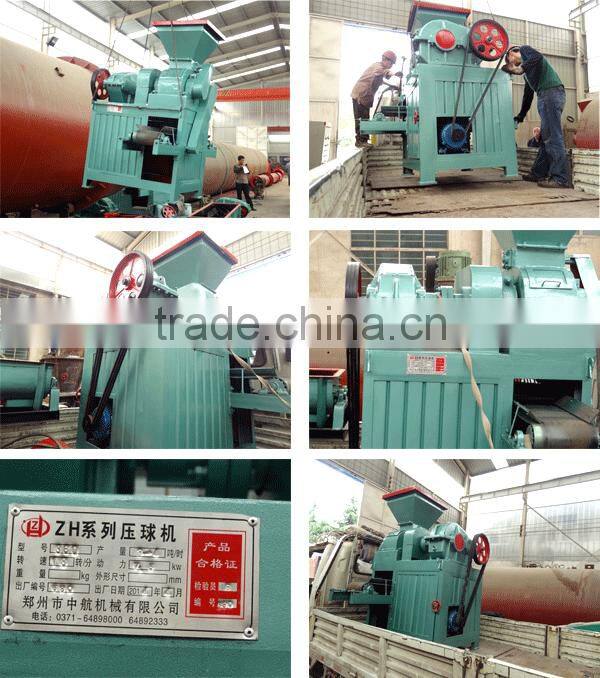

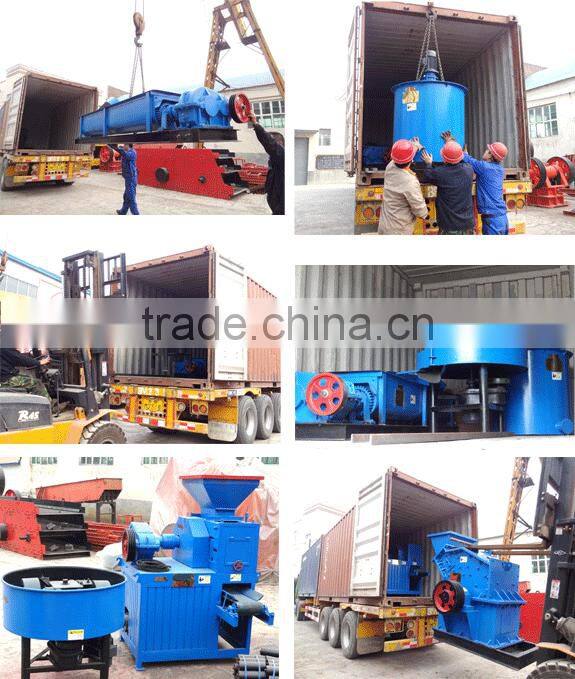

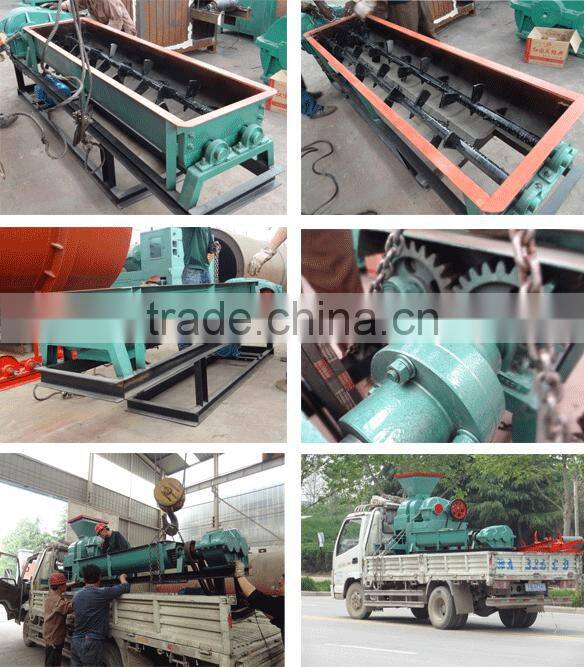

Real Manufacturer and Factory Products

Features

The coal ball briquette press machine is used to process the coal powder into coal briquettes. Also it is used to press charcoal powder, iron powder, coke powder, aluminum, gypsum, sludge, kaolin and other powders, widely used in refractory, power plants, metallurgy, chemical industry, energy, transportation, heating and other industries.

After-sale service

1.According to the purchase contract,our company can send engineers to help installation.

2.The quality guarantee is 1 year,not including the wearing parts.

3.Collecting customer feedback,solve the real problems faced by customers.

4.Our company supply sapre parts the whole year.

Technical Paramaters

Questions from our engineers:
1) What is your briquetting raw materials ?
2) What is the input size of your raw materials ?
3) What is the dealing capacity per hour that you need ?
4) What is the output shape and diameter of final products ?

Please send your needs to the following contact mode ↓ ↓ ↓ ↓ ↓ ↓
