Lucrative rubber process machine

              Lucrative  rubber process machine

From waste tire to rubber powder, the process is a little complex. During the process, the following machines are essential. Our machines are complete in specification as well as quality and quantity assured. According to your request, we can provide you different capacity of rubber powder devices.

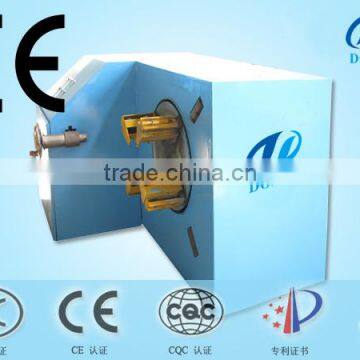

Tire bead cutting machine

Technical parameters:

Function:

1. Low consumption, light in weight, occupying a small area are also the traits of the machine.

2. The tire is easy to be installed, with a short reciprocating stroke, and the machine is productive.

3. The feeding cutter is made of excellent high rigidity wearing proof alloy steel, the service life of the machine is long, and the tool grinding can be repaired by resurfacing welding repeatedly.

Features:

1. Operators and machine are separated when working, easy and safe operation.

2. High efficiency, less labor.

3. Low energy consumption, which can save more cost.

4. Quality assurance can satisfy continuous production.

5. Cutters are made of high-quality strength wear-resistance alloy, long service life.

6. Lower cost maintenance. Machine is widely used and can be matched with all kinds of waste tire recycling line.

Thread rolling machine

Technical Parameters

Function

As a part of rubber powder processing devices, Use physical method to peel the heavy steel wire from the tire sidewall under normal temperature, remain integrity of the steel.

Features:

1,Operators and machine are separated when working, easy and safe operation.

2,High efficiency, less labor.

3,Low energy consumption, which can save more cost.

4,Quality assurance, can satisfy continuous production.;

5,Steel can be drawn completely, high restore value.

6,Key parts are made of high-quality strength wear-resistance alloy, long service life.

Tire Crusher

Technical parameters:

Function:

As a part of rubber powder processing devices, rubber crushing machine breaks rubber strips from the tire crusher into 6-12mm rubber granules at normal temperature and separate the fiber.

Features:

1. Operators and machine are separated when working, easy and safe operation.

2. High efficiency, less labor.

3. Low energy consumption, which can save more cost.

4. Quality assurance can satisfy continuous production.

5. Output size can be adjusted accordingly, meet customer’s different request.

6. Cutters are made of high-quality strength wear-resistance alloy, long service life, can be repaired many times.

7. Output size are uniformed, which is convenient for the next working process, can match oil refinery machine, advance oil extraction rate.

Rubber Secondary Crusher

Technical Parameters:

Function:

As a part of rubber powder devices, rubber crushing machine that breaks the rubber strips from the tire crusher into 6-12mmrubber granules at normal temperature, and separate the fiber.

Features:

1.Particular structural design can absorb the noise and dust generated during production.

2.Exclusive water cooling system to assure the machine running in high speed under normal temperature.

3.Particular cutter structure, in order to cut reasonable, reduces power consumption, length use period.

Rubber Fine Crusher

Technical parameters:

Function:

As a part of rubber powder processing devices, Crush the 6-12mm rubber granules to 1-3mm rubber granules at normal temperature, and separate the fiber from the rubber granules.

Features:

1.Double layer interstitial texture feeding hopper, can absorb the noise and dust generated during production.

2. Exclusive water cooling system, can avoid the rubber become sticky and burned in high speed.

3. It adopts a particular cutter structure, in order to cut reasonable, reduce power consumption, length use period.

Fiber Separator

Technical parameters:

Function;

As a part of rubber powder processing devices, Fiber separator is used to separate nylon fiber from waste tire under normal temperature.

Features;

1. High separate efficiency, wide application scope.

2. Particular automatic recycle airflow design can adjust the specific gravity of the separated materials automatically.

3.Long service life, convenient installation and maintenance.

Fine Powder Milling Machine

Technical Parameters:

Function:

As a part of rubber powder processing devices,Mill the 1-3mm rubber granules to 0.075mm-0.75 mm (30-200mesh) fine rubber powder.

Features:
1. Low power, high output ,low noise , small vibration.

2. It takes special design, grinding disk is easy to dismantle and install ,with long life span.

3.It adopts special structure of cooling water system, can avoid the rubber become sticky and burned in high speed running.

4.It adopts the automatic control method to adjust the gap between millstone, according to different requirements.

Flow chart of  rubber process machine :

Product Line Catalogue of  rubber process machine

About us

Henan Doing Mechanical Equipment Co., Ltd specializes in manufacturing waste tires pyrolysis oil/waste tire recycling rubber powder equipment as well as the rubber powder processing devices. We have mature technology and professional sales team. And we have exported more than 100 sets of equipments to many countries , such as Turkey, Albania, Macedonia, Romania, Mexico,Pakistan, Iran, Ecuador, Poland, India, Malaysia, Bangladesh, Thailand,and so on.

Our factory lies in the south of Xinxiang city with covering an area of 20000 square meters. We have professional engineers and skillful technicians with rice installation and commissioning experience. Monthly production capacity exceeds 20 sets.

After-sale service of   rubber process machine :

For most of the machines, the quality is guaranteed for one year since the date of shipment expert wearing parts, we supply the on-line service for all the machines, and also supply the spare parts all the time with cost price, for some complicated machine or plant, we can send our engineer overseas too.

If you are interested in   rubber process machine , please feel free to contact us, we will reply on you ASAP.
