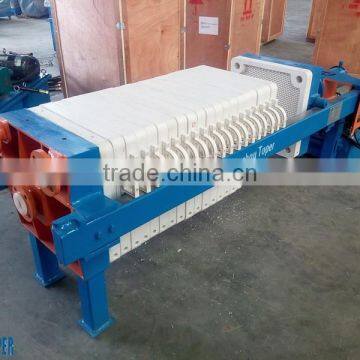

1.Brief introduction of Filter Press Machine For Sale:

Hydraulic compress filter press is the latest water treatment equipment of the our company. It is made of durable material and thus can be used for high capacity filtering consistently and continuously.

2.Application industry of Filter Press Machine For Sale:

Widely used in mining ,metallurgy,petroleum,chemical ,environmental protection,electroplating ,food ,pharmacy,oil,biological,beverage,textiles,printing and dreing,papermaking,inorganic salt,coal washing ,sewage treatment,ceramics,leather such industries.

3.All types technical parameters of Filter Press Machine For Sale:

4.Hydraulic station of Filter Press Machine For Sale:

4.11Hydraulic unit, carbon steel bending welding and sealing.
A.Air filters external oil pumps of Shanghai Dazhong brand, with a better cooling effect and easy maintenance
B.Hydraulic valves of Shanghai Huadao brand.
C.High pressure oil pipe (36Mpa, 1.5m) and low pressure oil pipe (22.4Mpa, 2m), China standard soft connection.

4.12 Hydraulic cylinder, welded using material 27SiMn seamless steel pipe, Inner diameter and stroke is Φ120X400, pressing pressure is 18-20MPa.

4.13 Piston rod, Medium-frequency hardening with 45# steel, the surface hardness can be HRC48-50, and there is a protect cover outside.

5.Main Beam of Filter Press Machine For Sale:

Material of high quality carbon steel Q345 ( Length & width & thickness, 120×60×6mm rectangular tube), box welded structural design, automatic submerged arc welding process with weld smooth and beautiful. Still processed with sand blasting to remove rust and oxide skin, then painted by epoxy primer to get higher intensity and corrosion resistance, together with last protection of acrylic polyester anti-corrosion paint spraying.

6.More photos of Filter Press Machine For Sale:

Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, recessed filter press, belt filter press, centrifuge, etc. All these products are widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, food, alcohol, inorganic salt, coal washing, and waste water processing industry.

All of Toper's products:

1. Program-controlled automatic filter press

2. Membrane filter press

3. Hydraulic compress filter press

4. Mechanical compress filter press

5. Jack filter press

6. Cast iron plate and frame/chamber filter press

7. Stainless steel plate and frame filter press

8. Round plate filter press

9. Cotton cake filter press

10. Cardboard filter press

11. DY belt filter press

12. DYX high pressure belt filter press

13. DNY rotary drum thickning/dehydrating belt filter press

14. Triple-belt thickning and dehydrating filter press

15. SS type three-foot upper discharge centrifuge

16. SD type three-foot and filter bag hoist discharge centrifuge

17. PD type filter bag hoist discharge centrifuge

18. Centrifuge of up discharge, three foot, clean series SSB

19. SX type manual top discharge centrifuge

20. PS type manual top discharge centrifuge

21. SGZ type automatic scraper bottom discharge centrifuge

22. PGZ type scarper bottom discharge centrifuge

23. LW series decanter centrifuge

24. Tubular centrifuge

25. Multi-layer stainless steel frame filter

26. Bag filter

27. Diatomite filter

28. Filter late

29. Filter cloth

30. Vacuum disc filter

Reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.

How to order filter press:

1.Select the model,plate and fram material,pressing mode and filtering form by considering the filter press introduction and parameters.

2.According to your products,select open flow and close flow ,washable or non-washable,and specify the conditions in the contract.

3.The unit is provided without pump.To order the unit complete pumps,state it in the contract.

4.Our company can supply non-standard model to meet your special demands.
