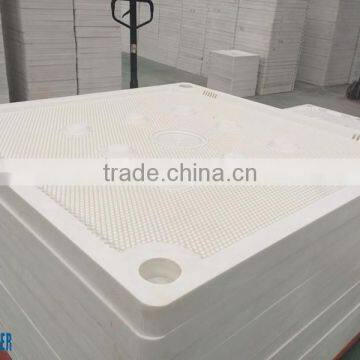

PP filter plate used with filter press used for wastewater treatment in solid liquid separation process

PP filter plate used with filter press used for wastewater treatment in solid liquid separation process

1.Toper PP Filter Plate Introduction :

Our Toper have model 450*450,630*630,870*870,1000*1000,1250*1250 and 1500*1500 enhanced polypropylene filter plates.

According to feeding style, it can be classified:

Middle feeding, corner feeding and upper middle feeding, etc.

Users can select filter plates in different materials according to their requirements in production process.

2.Advantage of PP filter plate:

1. Excellent chemical stability

As the traditional rubber filter plate material for the rubber. The rubber and its products in the processing, storage and use of the process, due to the combined effect of internal and external factors and can easily lead to the physical and chemical properties of rubber and mechanical properties of the gradual deterioration of the final loss of use value, that is, rubber aging. In general, the filter material contains a certain pH and temperature, which will aggravate the aging of the rubber filter plate. In contrast, PP material performance is very stable, so that service life increased by at least 50%.

2. Excellent service life

Rubber filter plate, due to the role of rubber in the external force, it is prone to aging. The PP diaphragm plate, due to the stability of PP and our unique heat technology, so that our diaphragm filter greatly improve the service life, can be used continuously for more than 10,000 times.

Excellent drainage

My company's diaphragm filter plate in the overall design and compared to the ordinary rubber filter plate has improved quality. The patent is through my company's technical staff for many years with great concentration, the use of a unique bump design. Filter plate bump layout is reasonable, good water filter, drainage flow. In addition, due to the hydrophobicity of the PP material, it is ensured that the drainage efficiency is increased by 45% during the filtration process.

3. Excellent filtration efficiency

Our patent compared with the traditional rubber filter plate, not only in the material and filter can have a prominent performance in the press pressure also has a significant increase. Our polypropylene diaphragm filter press pressure can reach 1.6MPa, far better than the rubber filter plate. This ensures that the moisture content of the lowest, to a large extent for the subsequent treatment has brought convenience. To carbide slag as an example, our filter can make the cake moisture content dropped to about 26%.

4. Superior security

I produced the PP filter plate, using a unique heat technology, so that the overall filter plate integration, seamless. Compared with the traditional rubber filter plate, can greatly avoid the generation of differential pressure to ensure the safety of use. In general, with the increase in filtration pressure, the risk of differential pressure at the end of each filtration cycle is also increasing rapidly, and our patented technology advocates low pressure filtration, high pressure crushing, which greatly avoids differential pressure The generation.

5. Other performance

Compared with the rubber filter plate, because the PP filter plate with polypropylene material, it can effectively reduce the external heat radiation and save energy, and the filter plate lighter weight, so that the filter parts handling operation easier, Machine weight reduction, greatly reducing the labor intensity.

3.Toper Producation Capacity:

5.Production Machine:

6.Round Filter Plate:

7.Chamber Filter Plate:

8.Cotton Cake Filter Plate:

9.Membrane Filter Plate:

Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.

Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, recessed filter press, belt filter press, centrifuge, etc. All these products are widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, food, alcohol, inorganic salt, coal washing, and waste water processing industry.

Our products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile, Bolivia, Indonesia, Malaysia, Israel, Iran, Egypt, Turkey, Romania, Sweden, Finland, etc. about more than 50 countries and area. We have won good reputation depends on our best qualified products and after-sales service. Warmly welcome new and old friends all over the world to come our company for good cooperation with each other.

FILTER PRESS SERIES:

Filter presses can be divided into plate and frame type and are used for solidliquid separation of various suspending liquid in intermittent pressure filtration. Filter plates are pressed by pressing devices and suspending liquid is pumped into the filter chamber. Solid particles and separated through filter cloth. The products are simple in structure but good in separating effects, convenient in use, and widely applicable to mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, foodstuff, alcohol, inorganic salt, coal washing, dyestuff and sewage treatment industries.
